Table idempiere9.adempiere.ad_wf_process
Actual Workflow Process Instance

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_process_id numeric 10
ad_wf_activity.ad_wf_process_id adwfprocess_adwfactivity C
ad_wf_eventaudit.ad_wf_process_id adwfprocess_adwfeventaudit R
ad_wf_process.ad_wf_process_id adwfprocess_adwfprocess R
ad_wf_processdata.ad_wf_process_id adwfproccess_adwfprocessdata C
ad_wf_process.ad_wf_process_id adwfprocess_adwfprocess R
Actual Workflow Process Instance
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_workflow_id numeric 10
ad_workflow.ad_workflow_id adworkflow_adwfprocess C
Workflow or combination of tasks
ad_wf_responsible_id numeric 10
ad_wf_responsible.ad_wf_responsible_id adwfresponsible_adwfprocess R
Responsible for Workflow Execution
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adwfprocess R
User within the system - Internal or Business Partner Contact
wfstate bpchar 2 State of the execution of the workflow
ad_message_id numeric 10  √  null
ad_message.ad_message_id admessage_adwfprocess R
System Message
processing bpchar 1  √  null Process Now
processed bpchar 1 'N'::bpchar The document has been processed
textmsg varchar 2000  √  null Text Message
ad_table_id numeric 10
ad_table.ad_table_id adtable_adwfprocess R
Database Table information
record_id numeric 10 Direct internal record ID
priority numeric 10  √  null Indicates if this request is of a high, medium or low priority.
ad_wf_process_uu varchar 36  √  NULL::character varying AD_WF_Process_UU

Table contained 10 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_process_id Primary key Asc ad_wf_process_pkey
ad_wf_process_uu Must be unique Asc ad_wf_process_uu_idx
ad_workflow_id Performance Asc ad_wf_process_workflow

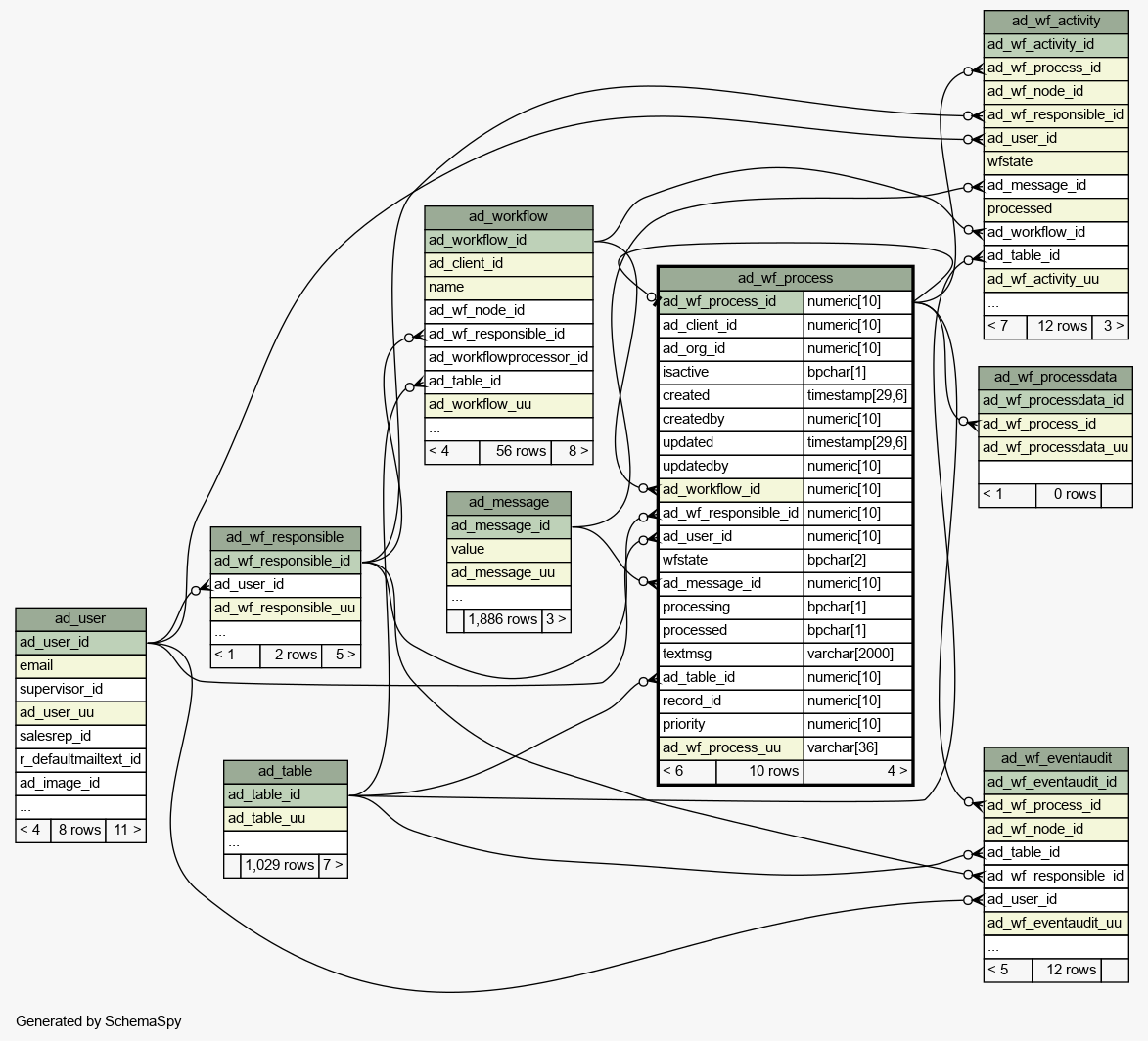

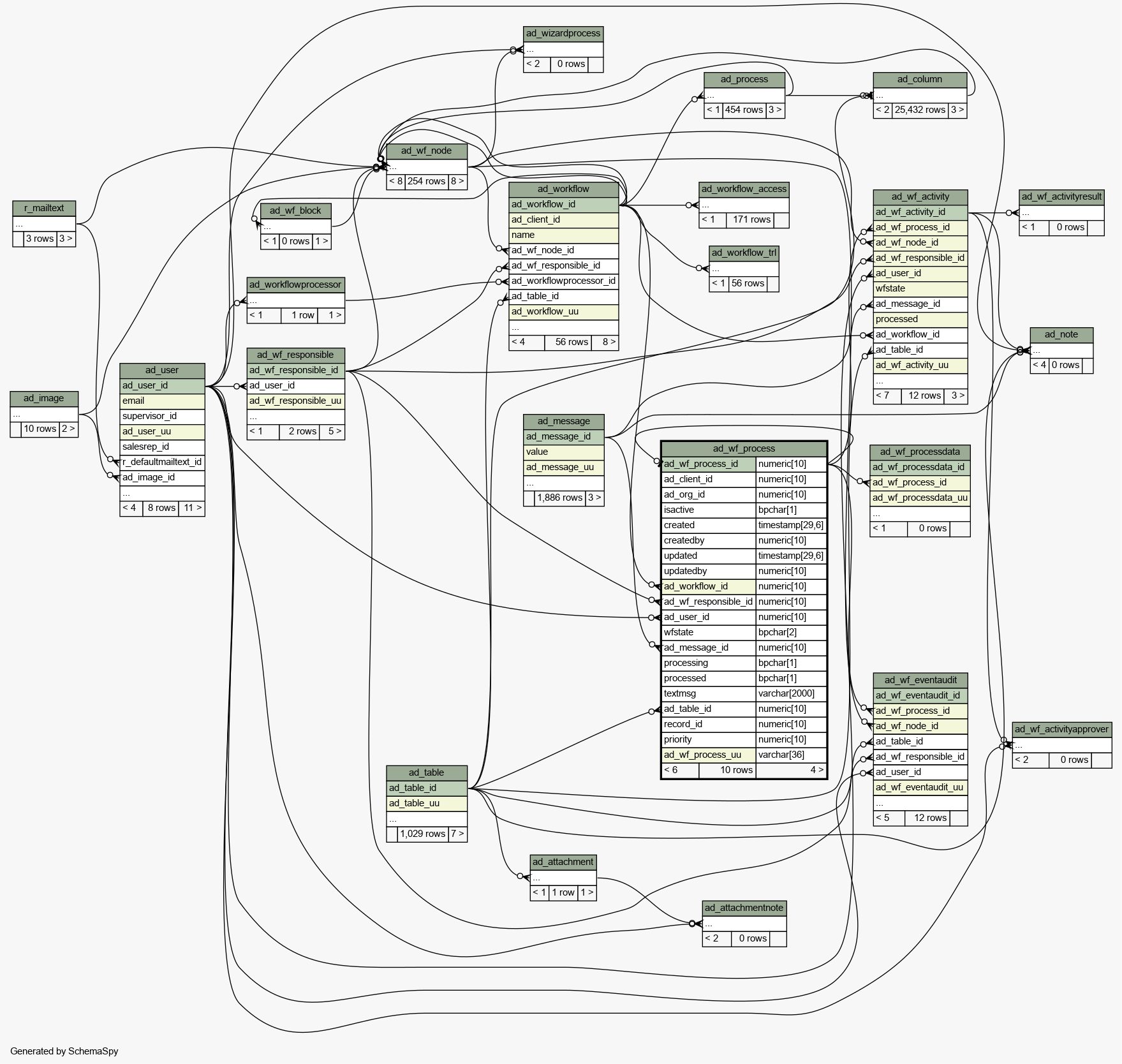

Close relationships  within of separation:
