Table idempiere9.adempiere.ad_wf_responsible
Responsible for Workflow Execution

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_responsible_id numeric 10
ad_wf_activity.ad_wf_responsible_id adwfresponsible_adwfactivity N
ad_wf_eventaudit.ad_wf_responsible_id adwfresponsib_adwfeventaudit R
ad_wf_node.ad_wf_responsible_id adwfresponsible_adwfnode R
ad_wf_process.ad_wf_responsible_id adwfresponsible_adwfprocess R
ad_workflow.ad_wf_responsible_id adwfresponsible_adworkflow R
Responsible for Workflow Execution
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
responsibletype bpchar 1 Type of the Responsibility for a workflow
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adwfresponsible R
User within the system - Internal or Business Partner Contact
ad_role_id numeric 10  √  null Responsibility Role
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
ad_wf_responsible_uu varchar 36  √  NULL::character varying AD_WF_Responsible_UU

Table contained 2 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_responsible_id Primary key Asc ad_wf_responsible_pkey
ad_wf_responsible_uu Must be unique Asc ad_wf_responsible_uu_idx

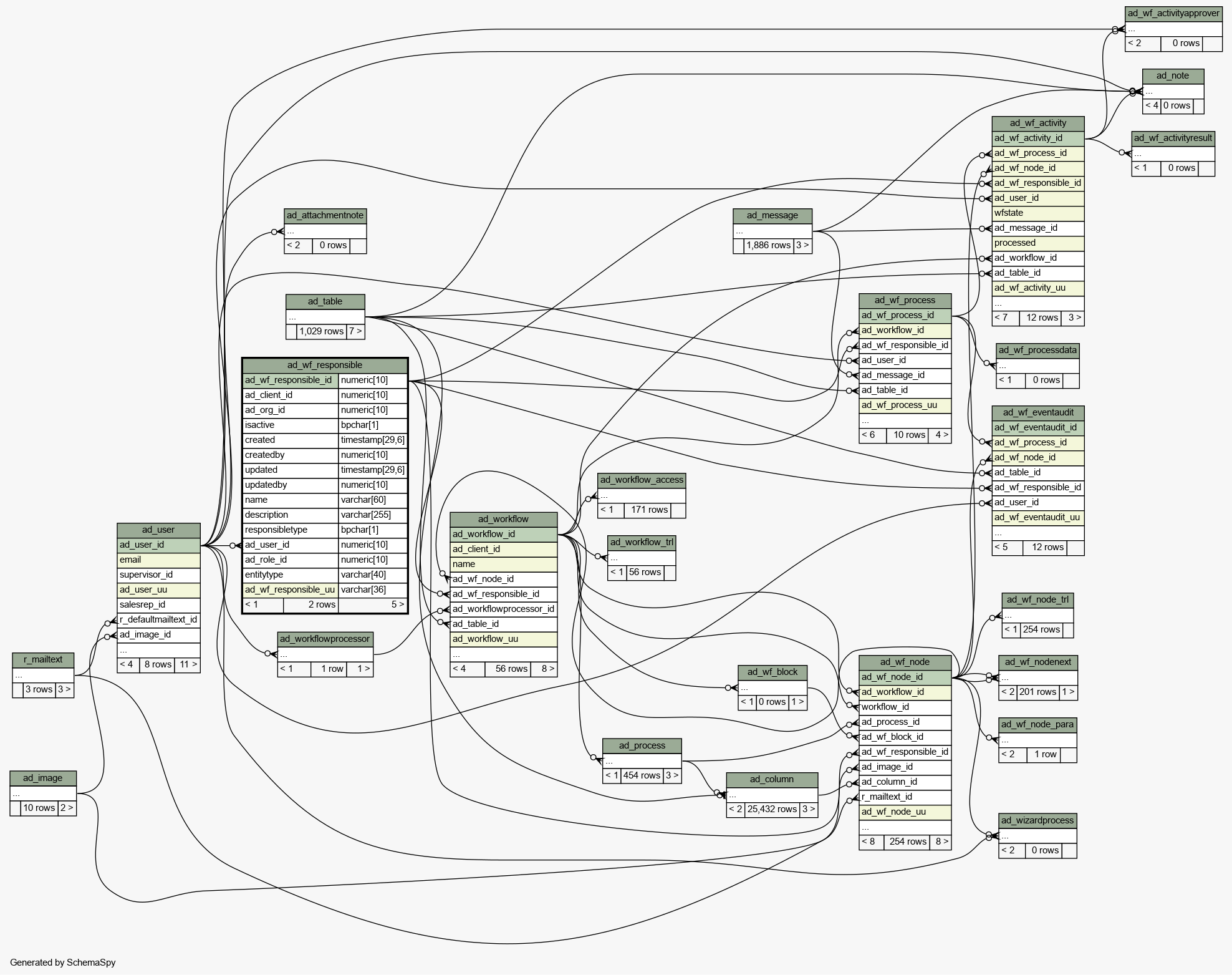

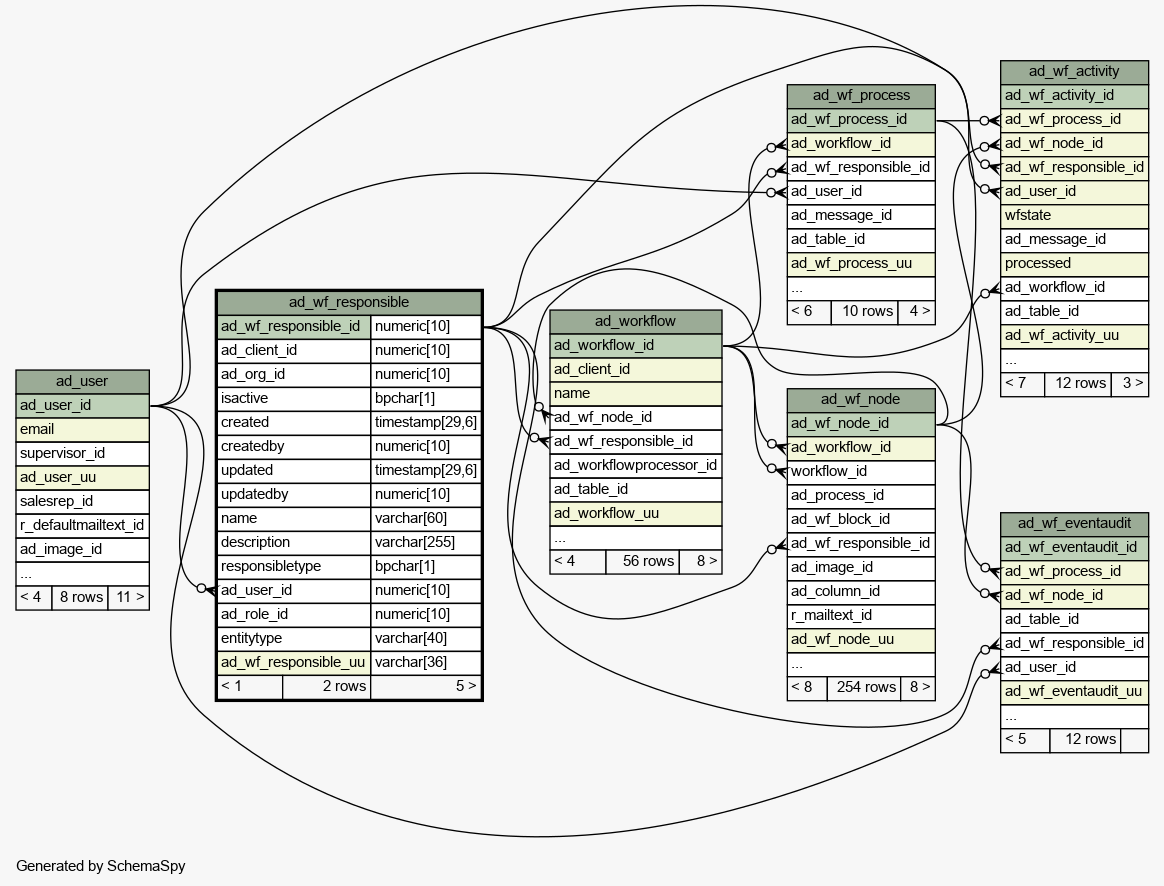

Close relationships  within of separation:
