Table idempiere9.adempiere.ad_wf_eventaudit
Workflow Process Activity Event Audit Information

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_eventaudit_id numeric 10 Workflow Process Activity Event Audit Information
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
eventtype bpchar 2 Type of Event
wfstate bpchar 2 State of the execution of the workflow
ad_wf_process_id numeric 10
ad_wf_process.ad_wf_process_id adwfprocess_adwfeventaudit R
Actual Workflow Process Instance
ad_wf_node_id numeric 10
ad_wf_node.ad_wf_node_id adwfnode_adwfeventaudit R
Workflow Node (activity), step or process
ad_table_id numeric 10
ad_table.ad_table_id adtable_adwfeventaudit R
Database Table information
record_id numeric 10 Direct internal record ID
ad_wf_responsible_id numeric 10
ad_wf_responsible.ad_wf_responsible_id adwfresponsib_adwfeventaudit R
Responsible for Workflow Execution
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adwfeventaudit R
User within the system - Internal or Business Partner Contact
elapsedtimems numeric 0 Elapsed Time in milli seconds
attributename varchar 60  √  null Name of the Attribute
oldvalue varchar 2000  √  null The old file data
newvalue varchar 2000  √  null New field value
description varchar 255  √  null Optional short description of the record
textmsg varchar 2000  √  null Text Message
ad_wf_eventaudit_uu varchar 36  √  NULL::character varying AD_WF_EventAudit_UU

Table contained 12 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_eventaudit_id Primary key Asc ad_wf_eventaudit_pkey
ad_wf_process_id + ad_wf_node_id Performance Asc/Asc ad_wf_eventaudit_parent
ad_wf_eventaudit_uu Must be unique Asc ad_wf_eventaudit_uu_idx

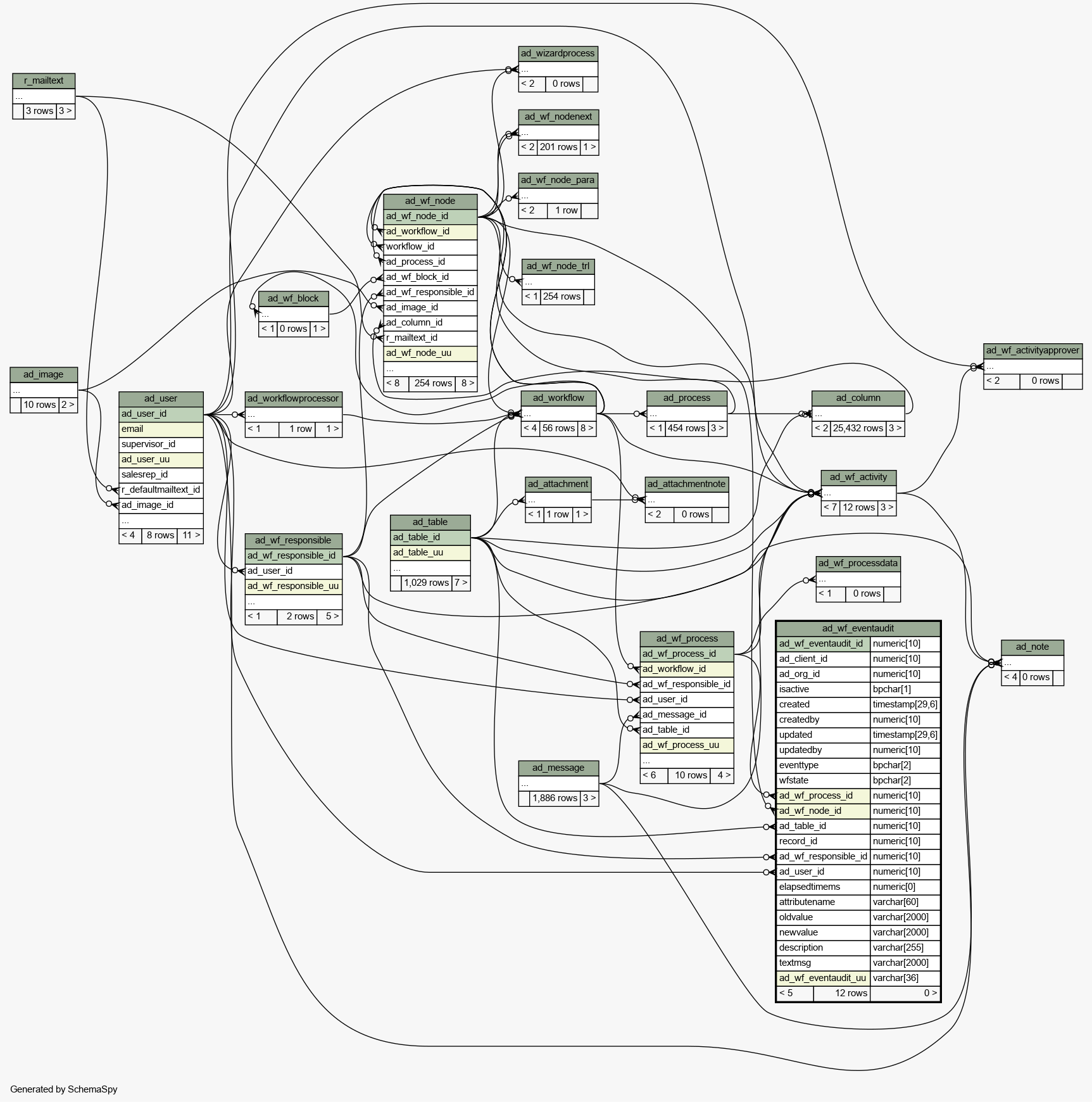

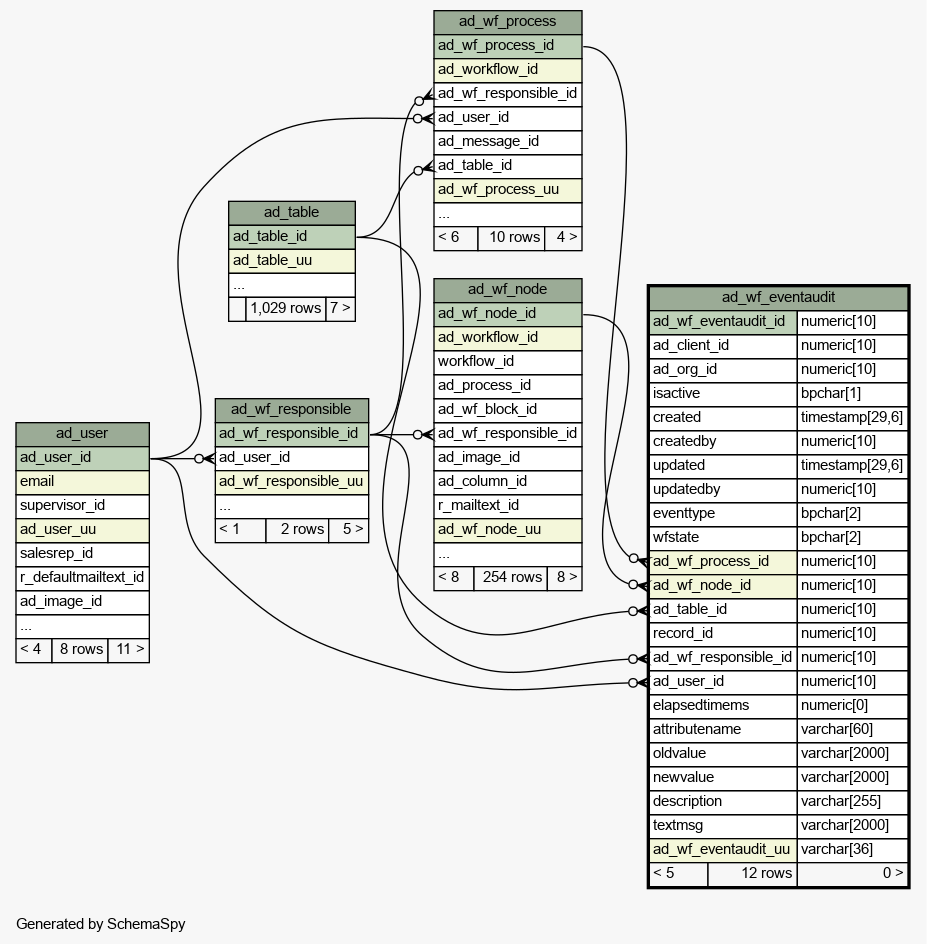

Close relationships  within of separation:
