Table idempiere9.adempiere.ad_wf_activity
Workflow Activity

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_activity_id numeric 10
ad_note.ad_wf_activity_id adwfactivity_adnote R
ad_wf_activityapprover.ad_wf_activity_id adwfactivity_adwfactivityappro C
ad_wf_activityresult.ad_wf_activity_id adwfactivity_adwfactresult C
Workflow Activity
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_wf_process_id numeric 10
ad_wf_process.ad_wf_process_id adwfprocess_adwfactivity C
Actual Workflow Process Instance
ad_wf_node_id numeric 10
ad_wf_node.ad_wf_node_id adwfnode_adwfactivity C
Workflow Node (activity), step or process
ad_wf_responsible_id numeric 10  √  null
ad_wf_responsible.ad_wf_responsible_id adwfresponsible_adwfactivity N
Responsible for Workflow Execution
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adwfactivity N
User within the system - Internal or Business Partner Contact
wfstate bpchar 2 State of the execution of the workflow
ad_message_id numeric 10  √  null
ad_message.ad_message_id admessage_adwfactivity R
System Message
processing bpchar 1  √  null Process Now
processed bpchar 1 'N'::bpchar The document has been processed
textmsg varchar 2000  √  null Text Message
ad_workflow_id numeric 10
ad_workflow.ad_workflow_id adworkflow_adwfactivity R
Workflow or combination of tasks
ad_table_id numeric 10
ad_table.ad_table_id adtable_adwfactivity R
Database Table information
record_id numeric 10 Direct internal record ID
priority numeric 10  √  null Indicates if this request is of a high, medium or low priority.
endwaittime timestamp 29,6  √  null End of sleep time
datelastalert timestamp 29,6  √  null Date when last alert were sent
dynprioritystart numeric 10  √  null Starting priority before changed dynamically
ad_wf_activity_uu varchar 36  √  NULL::character varying AD_WF_Activity_UU

Table contained 12 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_activity_id Primary key Asc ad_wf_activity_pkey
ad_wf_process_id + ad_wf_node_id Performance Asc/Asc ad_wf_activity_item
wfstate + processed Performance Asc/Asc ad_wf_activity_status
ad_wf_activity_uu Must be unique Asc ad_wf_activity_uu_idx
ad_wf_responsible_id + ad_user_id Performance Asc/Asc ad_wf_activity_who

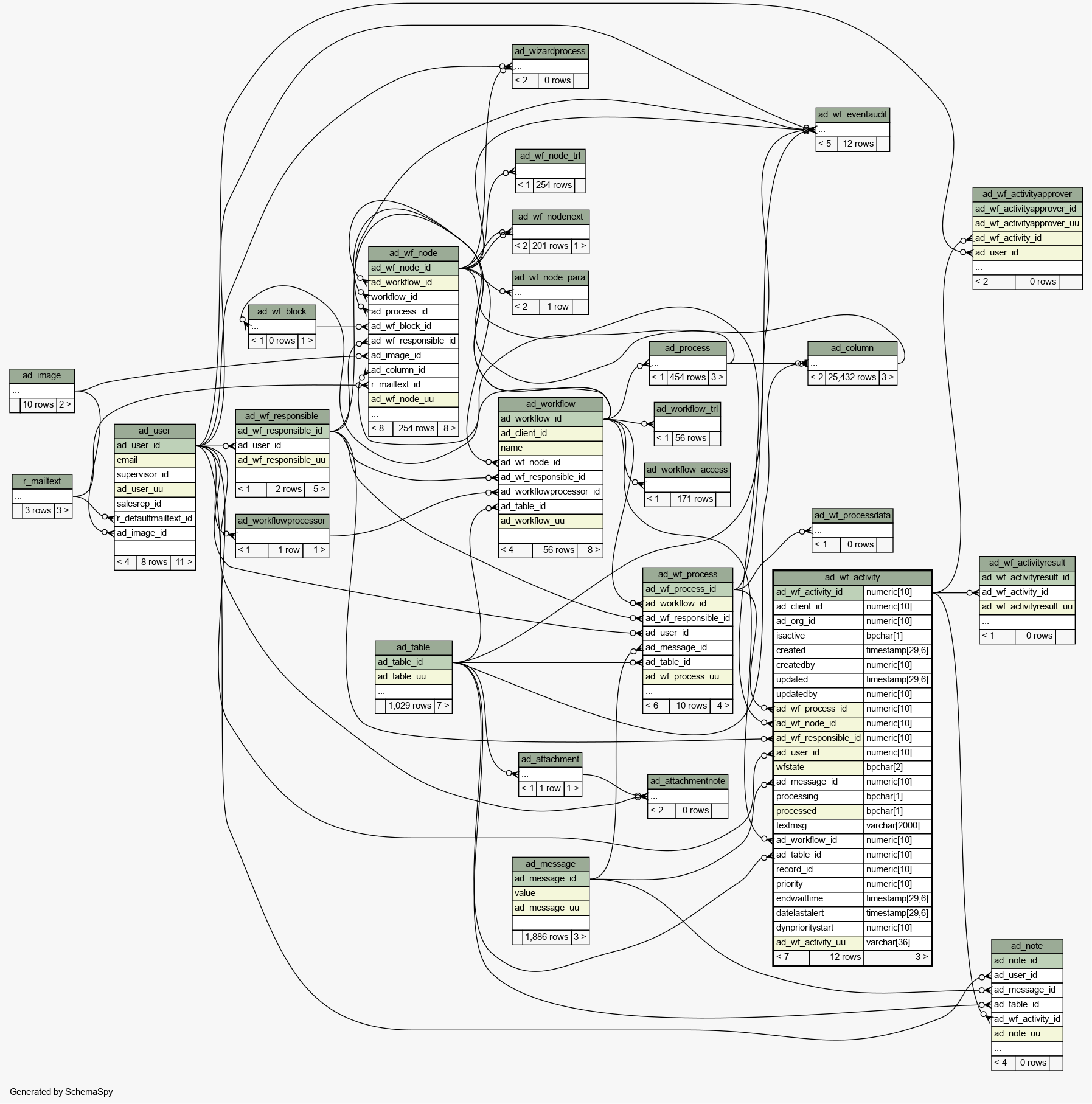

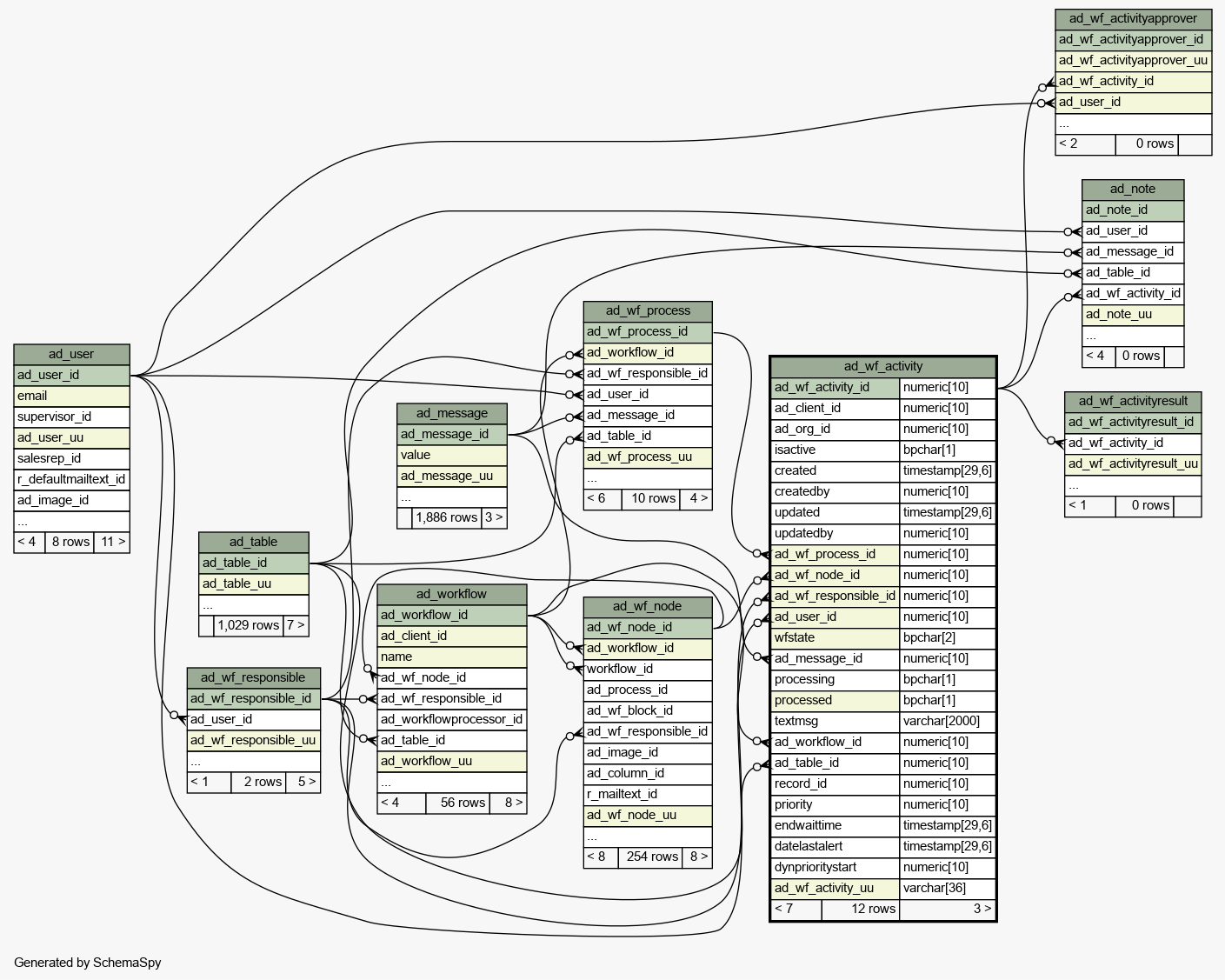

Close relationships  within of separation:
