Table idempiere9.adempiere.ad_note
System Notice

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_note_id numeric 10 System Notice
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_adnote R
User within the system - Internal or Business Partner Contact
ad_message_id numeric 10
ad_message.ad_message_id admessage_adnote R
System Message
reference varchar 255  √  null Reference for this record
ad_table_id numeric 10  √  null
ad_table.ad_table_id adtable_adnote R
Database Table information
record_id numeric 10  √  null Direct internal record ID
processed bpchar 1  √  'N'::bpchar The document has been processed
processing bpchar 1  √  null Process Now
description varchar 255  √  null Optional short description of the record
ad_wf_activity_id numeric 10  √  null
ad_wf_activity.ad_wf_activity_id adwfactivity_adnote R
Workflow Activity
textmsg varchar 2000  √  null Text Message
ad_note_uu varchar 36  √  NULL::character varying AD_Note_UU
ad_broadcastmessage_id numeric 10  √  NULL::numeric Broadcast Message

Table contained 0 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_note_id Primary key Asc ad_note_pkey
ad_note_id Must be unique Asc ad_note_key
ad_note_uu Must be unique Asc ad_note_uu_idx

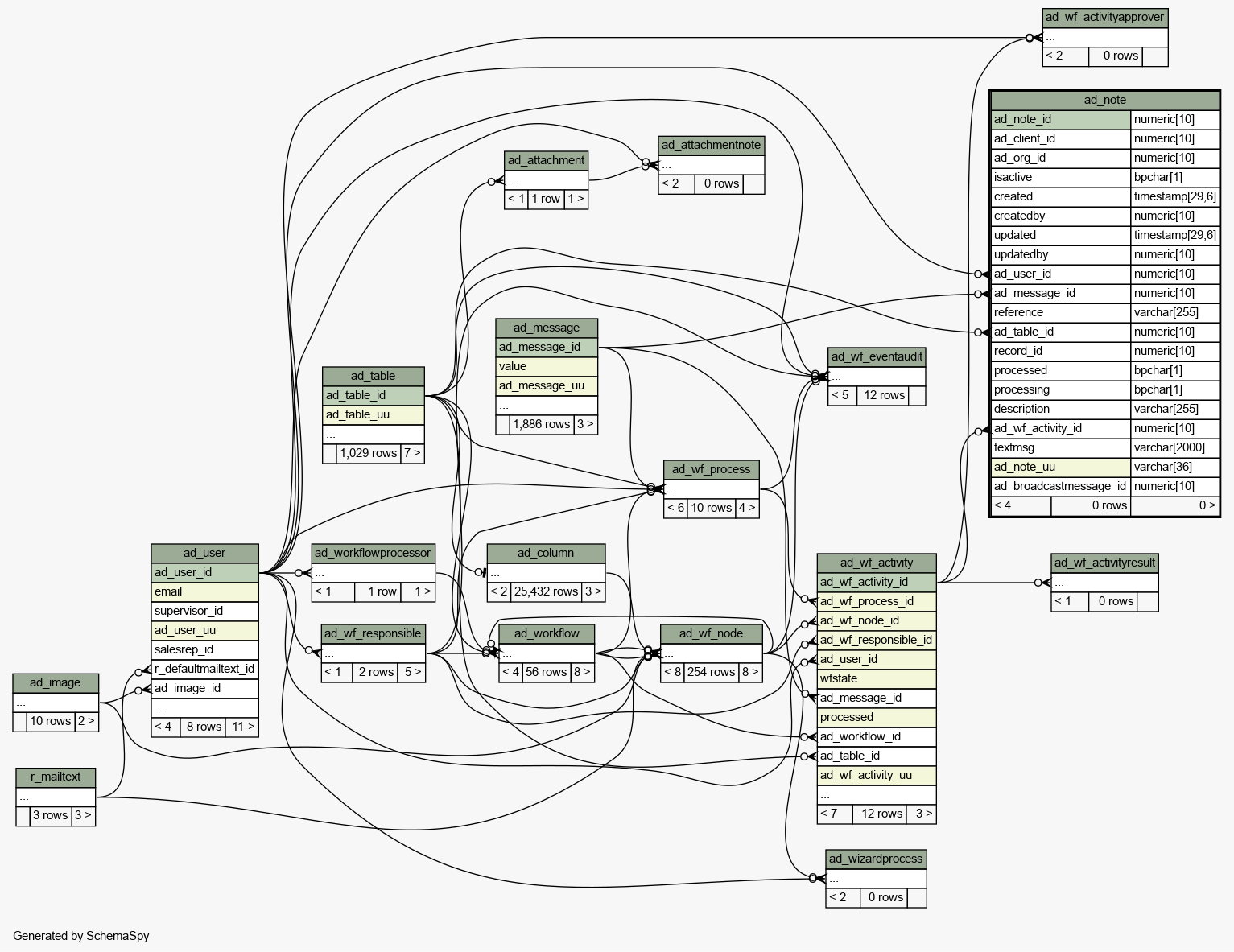

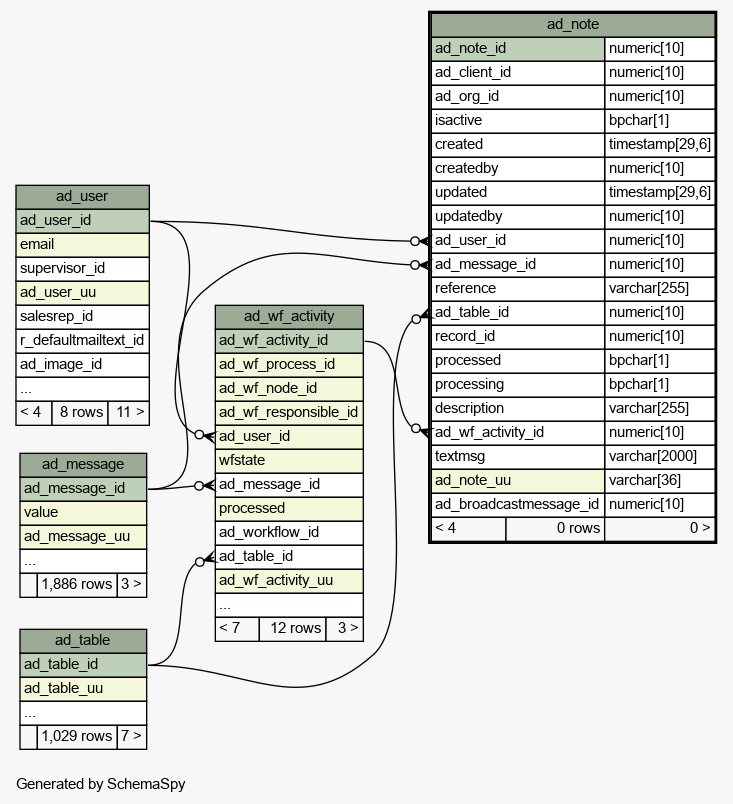

Close relationships  within of separation:
