Table idempiere9.adempiere.ad_wf_activityresult
Result of the Workflow Process Activity

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_activityresult_id numeric 10 Result of the Workflow Process Activity
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_wf_activity_id numeric 10
ad_wf_activity.ad_wf_activity_id adwfactivity_adwfactresult C
Workflow Activity
attributename varchar 60 Name of the Attribute
attributevalue varchar 2000  √  null Value of the Attribute
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
ad_wf_activityresult_uu varchar 36  √  NULL::character varying AD_WF_ActivityResult_UU

Table contained 0 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_activityresult_id Primary key Asc ad_wf_activityresult_pkey
ad_wf_activityresult_uu Must be unique Asc ad_wf_activityresult_uu_idx

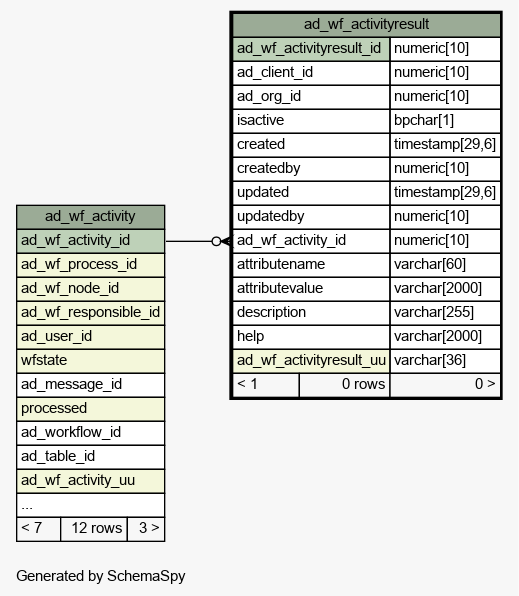

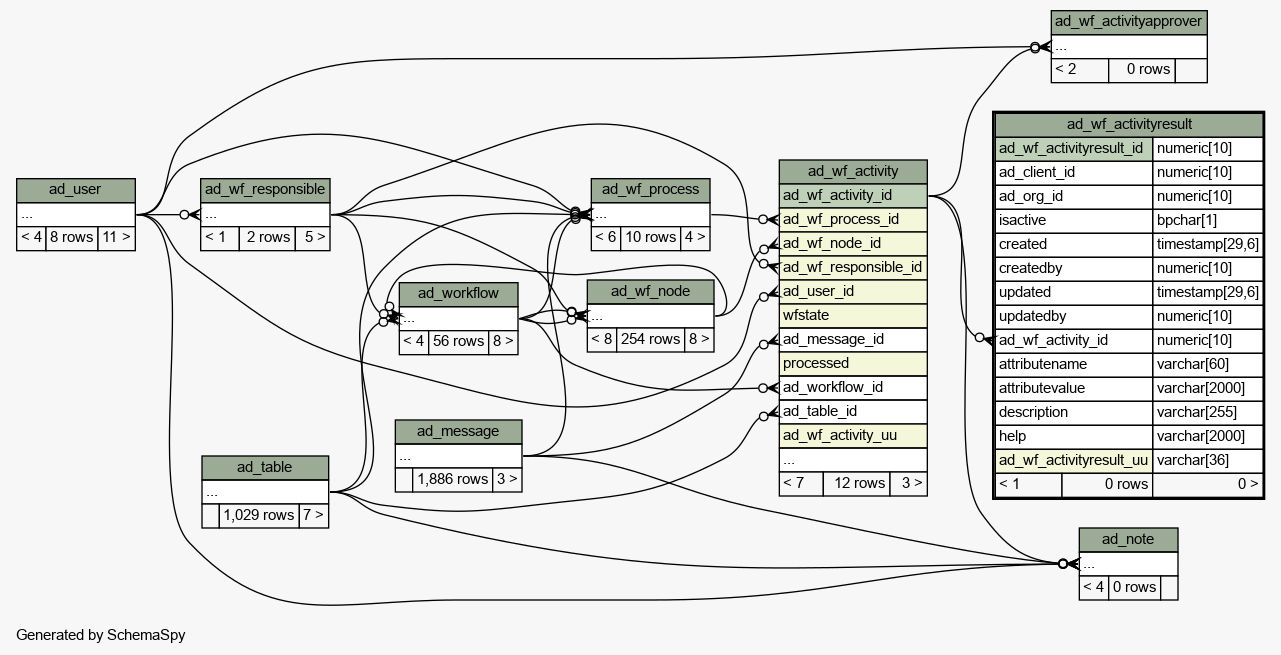

Close relationships  within of separation:
