Table idempiere9.adempiere.ad_window
Data entry or display window

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_window_id numeric 10
ad_issue.ad_window_id adwindow_adissue N
ad_menu.ad_window_id adwindow_admenu R
ad_recentitem.ad_window_id adwindow_adrecentitem C
ad_table.ad_window_id ad_window_table N
ad_table.po_window_id adwindowpo_adtable R
Data entry or display window
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
windowtype bpchar 1  √  null Type or classification of a Window
issotrx bpchar 1 'Y'::bpchar This is a Sales Transaction
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
processing bpchar 1  √  null Process Now
ad_image_id numeric 10  √  null
ad_image.ad_image_id adimage_adwindow R
Image or Icon
ad_color_id numeric 10  √  null
ad_color.ad_color_id adcolor_adwindow R
Color for backgrounds or indicators
isdefault bpchar 1 'N'::bpchar Default value
winheight numeric 10  √  null Window Height
winwidth numeric 10  √  null Window Width
isbetafunctionality bpchar 1 'N'::bpchar This functionality is considered Beta
ad_window_uu varchar 36  √  NULL::character varying AD_Window_UU
titlelogic varchar 255  √  NULL::character varying The result determines the title to be displayed for this window
predefinedcontextvariables varchar 4000  √  NULL::character varying Predefined context variables to inject when opening a menu entry or a window

Table contained 432 rows at 2021-12-25 14:56 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_window_id Primary key Asc ad_window_pkey
ad_client_id + name Must be unique Asc/Asc ad_window_name
ad_window_uu Must be unique Asc ad_window_uu_idx

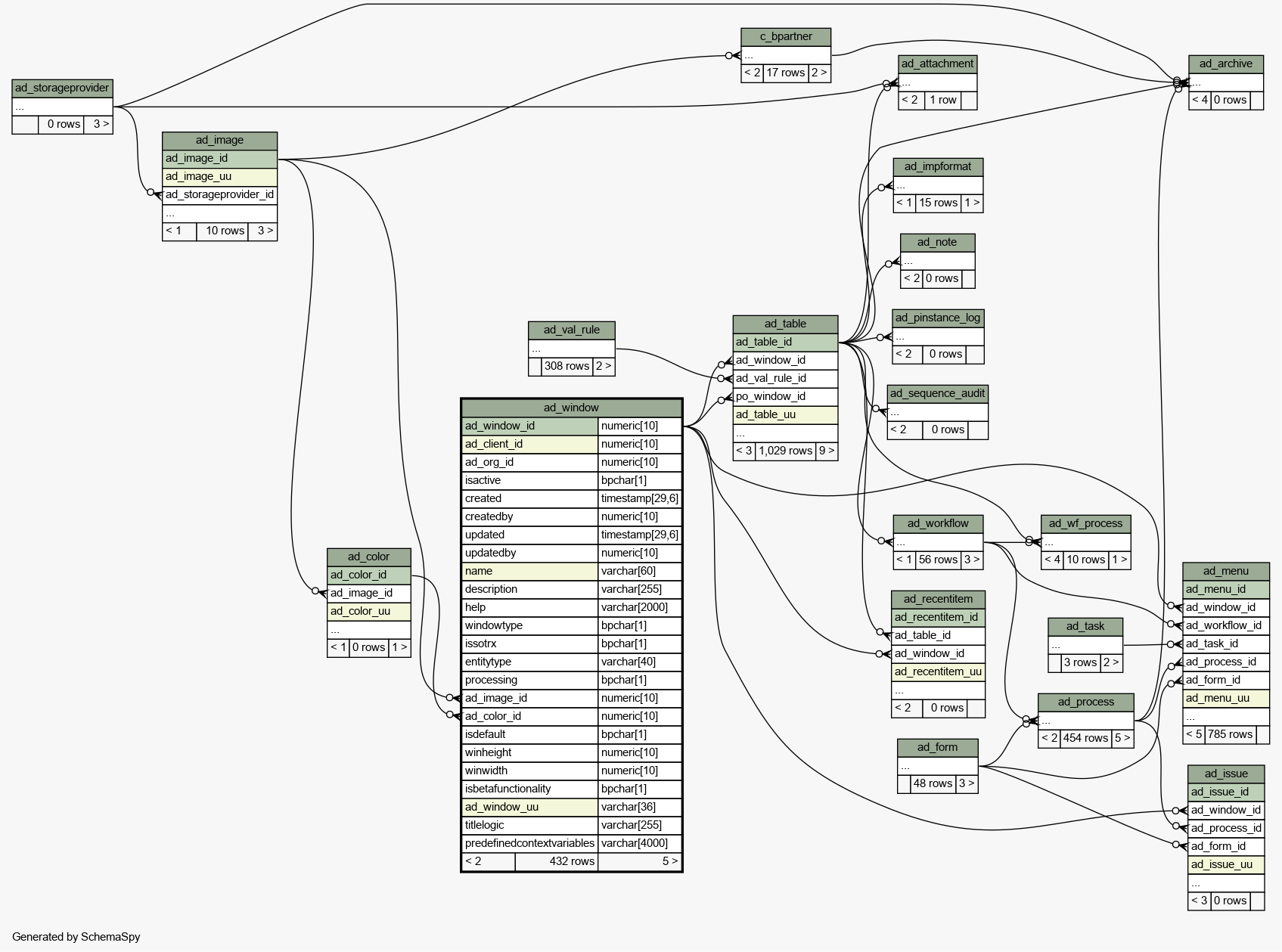

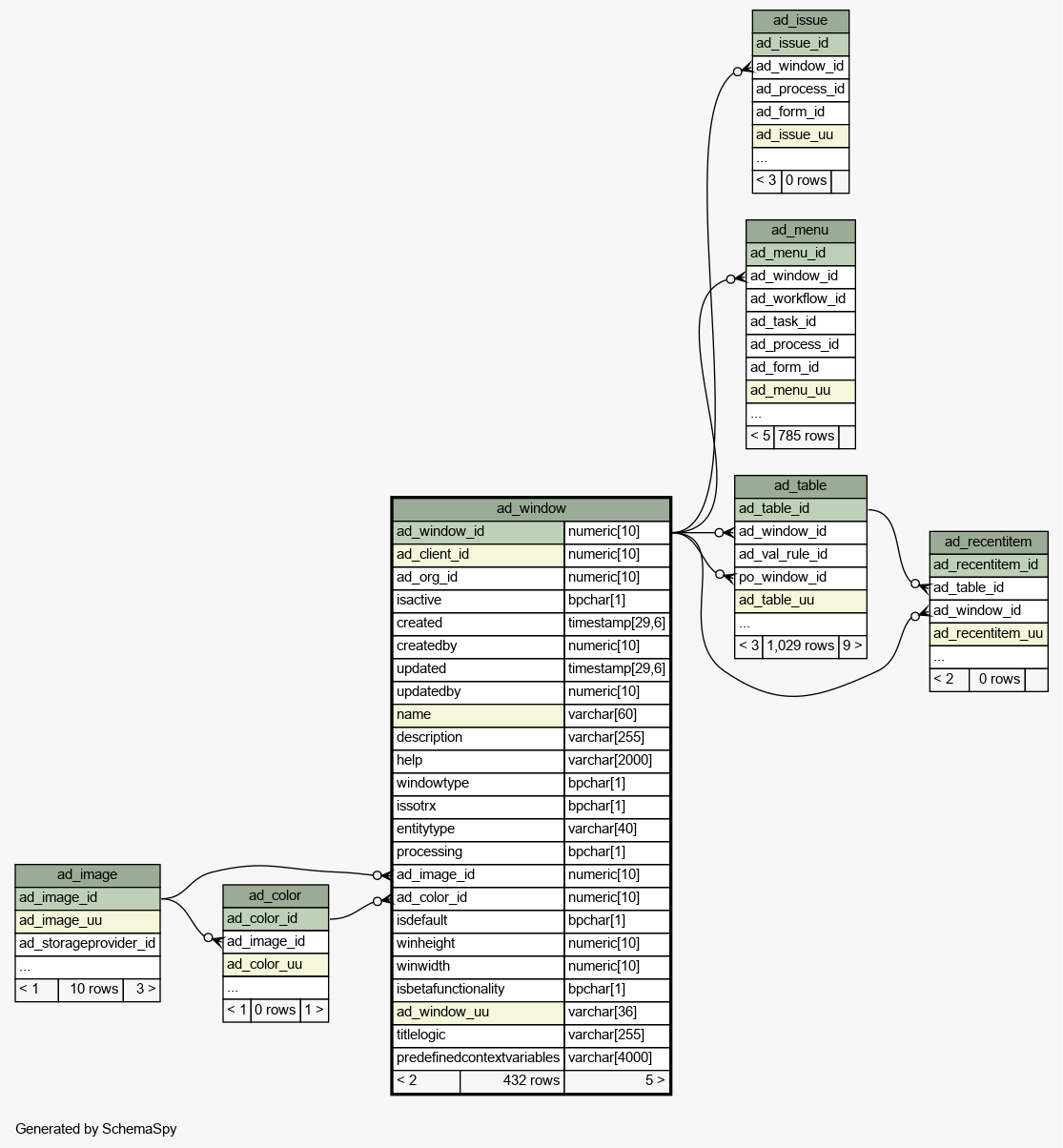

Close relationships  within of separation:
