Table idempiere9.adempiere.ad_val_rule
Dynamic Validation Rule

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_val_rule_id numeric 10
ad_process_para.ad_val_rule_id advalrule_ad_processpara R
ad_table.ad_val_rule_id ad_valrule_table R
Dynamic Validation Rule
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
type bpchar 1  √  null Type of Validation (SQL, Java Script, Java Language)
code varchar 2000  √  null Validation Code
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
ad_val_rule_uu varchar 36  √  NULL::character varying AD_Val_Rule_UU

Table contained 308 rows at 2021-12-25 14:56 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_val_rule_id Primary key Asc ad_val_rule_pkey
ad_val_rule_uu Must be unique Asc ad_val_rule_uu_idx

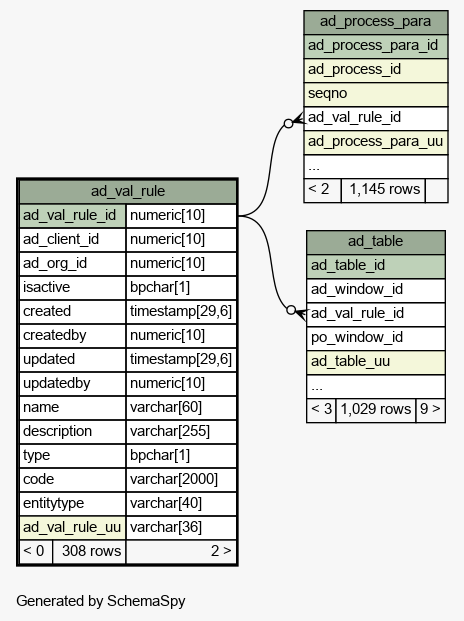

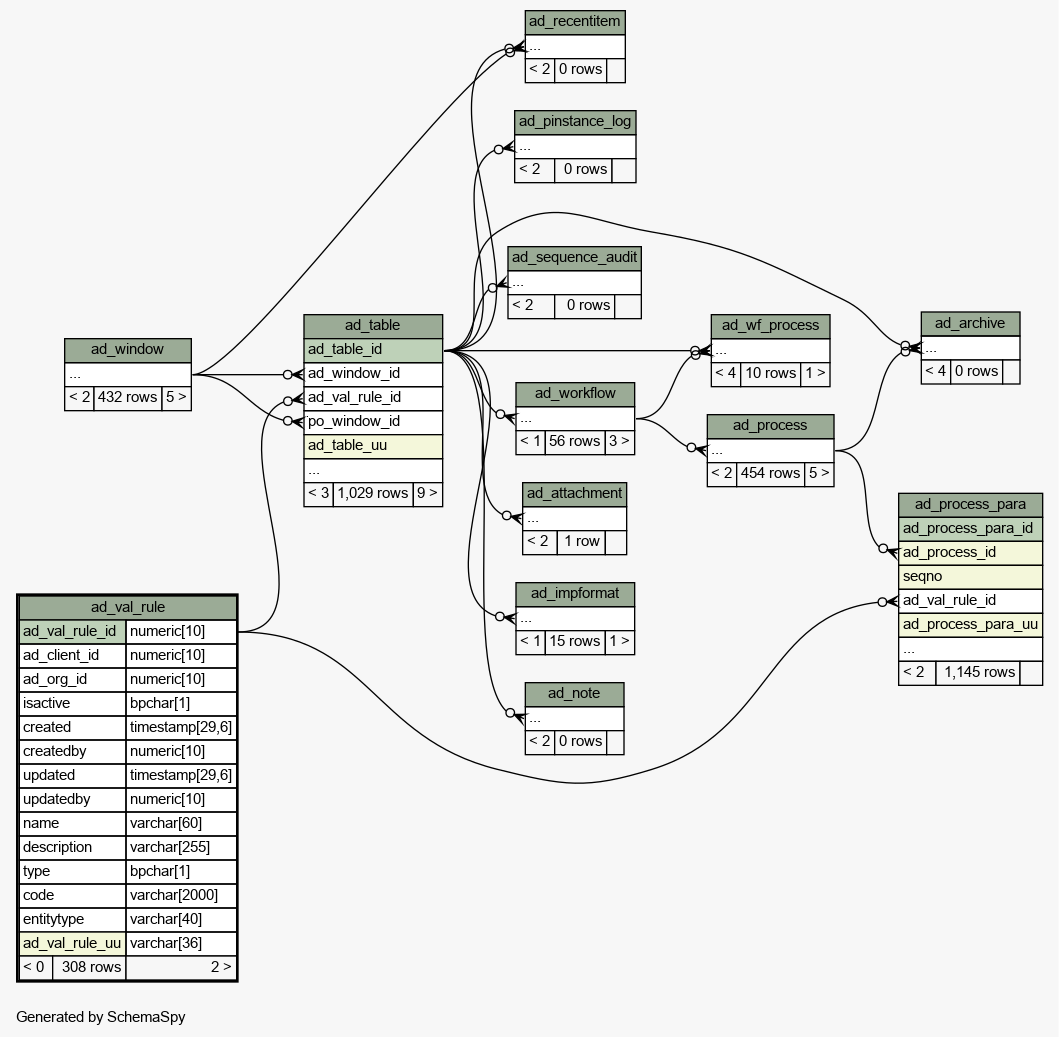

Close relationships  within of separation:
