Table idempiere9.adempiere.ad_impformat
Import Format

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_impformat_id numeric 10
ad_impformat_row.ad_impformat_id adimpformat_adimpformatrow C
Import Format
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
ad_table_id numeric 10
ad_table.ad_table_id adtable_adimpformat R
Database Table information
formattype bpchar 1 Format of the data
processing bpchar 1 Process Now
separatorchar varchar 1  √  NULL::character varying Separator Character
ad_impformat_uu varchar 36  √  NULL::character varying AD_ImpFormat_UU

Table contained 15 rows at 2021-12-25 14:56 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_impformat_id Primary key Asc ad_impformat_pkey
ad_client_id + name Must be unique Asc/Asc ad_impformat_name
ad_impformat_uu Must be unique Asc ad_impformat_uu_idx

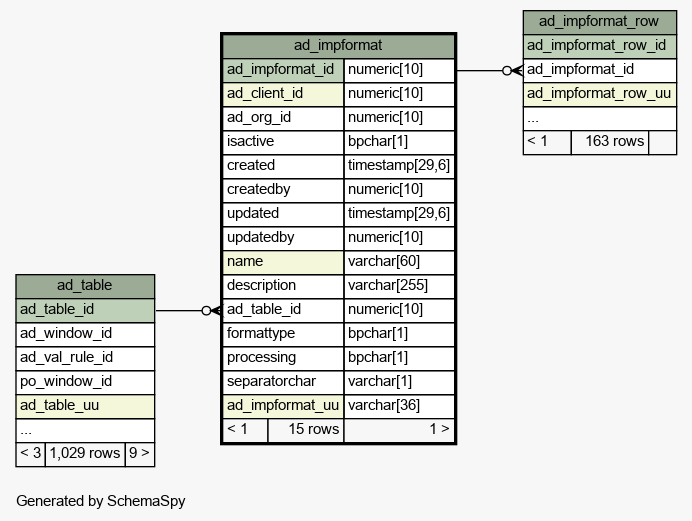

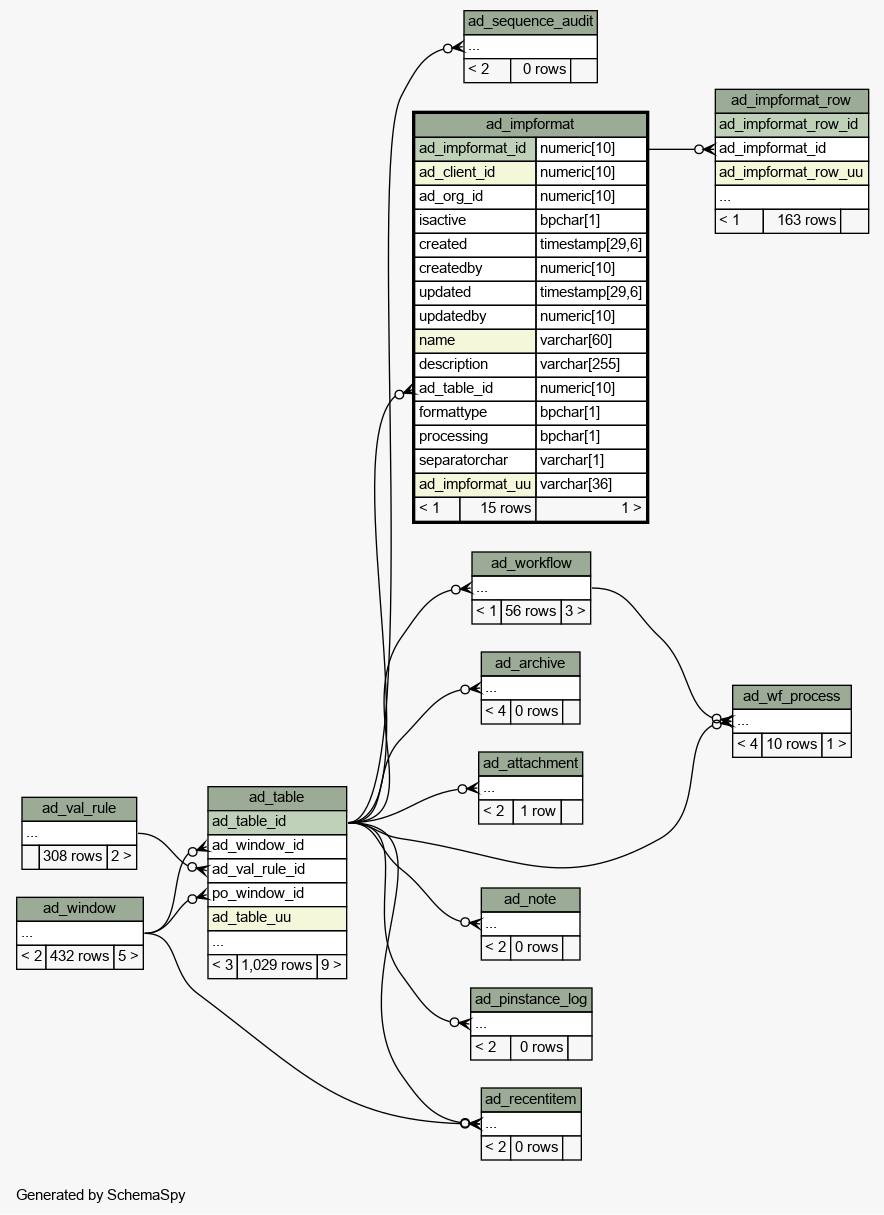

Close relationships  within of separation:
