Table idempiere9.adempiere.pa_measurecalc
Calculation method for measuring performance

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_measurecalc_id numeric 10
pa_measure.pa_measurecalc_id pameasurecalc_pameasure R
pa_ratioelement.pa_measurecalc_id pameasurecalc_paratioelement R
Calculation method for measuring performance
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
selectclause varchar 2000 SQL SELECT clause
whereclause varchar 2000 Fully qualified SQL WHERE clause
datecolumn varchar 60 Fully qualified date column
orgcolumn varchar 60  √  null Fully qualified Organization column (AD_Org_ID)
bpartnercolumn varchar 60  √  null Fully qualified Business Partner key column (C_BPartner_ID)
productcolumn varchar 60  √  null Fully qualified Product column (M_Product_ID)
ad_table_id numeric 10
ad_table.ad_table_id adtable_pameasurecalc R
Database Table information
keycolumn varchar 60 Key Column for Table
entitytype varchar 40 Dictionary Entity Type; Determines ownership and synchronization
pa_measurecalc_uu varchar 36  √  NULL::character varying PA_MeasureCalc_UU

Table contained 6 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_measurecalc_id Primary key Asc pa_measurecalc_pkey
pa_measurecalc_uu Must be unique Asc pa_measurecalc_uu_idx

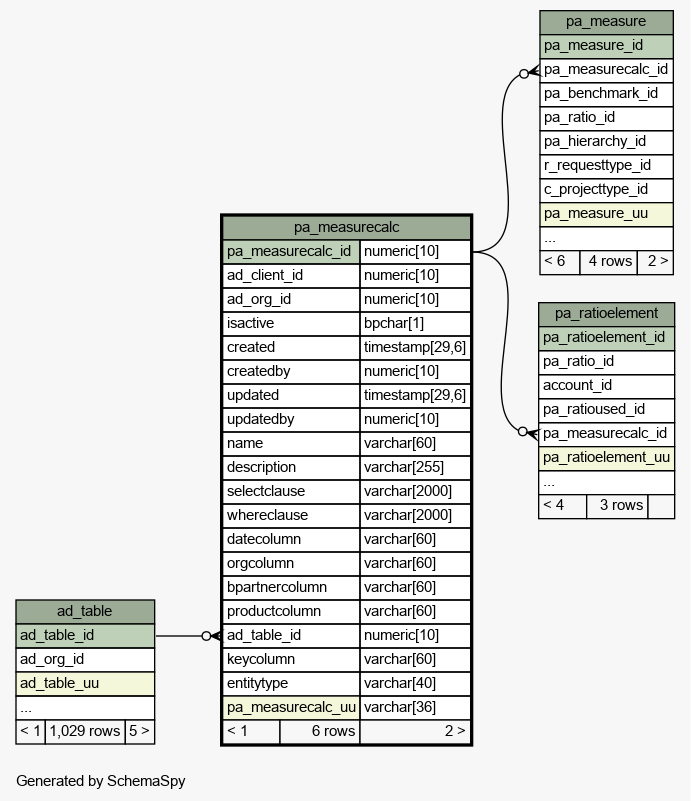

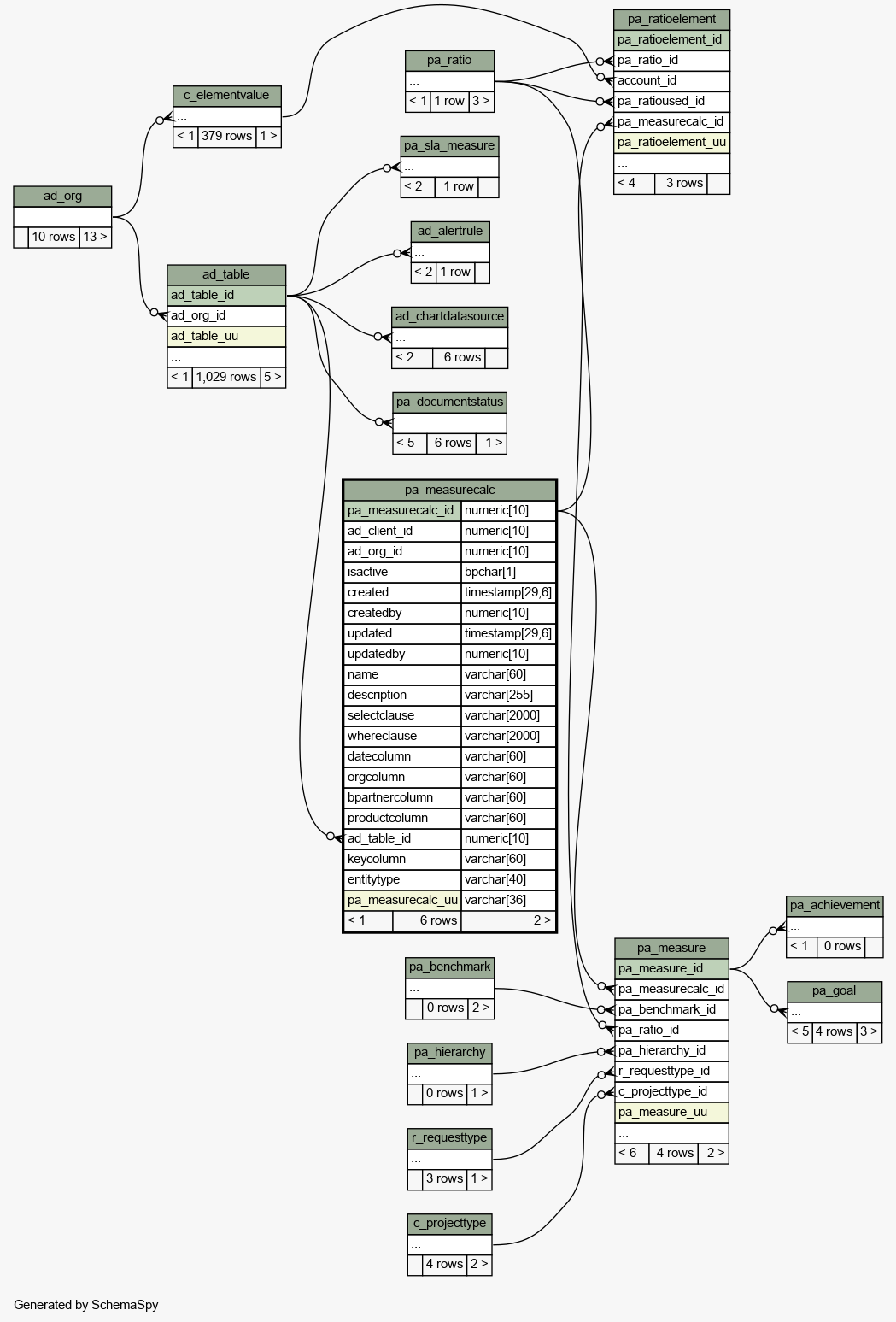

Close relationships  within of separation:
