Table idempiere9.adempiere.pa_measure
Concrete Performance Measurement

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_measure_id numeric 10
pa_achievement.pa_measure_id pameasure_paachievement R
pa_goal.pa_measure_id pameasure_pagoal R
Concrete Performance Measurement
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
measuretype bpchar 1 Determines how the actual performance is derived
manualactual numeric 0  √  null Manually entered actual value
manualnote varchar 2000  √  null Note for manual entry
calculationclass varchar 60  √  null Java Class for calculation, implementing Interface Measure
pa_measurecalc_id numeric 10  √  null
pa_measurecalc.pa_measurecalc_id pameasurecalc_pameasure R
Calculation method for measuring performance
pa_benchmark_id numeric 10  √  null
pa_benchmark.pa_benchmark_id pabenchmark_pameasure R
Performance Benchmark
pa_ratio_id numeric 10  √  null
pa_ratio.pa_ratio_id paratio_pameasure R
Performance Ratio
pa_hierarchy_id numeric 10  √  null
pa_hierarchy.pa_hierarchy_id pahierarchy_pameasure R
Optional Reporting Hierarchy - If not selected the default hierarchy trees are used.
measuredatatype bpchar 1 Type of data - Status or in Time
r_requesttype_id numeric 10  √  null
r_requesttype.r_requesttype_id rrequesttype_pameasure R
Type of request (e.g. Inquiry, Complaint, ..)
c_projecttype_id numeric 10  √  null
c_projecttype.c_projecttype_id cprojecttype_pameasure R
Type of the project
pa_measure_uu varchar 36  √  NULL::character varying PA_Measure_UU

Table contained 4 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_measure_id Primary key Asc pa_measure_pkey
pa_measure_uu Must be unique Asc pa_measure_uu_idx

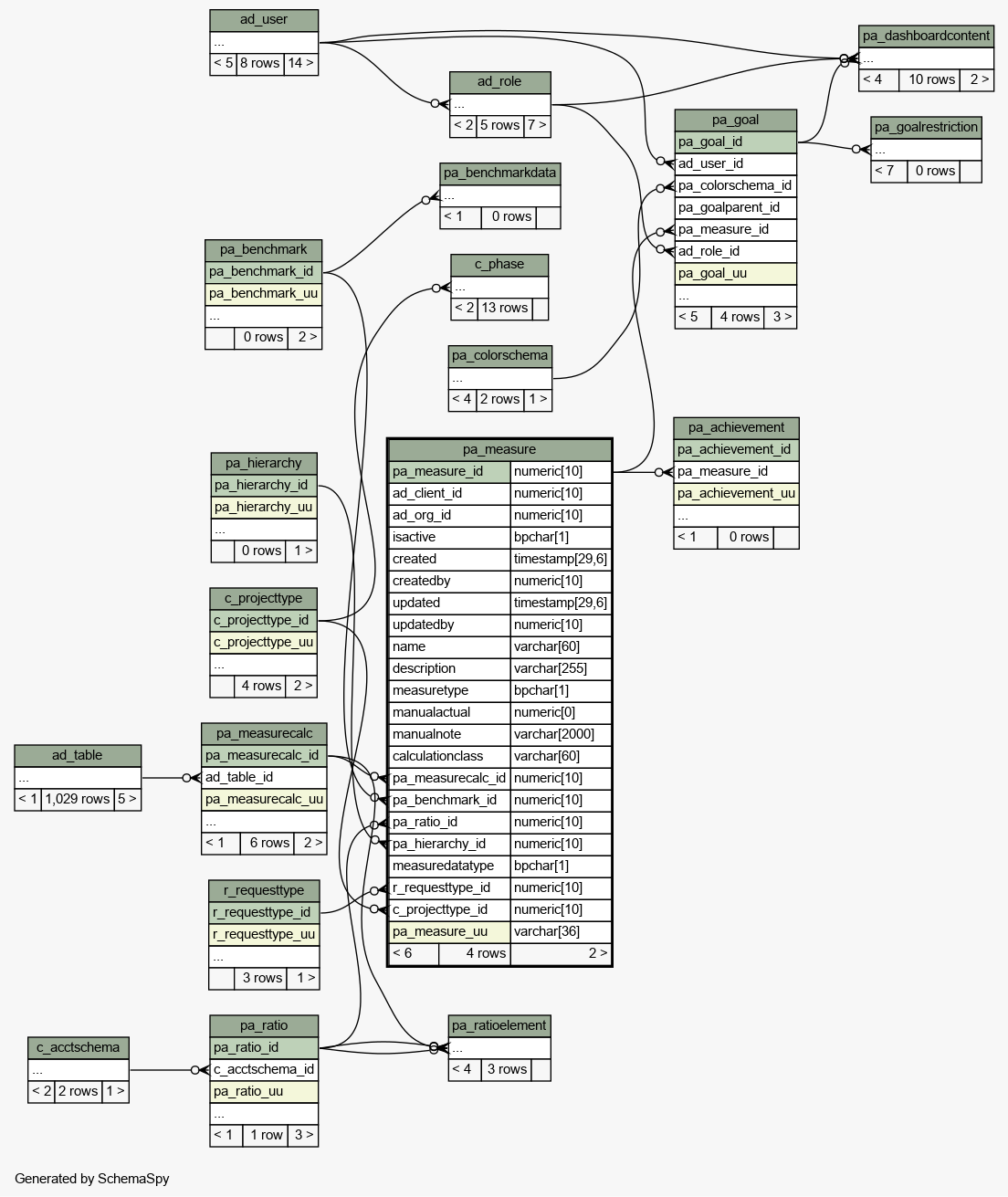

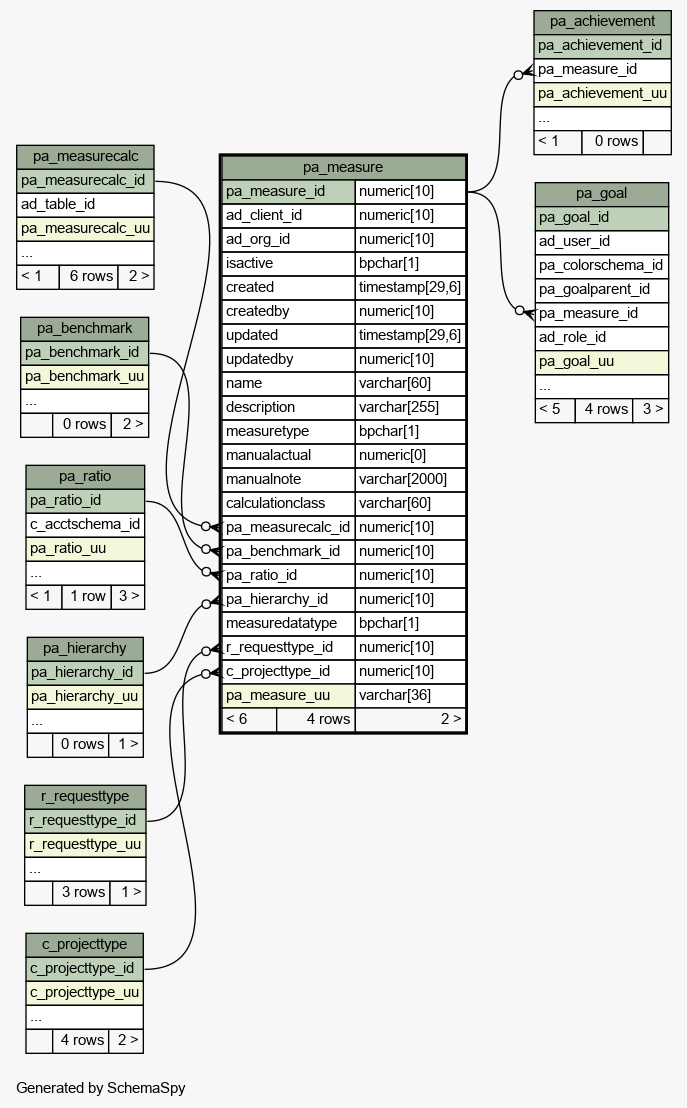

Close relationships  within of separation:
