Table idempiere9.adempiere.ad_chartdatasource
Chart data definition

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_chartdatasource_id numeric 10 Chart Datasource
ad_chart_id numeric 10
ad_chart.ad_chart_id adchart_adchartdatasource R
Chart
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_table_id numeric 10  √  null
ad_table.ad_table_id adtable_adchartdatasource R
Database Table information
categorycolumn varchar 60  √  null Fully qualified data category column
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
datecolumn varchar 60  √  NULL::character varying Fully qualified date column
description varchar 255  √  NULL::character varying Optional short description of the record
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
fromclause varchar 2000 SQL FROM clause
isactive bpchar 1 'Y'::bpchar The record is active in the system
keycolumn varchar 60  √  null Key Column for Table
name varchar 60 Alphanumeric identifier of the entity
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
valuecolumn varchar 60 Fully qualified data value column
whereclause varchar 2000 'WHERE ...'::character varying Fully qualified SQL WHERE clause
timeoffset numeric 10  √  null Number of time units to offset displayed chart data from the current date.
seriescolumn varchar 60  √  NULL::character varying Series Column
ad_chartdatasource_uu varchar 36  √  NULL::character varying AD_ChartDatasource_UU

Table contained 6 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_chartdatasource_id Primary key Asc ad_chartdatasource_key
ad_chartdatasource_uu Must be unique Asc ad_chartdatasource_uu_idx

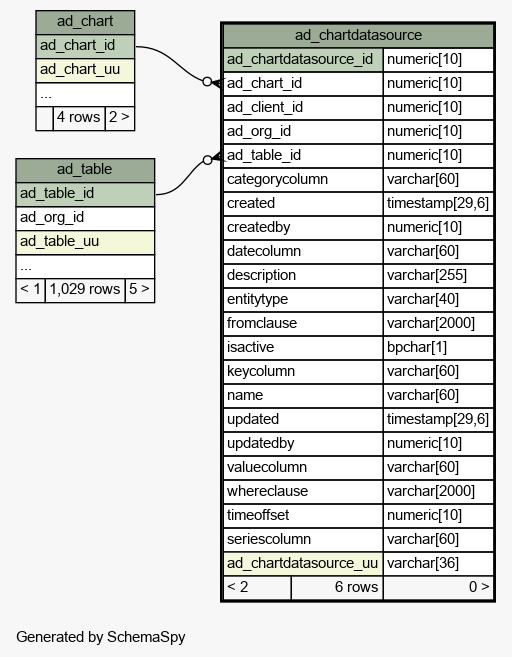

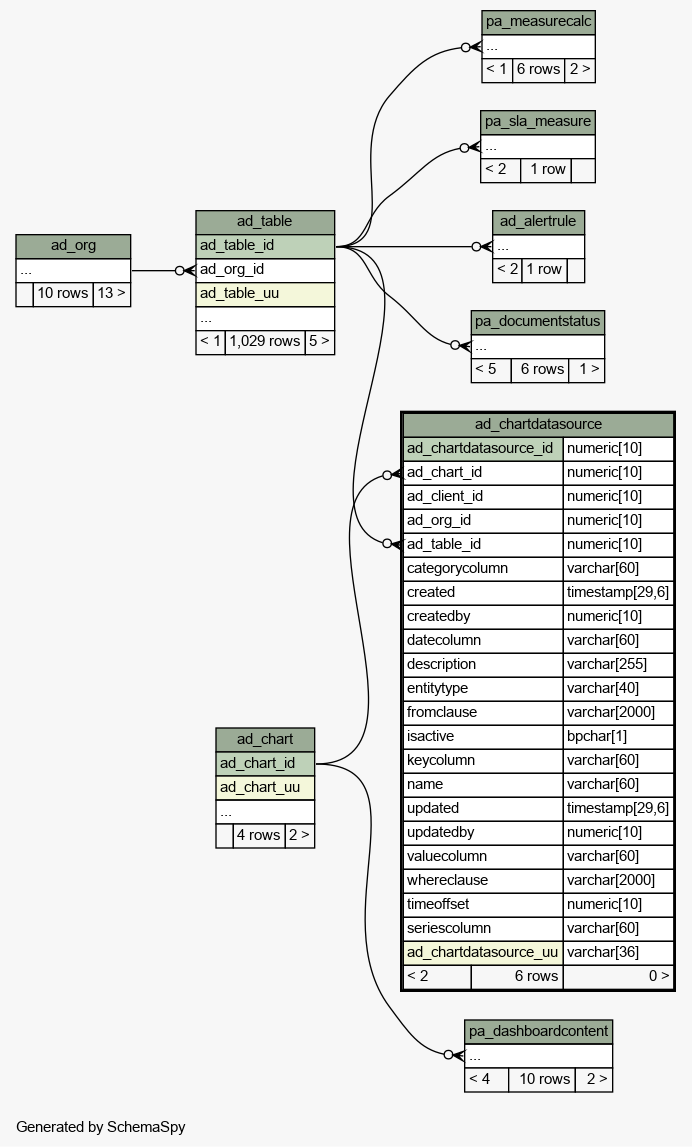

Close relationships  within of separation:
