Table idempiere9.adempiere.ad_chart
Chart definition

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_chart_id numeric 10
ad_chartdatasource.ad_chart_id adchart_adchartdatasource R
pa_dashboardcontent.ad_chart_id adchart_padashboardcontent R
Chart
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
charttype varchar 2 Type of chart to render
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
isactive bpchar 1  √  NULL::bpchar The record is active in the system
name varchar 60 Alphanumeric identifier of the entity
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
winheight numeric 10  √  NULL::numeric Window Height
isdisplaylegend bpchar 1 'Y'::bpchar Display chart legend
chartorientation bpchar 1 'V'::bpchar The orientation of the chart.
istimeseries bpchar 1 'N'::bpchar The domain data for the chart is organised by time.
timeunit bpchar 1  √  NULL::bpchar The unit of time for grouping chart data.
timescope numeric 10  √  null The number of time units to include the chart result.
domainlabel varchar 60  √  NULL::character varying Label for the domain axis.
rangelabel varchar 60  √  NULL::character varying Label for the range axis.
ad_chart_uu varchar 36  √  NULL::character varying AD_Chart_UU
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization

Table contained 4 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_chart_id Primary key Asc ad_chart_key
ad_chart_uu Must be unique Asc ad_chart_uu_idx

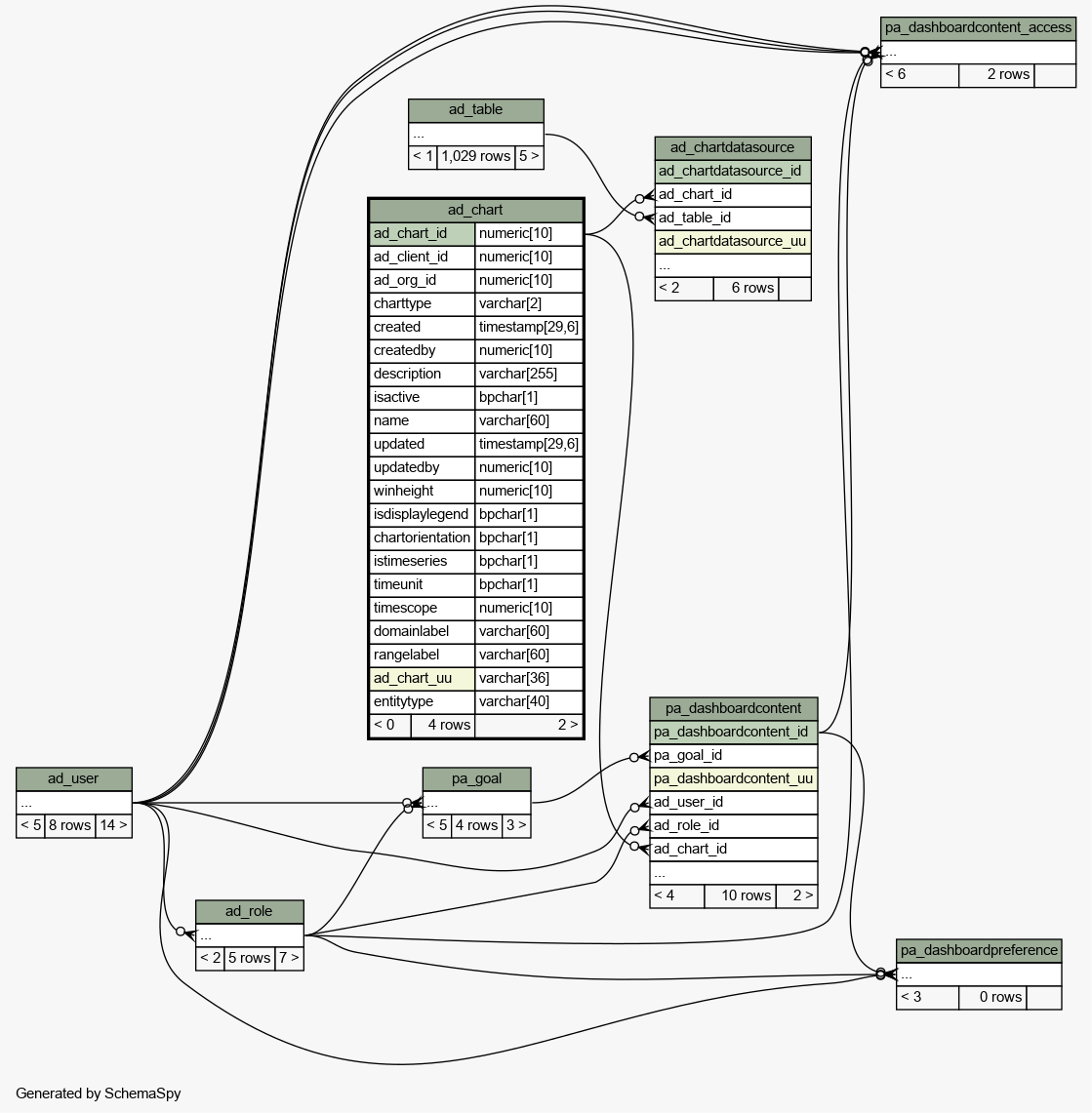

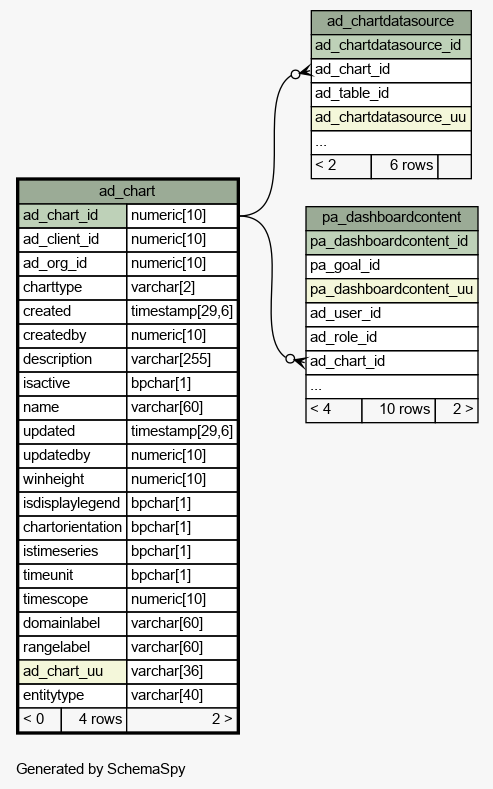

Close relationships  within of separation:
