Table idempiere9.adempiere.m_warehouse
Storage Warehouse and Service Point

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_warehouse_id numeric 10
c_pos.m_warehouse_id mwarehouse_cpos R
m_warehouse.m_warehousesource_id mwarehousesource_mwarehouse R
Storage Warehouse and Service Point
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
c_location_id numeric 10 Location or Address
separator bpchar 1 Element Separator
m_warehousesource_id numeric 10  √  null
m_warehouse.m_warehouse_id mwarehousesource_mwarehouse R
Optional Warehouse to replenish from
replenishmentclass varchar 60  √  null Custom class to calculate Quantity to Order
isintransit bpchar 1  √  'N'::bpchar Movement is in transit
isdisallownegativeinv bpchar 1 'N'::bpchar Negative Inventory is not allowed in this warehouse
m_warehouse_uu varchar 36  √  NULL::character varying M_Warehouse_UU
m_reservelocator_id numeric 10  √  NULL::numeric Reservation Locator (just for reporting purposes)

Table contained 11 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_warehouse_id Primary key Asc m_warehouse_pkey
ad_client_id + name Must be unique Asc/Asc m_warehouse_name
m_warehouse_uu Must be unique Asc m_warehouse_uu_idx

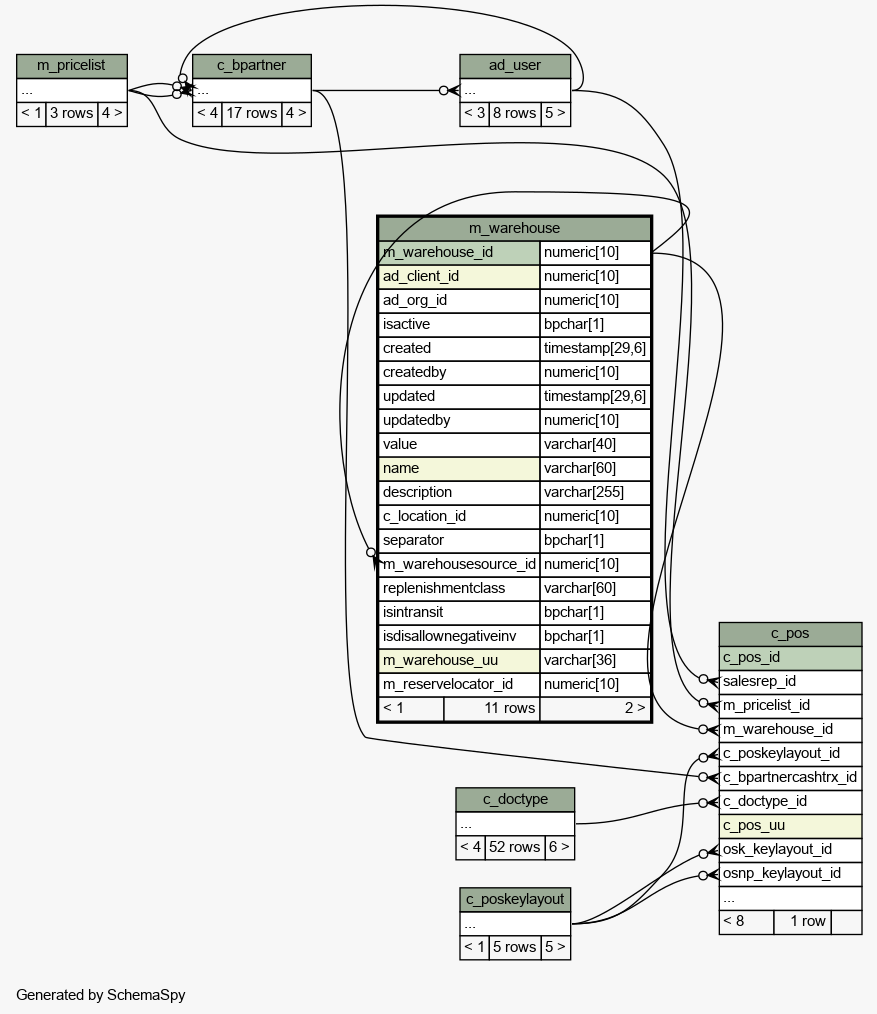

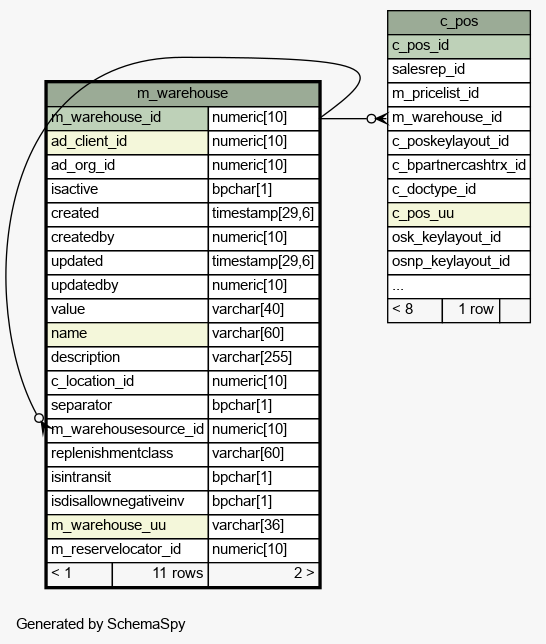

Close relationships  within of separation:
