Table idempiere9.adempiere.r_issuestatus
Issue Status

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
r_issuestatus_id numeric 10
r_issueknown.r_issuestatus_id rissuestatus_rissueknown R
Status of an Issue
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
r_issuestatus_uu varchar 36  √  NULL::character varying R_IssueStatus_UU

Table contained 0 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
r_issuestatus_id Primary key Asc r_issuestatus_pkey
r_issuestatus_uu Must be unique Asc r_issuestatus_uu_idx

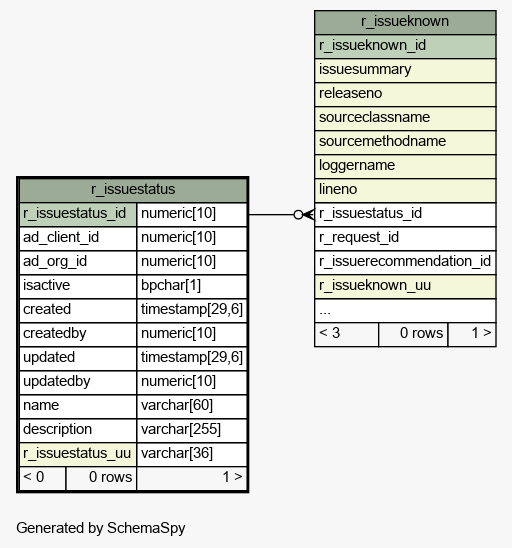

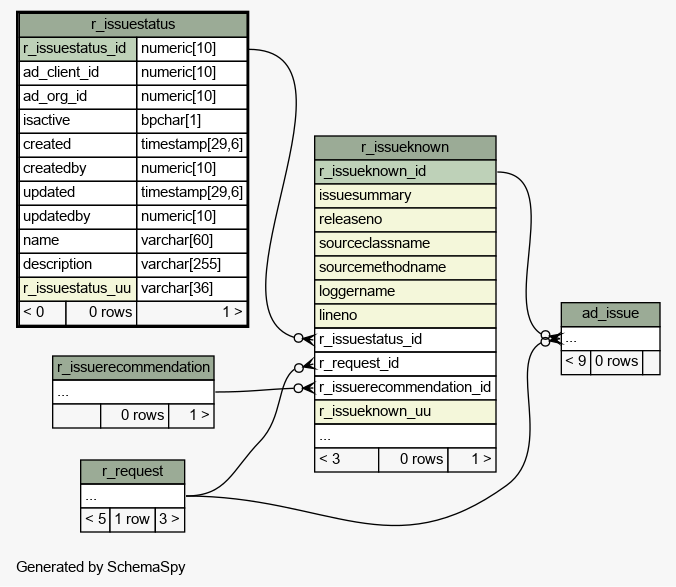

Close relationships  within of separation:
