Table idempiere9.adempiere.r_issueknown
Known Issue

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
r_issueknown_id numeric 10
ad_issue.r_issueknown_id rknownissue_adissue R
Known Issue
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
issuesummary varchar 255 Issue Summary
releaseno varchar 10 Internal Release Number
sourceclassname varchar 60  √  null Source Class Name
sourcemethodname varchar 60  √  null Source Method Name
loggername varchar 60  √  null Logger Name
lineno numeric 10  √  0 Line No
description varchar 255  √  null Optional short description of the record
issuestatus varchar 2000  √  null Current Status of the Issue
r_issuestatus_id numeric 10  √  null
r_issuestatus.r_issuestatus_id rissuestatus_rissueknown R
Status of an Issue
r_request_id numeric 10  √  null
r_request.r_request_id rrequest_rissueknown R
Request from a Business Partner or Prospect
processing bpchar 1  √  null Process Now
r_issuerecommendation_id numeric 10  √  null
r_issuerecommendation.r_issuerecommendation_id rissuerecommendation_rissuekno R
Recommendations how to fix an Issue
r_issueknown_uu varchar 36  √  NULL::character varying R_IssueKnown_UU

Table contained 0 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
r_issueknown_id Primary key Asc r_issueknown_pkey
r_issueknown_uu Must be unique Asc r_issueknown_uu_idx
issuesummary + releaseno + sourceclassname + sourcemethodname + loggername + lineno Must be unique Asc/Asc/Asc/Asc/Asc/Asc r_knownissue_alt

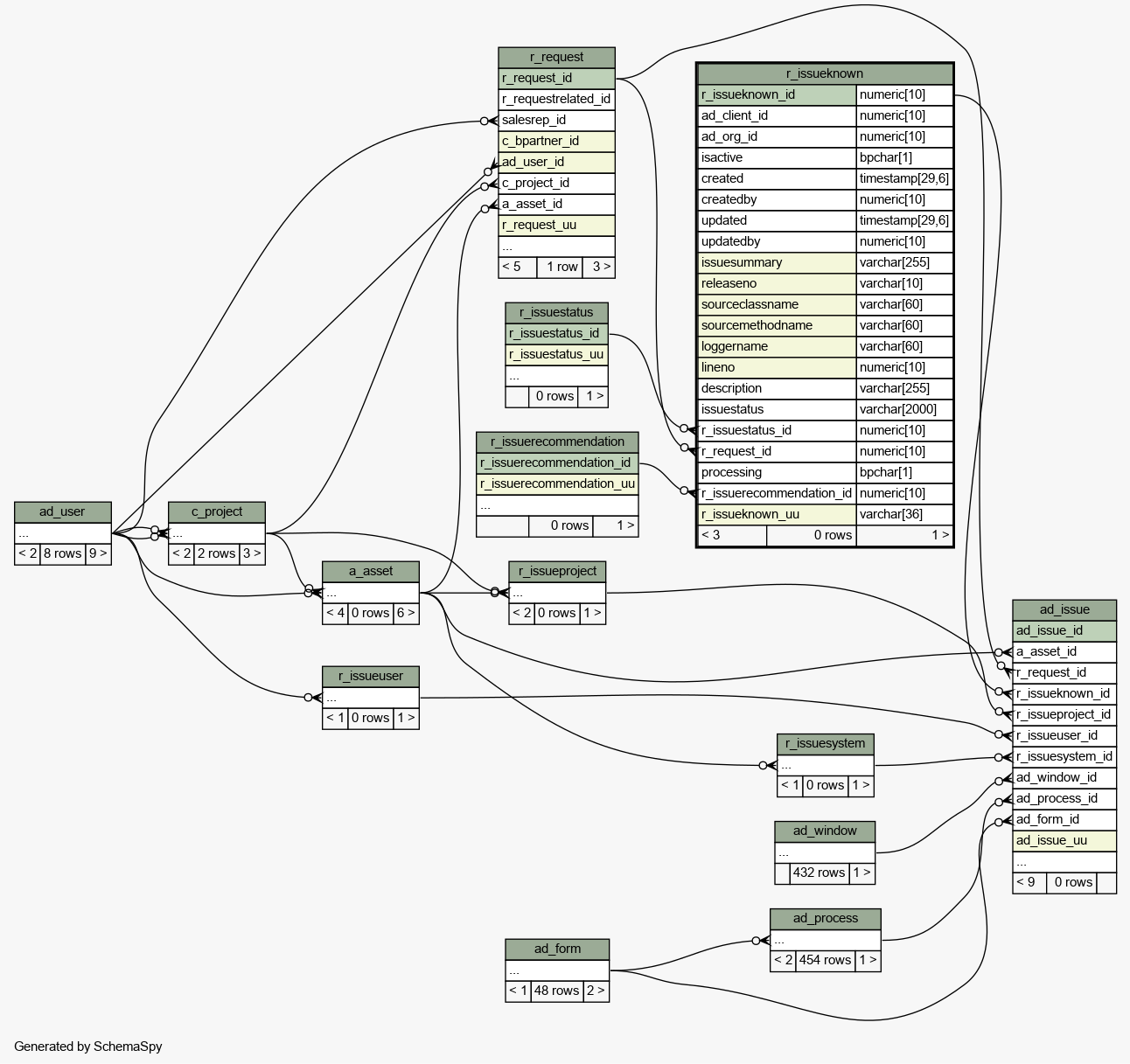

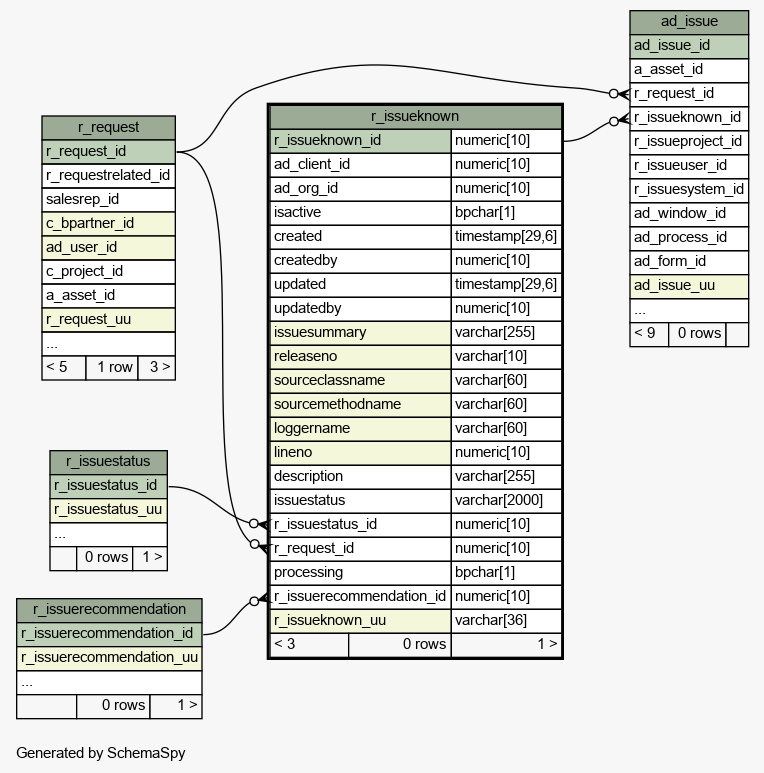

Close relationships  within of separation:
