Table idempiere9.adempiere.m_inoutline
Line on Shipment or Receipt document

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_inoutline_id numeric 10
a_asset_addition.m_inoutline_id minoutline_aassetaddition R
a_asset_delivery.m_inoutline_id moutline_aassetdelivery C
c_invoiceline.m_inoutline_id minoutline_cinvoiceline R
m_inoutline.ref_inoutline_id minoutline_ref R
m_inoutline.reversalline_id reversalline_minoutline R
Line on Shipment or Receipt document
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
line numeric 10 Unique line for this document
description varchar 255  √  null Optional short description of the record
m_inout_id numeric 10 Material Shipment Document
c_orderline_id numeric 10  √  null Sales Order Line
m_locator_id numeric 10  √  null
m_locator.m_locator_id mlocator_minoutline R
Warehouse Locator
m_product_id numeric 10  √  null
m_product.m_product_id mproduct_minoutline R
Product, Service, Item
c_uom_id numeric 10
c_uom.c_uom_id cuom_minoutline R
Unit of Measure
movementqty numeric 0 0 Quantity of a product moved.
isinvoiced bpchar 1 'N'::bpchar Is this invoiced?
m_attributesetinstance_id numeric 10  √  0 Product Attribute Set Instance
isdescription bpchar 1 'N'::bpchar if true, the line is just description and no transaction
confirmedqty numeric 0  √  0 Confirmation of a received quantity
pickedqty numeric 0  √  0 Picked Quantity
scrappedqty numeric 0  √  0 The Quantity scrapped due to QA issues
targetqty numeric 0  √  0 Target Movement Quantity
ref_inoutline_id numeric 10  √  null
m_inoutline.m_inoutline_id minoutline_ref R
Referenced Shipment Line
processed bpchar 1 'N'::bpchar The document has been processed
qtyentered numeric 0 The Quantity Entered is based on the selected UoM
c_charge_id numeric 10  √  null
c_charge.c_charge_id ccharge_minoutline R
Additional document charges
c_project_id numeric 10  √  null Financial Project
c_projectphase_id numeric 10  √  null Phase of a Project
c_projecttask_id numeric 10  √  null Actual Project Task in a Phase
c_campaign_id numeric 10  √  null Marketing Campaign
c_activity_id numeric 10  √  null Business Activity
user1_id numeric 10  √  null User defined list element #1
user2_id numeric 10  √  null User defined list element #2
ad_orgtrx_id numeric 10  √  null Performing or initiating organization
m_rmaline_id numeric 10  √  null Return Material Authorization Line
reversalline_id numeric 10  √  null
m_inoutline.m_inoutline_id reversalline_minoutline R
Use to keep the reversal line ID for reversing costing purpose
m_inoutline_uu varchar 36  √  NULL::character varying M_InOutLine_UU
qtyoverreceipt numeric 0  √  0 Over Receipt Quantity
isautoproduce bpchar 1  √  'N'::bpchar Auto create production to fulfill shipment

Table contained 27 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_inoutline_id Primary key Asc m_inoutline_pkey
m_inout_id Performance Asc m_inoutline_inout
c_orderline_id Performance Asc m_inoutline_orderline_idx
m_product_id Performance Asc m_inoutline_product
m_inoutline_uu Must be unique Asc m_inoutline_uu_idx

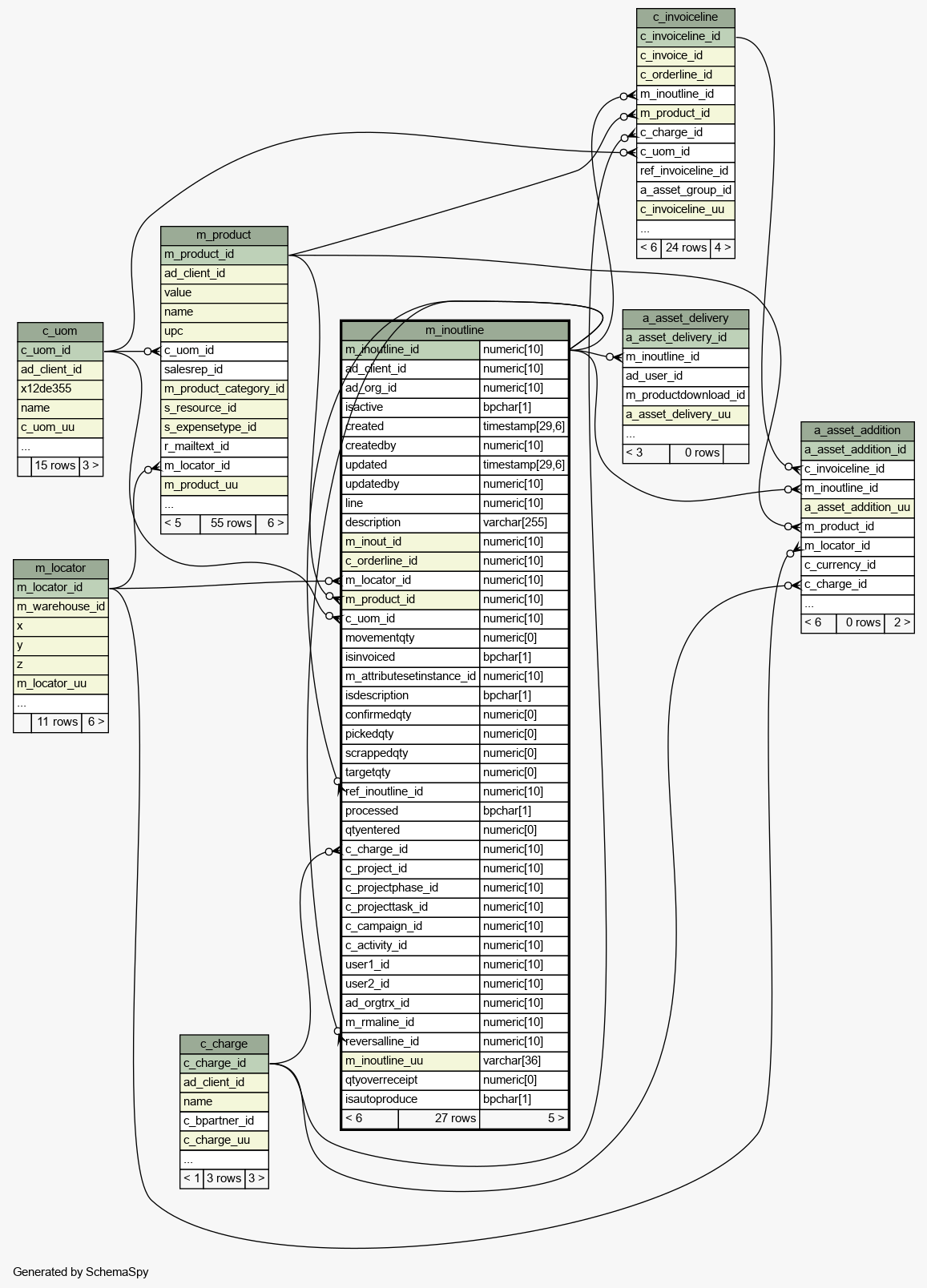

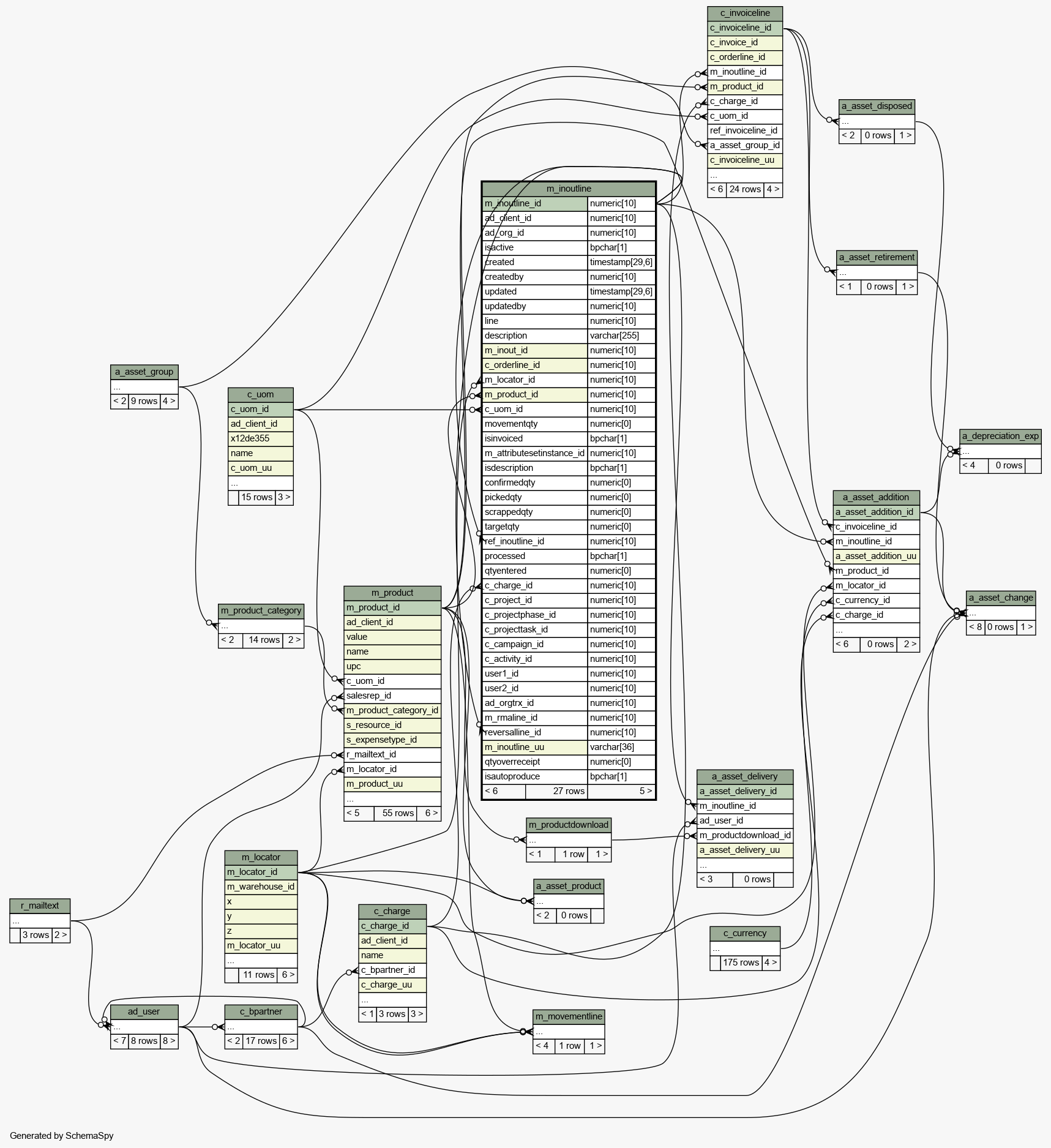

Close relationships  within of separation:
