Table idempiere11.adempiere.r_status
Request Status

Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
r_status_id numeric 10
r_request.r_status_id rstatus_rrequest R
r_requestaction.r_status_id rstatus_rrequestaction R
r_status.next_status_id nextstatus_rstatus R
r_status.update_status_id updatestatus_rstatus R
Request Status
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
isdefault bpchar 1 'N'::bpchar Default value
isopen bpchar 1 'N'::bpchar The status is closed
isclosed bpchar 1 'N'::bpchar The status is closed
value varchar 40 Search key for the record in the format required - must be unique
next_status_id numeric 10  √  null
r_status.r_status_id nextstatus_rstatus R
Move to next status automatically after timeout
update_status_id numeric 10  √  null
r_status.r_status_id updatestatus_rstatus R
Automatically change the status after entry from web
timeoutdays numeric 10  √  null Timeout in Days to change Status automatically
iswebcanupdate bpchar 1 'Y'::bpchar Entry can be updated from the Web
isfinalclose bpchar 1 'N'::bpchar Entries with Final Close cannot be re-opened
seqno numeric 10 0 Method of ordering records; lowest number comes first
r_statuscategory_id numeric 10
r_statuscategory.r_statuscategory_id rstatuscategory_rstatus R
Request Status Category
r_status_uu varchar 36  √  NULL::character varying R_Status_UU

Table contained 4 rows at 2024-01-03 13:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
r_status_id Primary key Asc r_status_pkey
r_status_uu Must be unique Asc r_status_uu_idx

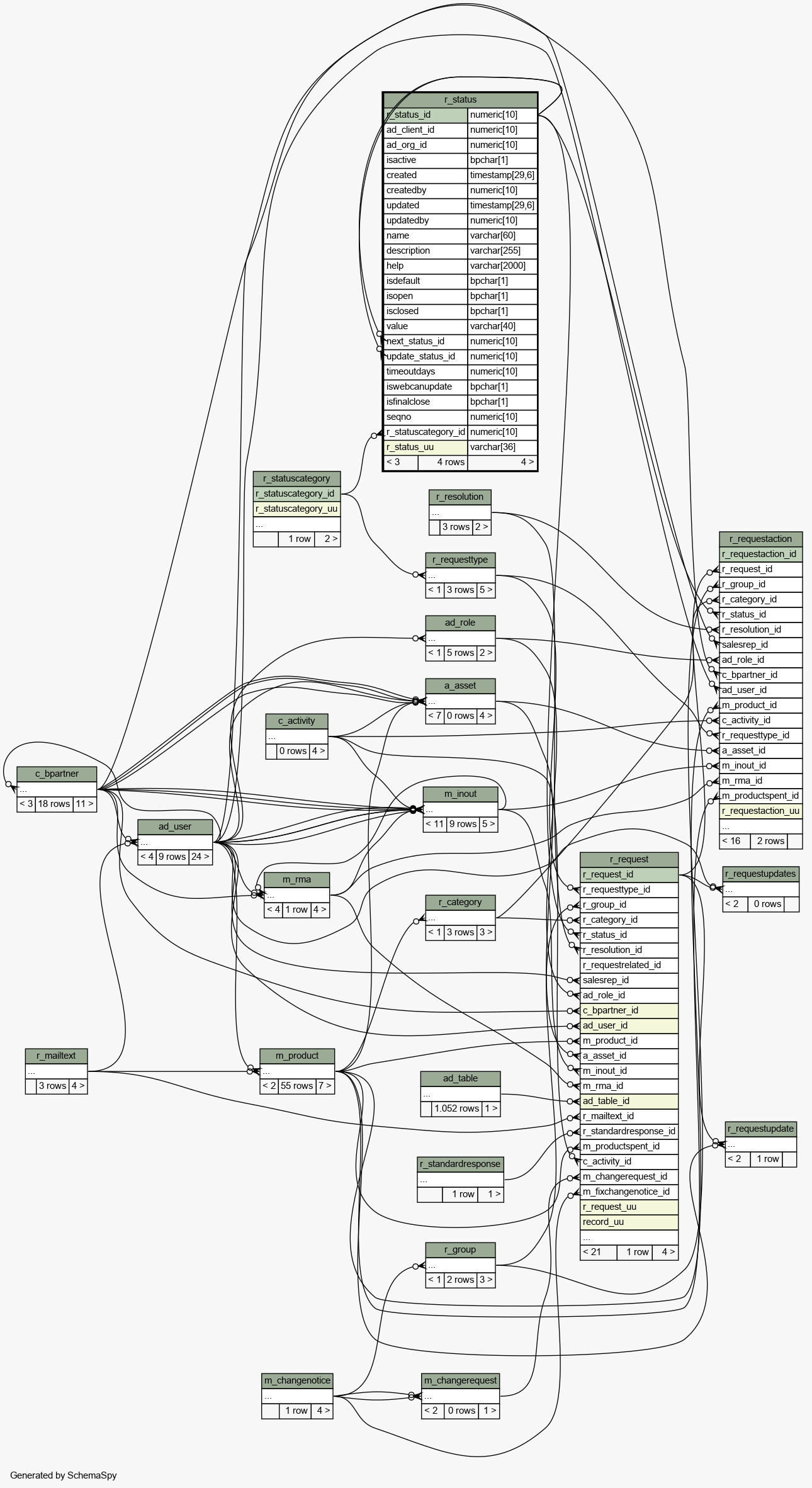

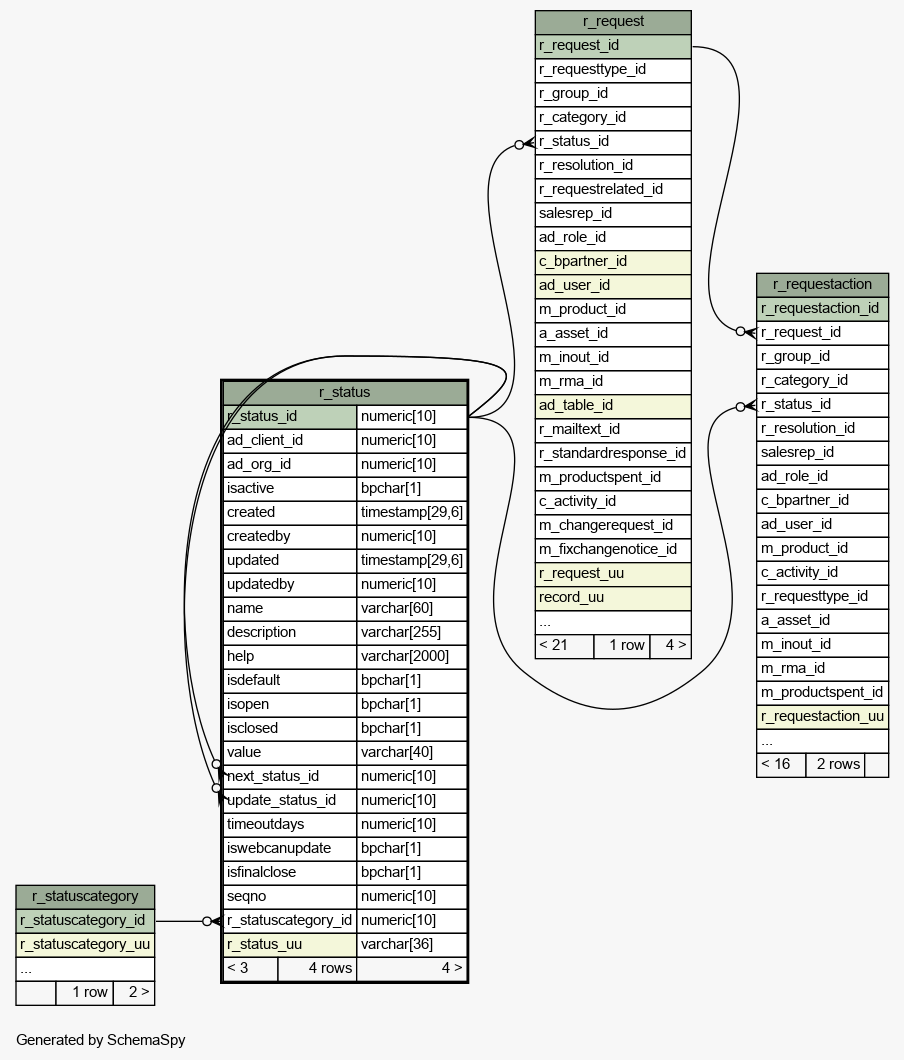

Close relationships  within of separation:
