Table idempiere11.adempiere.a_asset
Asset used internally or by customers

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
a_asset_id numeric 10
a_asset.a_parent_asset_id aparentasset_aasset R
a_asset_use.a_asset_id aasset_aassetuse R
m_operationresource.a_asset_id aasset_moperationresource R
Asset used internally or by customers
ad_client_id numeric 10 Tenant for this installation.
ad_org_id numeric 10 Organizational entity within tenant
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
a_asset_group_id numeric 10 Group of Assets
m_product_id numeric 10 Product, Service, Item
serno varchar 255  √  null Product Serial Number
lot varchar 255  √  null Lot number (alphanumeric)
versionno varchar 20  √  null Version Number
guaranteedate timestamp 29,6  √  null Date when guarantee expires
assetservicedate timestamp 29,6  √  null Date when Asset was put into service
isowned bpchar 1 'Y'::bpchar The asset is owned by the organization
assetdepreciationdate timestamp 29,6  √  null Date of last depreciation
uselifeyears numeric 0  √  null Years of the usable life of the asset
uselifemonths numeric 10  √  null Months of the usable life of the asset
lifeuseunits numeric 0  √  null Units of use until the asset is not usable anymore
useunits numeric 0  √  null Currently used units of the assets
isdisposed bpchar 1 'N'::bpchar The asset is disposed
assetdisposaldate timestamp 29,6  √  null Date when the asset is/was disposed
isinposession bpchar 1 'Y'::bpchar The asset is in the possession of the organization
locationcomment varchar 255  √  null Additional comments or remarks concerning the location
m_locator_id numeric 10  √  null Warehouse Locator
c_bpartner_id numeric 10  √  null Identifies a Business Partner
c_bpartner_location_id numeric 10  √  null Identifies the (ship to) address for this Business Partner
c_location_id numeric 10  √  null Location or Address
processing bpchar 1  √  'N'::bpchar Process Now
isdepreciated bpchar 1 'Y'::bpchar The asset will be depreciated
isfullydepreciated bpchar 1 'N'::bpchar The asset is fully depreciated
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_aasset R
User within the system - Internal or Business Partner Contact
m_attributesetinstance_id numeric 10  √  0 Product Attribute Set Instance
qty numeric 0  √  null Quantity
c_project_id numeric 10  √  null Financial Project
c_bpartnersr_id numeric 10  √  null Business Partner (Agent or Sales Rep)
m_inoutline_id numeric 10  √  null Line on Shipment or Receipt document
lastmaintenencedate timestamp 29,6  √  null
nextmaintenencedate timestamp 29,6  √  null Next Maintenance Date
lastmaintenanceuseunit numeric 10  √  null
nextmaintenanceuseunit numeric 10  √  null
leaseterminationdate timestamp 29,6  √  null Lease Termination Date
lease_bpartner_id numeric 10  √  null The Business Partner who rents or leases
lastmaintenancenote varchar 60  √  null Last Maintenance Note
lastmaintenancedate timestamp 29,6  √  null Last Maintenance Date
lastmaintenanceunit numeric 10  √  null Last Maintenance Unit
nextmaintenenceunit numeric 10  √  null Next Maintenence Unit
a_asset_createdate timestamp 29,6  √  null Create Date
a_asset_revaldate timestamp 29,6  √  null Revaluation Date
a_parent_asset_id numeric 10  √  null
a_asset.a_asset_id aparentasset_aasset R
Parent Asset
a_qty_current numeric 0  √  null Current Qty
a_qty_original numeric 0  √  null A_QTY_Original
a_asset_uu varchar 36  √  NULL::character varying A_Asset_UU
a_asset_class_id numeric 10  √  NULL::numeric Asset class
a_asset_status varchar 2 'NW'::character varying Asset Status
a_asset_action varchar 2 'MD'::character varying Asset Action
processed bpchar 1 'N'::bpchar The document has been processed
assetactivationdate timestamp 29,6  √  null Activation Date
inventoryno varchar 30  √  NULL::character varying Inventory No
a_asset_type_id numeric 10  √  null Asset Type
a_assettype varchar 3 'MFX'::character varying Asset Type
c_activity_id numeric 10  √  NULL::numeric Business Activity
manufacturer varchar 30  √  NULL::character varying Manufacturer of the Product
manufacturedyear numeric 10  √  NULL::numeric Manufactured Year

Table contained 0 rows at 2024-01-03 13:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
a_asset_id Primary key Asc a_asset_pkey
a_asset_uu Must be unique Asc a_asset_uu_idx

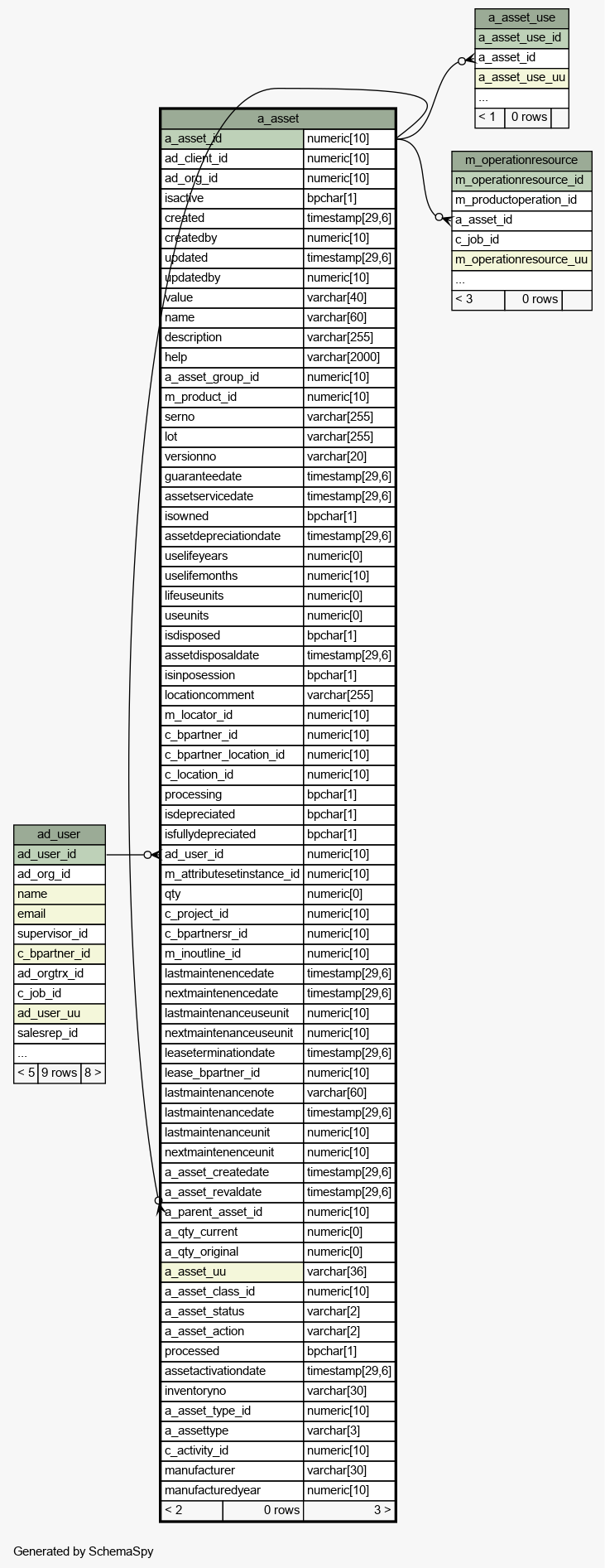

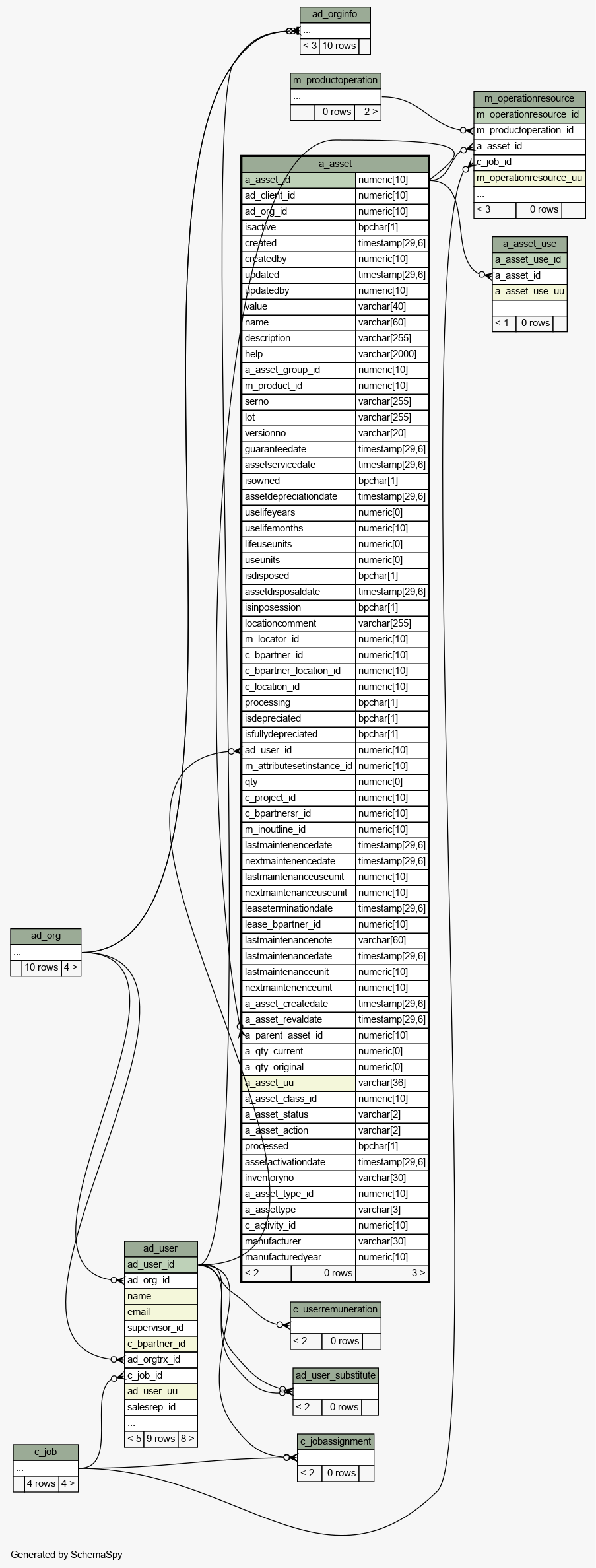

Close relationships  within of separation:
