Table idempiere9.adempiere.ad_workflow_trl
Workflow or combination of tasks

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_workflow_id numeric 10
ad_workflow.ad_workflow_id ad_workflowtrl C
Workflow or combination of tasks
ad_language varchar 6 Language for this entity
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help text 2147483647  √  null Comment or Hint
istranslated bpchar 1 'N'::bpchar This column is translated
ad_workflow_trl_uu varchar 36  √  NULL::character varying AD_Workflow_Trl_UU

Table contained 56 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_workflow_id + ad_language Primary key Asc/Asc ad_workflow_trl_pkey
ad_workflow_trl_uu Must be unique Asc ad_workflow_trl_uu_idx

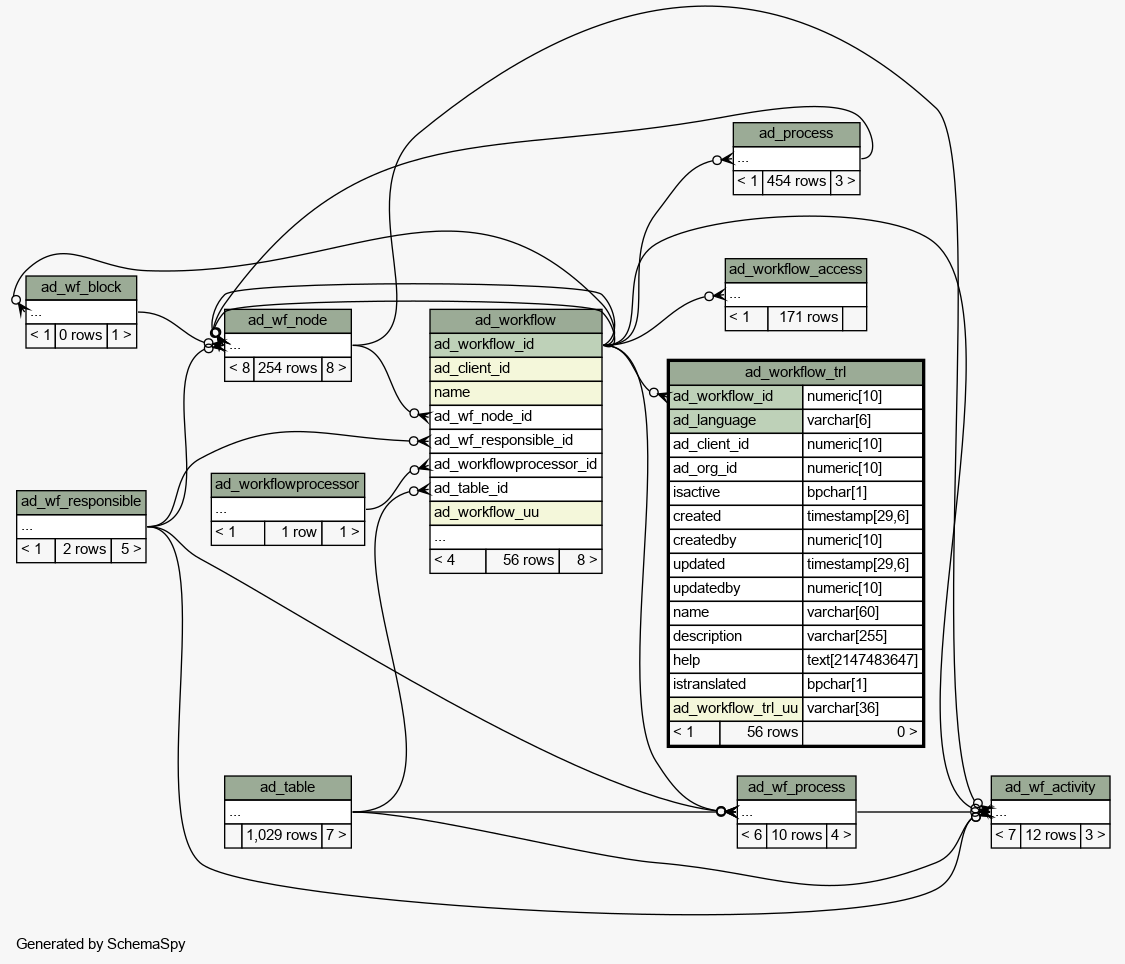

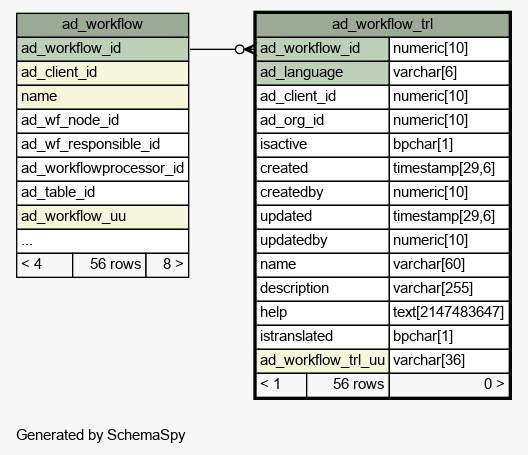

Close relationships  within of separation:
