Table idempiere9.adempiere.ad_wf_node_para
Workflow Node Execution Parameter

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_wf_node_para_id numeric 10 Workflow Node Execution Parameter
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_wf_node_id numeric 10
ad_wf_node.ad_wf_node_id adwfnode_adwfnodepara R
Workflow Node (activity), step or process
attributename varchar 60  √  null Name of the Attribute
ad_process_para_id numeric 10  √  null
ad_process_para.ad_process_para_id adprocesspara_adwfnodepara C
Process Parameter
description varchar 255  √  null Optional short description of the record
attributevalue varchar 60  √  null Value of the Attribute
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
ad_wf_node_para_uu varchar 36  √  NULL::character varying AD_WF_Node_Para_UU

Table contained 1 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_wf_node_para_id Primary key Asc ad_wf_node_para_pkey
ad_wf_node_para_uu Must be unique Asc ad_wf_node_para_uu_idx

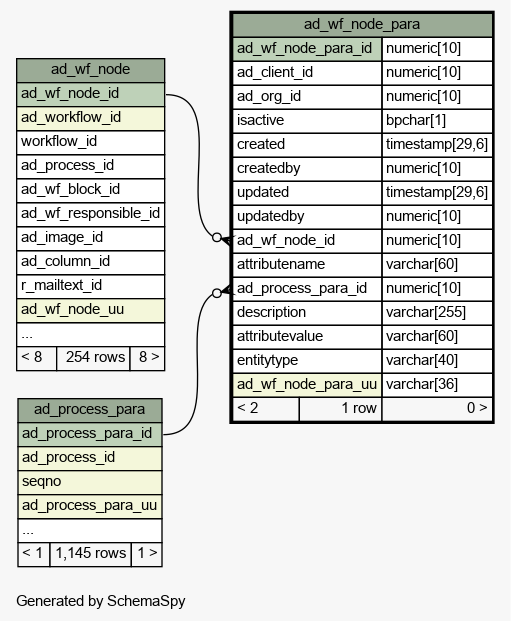

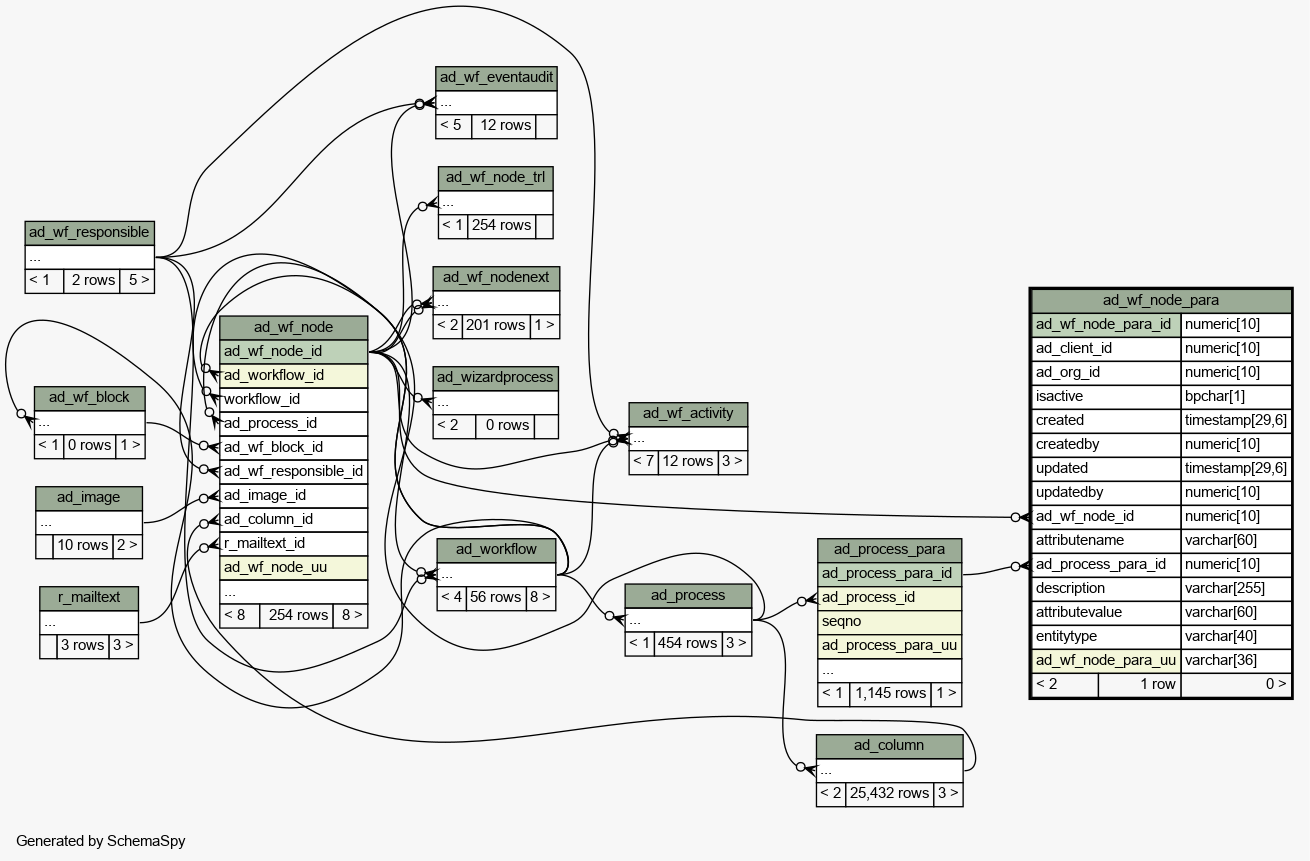

Close relationships  within of separation:
