Table idempiere9.adempiere.ad_column
Column in the table

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_column_id numeric 10
ad_find.ad_column_id adcolumn_adfind R
ad_wf_nextcondition.ad_column_id adcolumn_adwfnextcondition R
ad_wf_node.ad_column_id adcolumn_adwfnode R
Column in the table
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
updated timestamp 29,6 now() Date this record was updated
createdby numeric 10 User who created this records
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
version numeric 0 Version of the table definition
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
columnname varchar 30 Name of the column in the database
ad_table_id numeric 10
ad_table.ad_table_id ad_table_column C
Database Table information
ad_reference_id numeric 10 System Reference and Validation
ad_reference_value_id numeric 10  √  null Required to specify, if data type is Table or List
ad_val_rule_id numeric 10  √  null Dynamic Validation Rule
fieldlength numeric 10  √  null Length of the column in the database
defaultvalue varchar 2000  √  null Default value hierarchy, separated by ;
iskey bpchar 1 'N'::bpchar This column is the key in this table
isparent bpchar 1 'N'::bpchar This column is a link to the parent table (e.g. header from lines) - incl. Association key columns
ismandatory bpchar 1 'N'::bpchar Data entry is required in this column
isupdateable bpchar 1 'Y'::bpchar Determines, if the field can be updated
readonlylogic varchar 2000  √  null Logic to determine if field is read only (applies only when field is read-write)
isidentifier bpchar 1 'N'::bpchar This column is part of the record identifier
seqno numeric 10  √  null Method of ordering records; lowest number comes first
istranslated bpchar 1 'N'::bpchar This column is translated
isencrypted bpchar 1 'N'::bpchar Display or Storage is encrypted
callout varchar 255  √  null Fully qualified class names and method - separated by semicolons
vformat varchar 255  √  null Format of the value; Can contain fixed format elements, Variables: "_lLoOaAcCa09"
valuemin varchar 20  √  null Minimum Value for a field
valuemax varchar 20  √  null Maximum Value for a field
isselectioncolumn bpchar 1 'N'::bpchar Is this column used for finding rows in windows
ad_element_id numeric 10  √  null System Element enables the central maintenance of column description and help.
ad_process_id numeric 10  √  null
ad_process.ad_process_id adprocess_adcolumn N
Process or Report
issyncdatabase bpchar 1  √  'N'::bpchar Change database table definition when changing dictionary definition
isalwaysupdateable bpchar 1 'N'::bpchar The column is always updateable, even if the record is not active or processed
columnsql varchar 4000  √  null Virtual Column (r/o)
mandatorylogic varchar 2000  √  null Mandatory Logic
infofactoryclass varchar 255  √  null Fully qualified class name that implements the InfoFactory interface
isautocomplete bpchar 1 'N'::bpchar Automatic completion for textfields
isallowlogging bpchar 1  √  'Y'::bpchar Determine if a column must be recorded into the change log
formatpattern varchar 22  √  null The pattern used to format a number or date.
ad_column_uu varchar 36  √  NULL::character varying AD_Column_UU
isallowcopy bpchar 1 'Y'::bpchar Determine if a column must be copied when pushing the button to copy record
seqnoselection numeric 10  √  NULL::numeric Selection Column Sequence
istoolbarbutton bpchar 1 'Y'::bpchar Show the button on the toolbar, the window, or both
issecure bpchar 1 'N'::bpchar Defines whether content must be treated as secure
ad_chart_id numeric 10  √  NULL::numeric Chart
fkconstraintname varchar 30  √  NULL::character varying Constraint Name
fkconstrainttype bpchar 1  √  'N'::bpchar Constraint Type
pa_dashboardcontent_id numeric 10  √  NULL::numeric Dashboard Content
placeholder varchar 255  √  NULL::character varying Placeholder
ishtml bpchar 1  √  'N'::bpchar Text has HTML tags
ad_val_rule_lookup_id numeric 10  √  NULL::numeric Override Dynamic Validation Rule for Lookup Window

Table contained 25,432 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_column_id Primary key Asc ad_column_pkey
Must be unique ad_column_fkconstraintname
ad_table_id Must be unique Asc ad_column_name
ad_column_uu Must be unique Asc ad_column_uu_idx

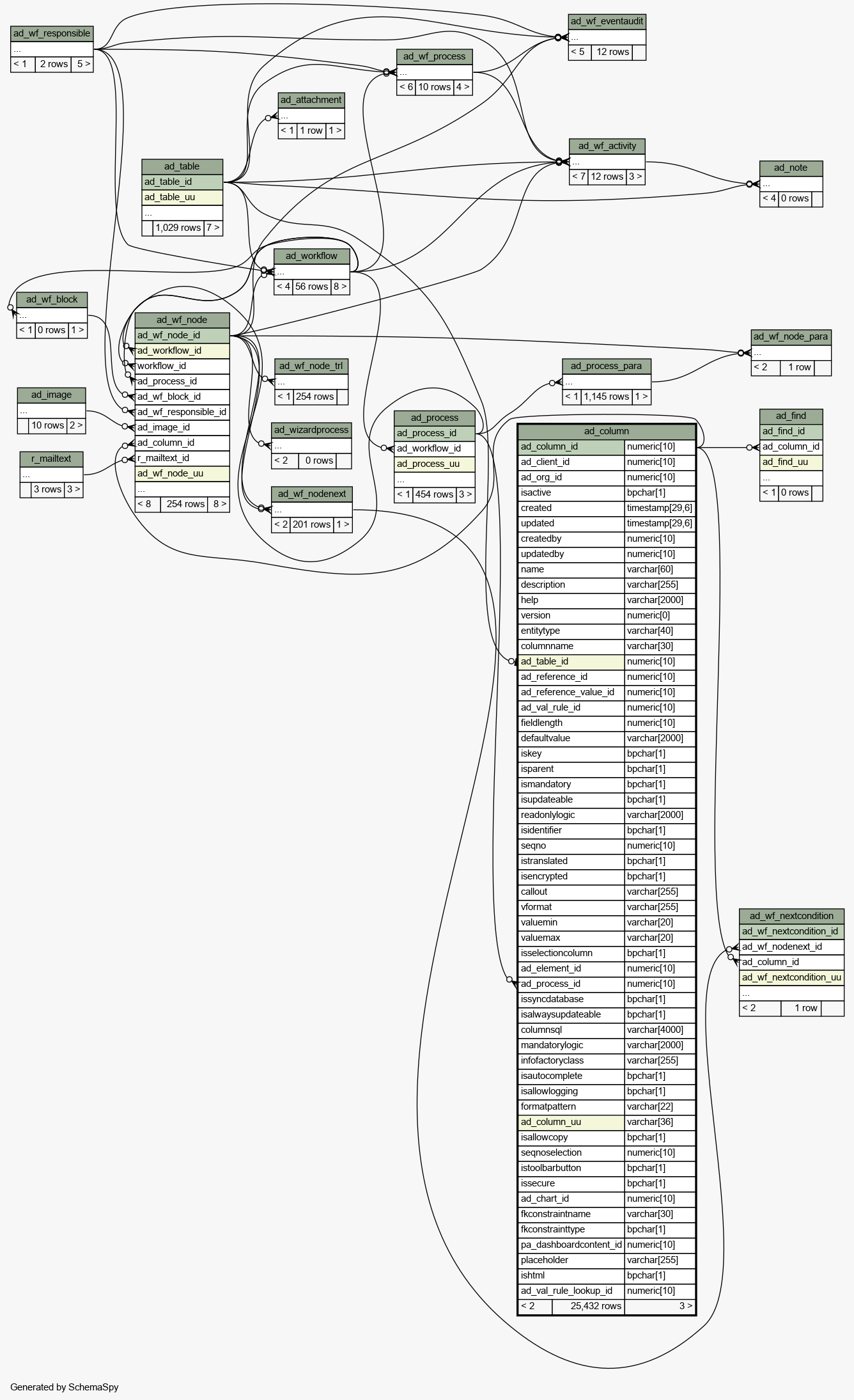

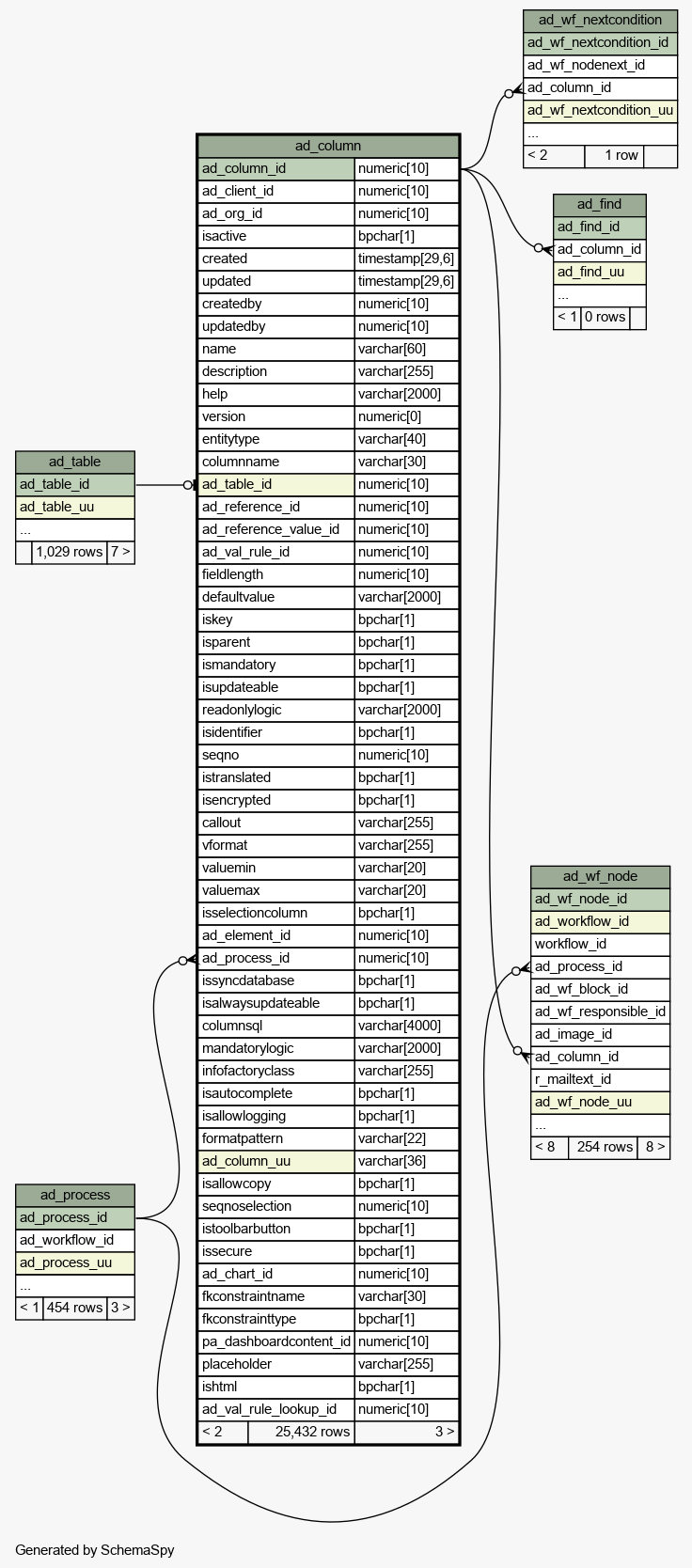

Close relationships  within of separation:
