Table idempiere9.adempiere.ad_form
Special Form

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_form_id numeric 10
ad_process.ad_form_id adform_adprocess R
asp_clientexception.ad_form_id adform_aspclientexception R
asp_form.ad_form_id adform_aspform R
Special Form
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
accesslevel bpchar 1 Access Level required
classname varchar 60  √  null Java Classname
entitytype varchar 40 'D'::character varying Dictionary Entity Type; Determines ownership and synchronization
isbetafunctionality bpchar 1 'N'::bpchar This functionality is considered Beta
jspurl varchar 120  √  null Web URL of the jsp function
ad_form_uu varchar 36  √  NULL::character varying AD_Form_UU
ad_ctxhelp_id numeric 10  √  NULL::numeric Context Help

Table contained 48 rows at 2021-12-25 14:57 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_form_id Primary key Asc ad_form_pkey
ad_form_uu Must be unique Asc ad_form_uu_idx

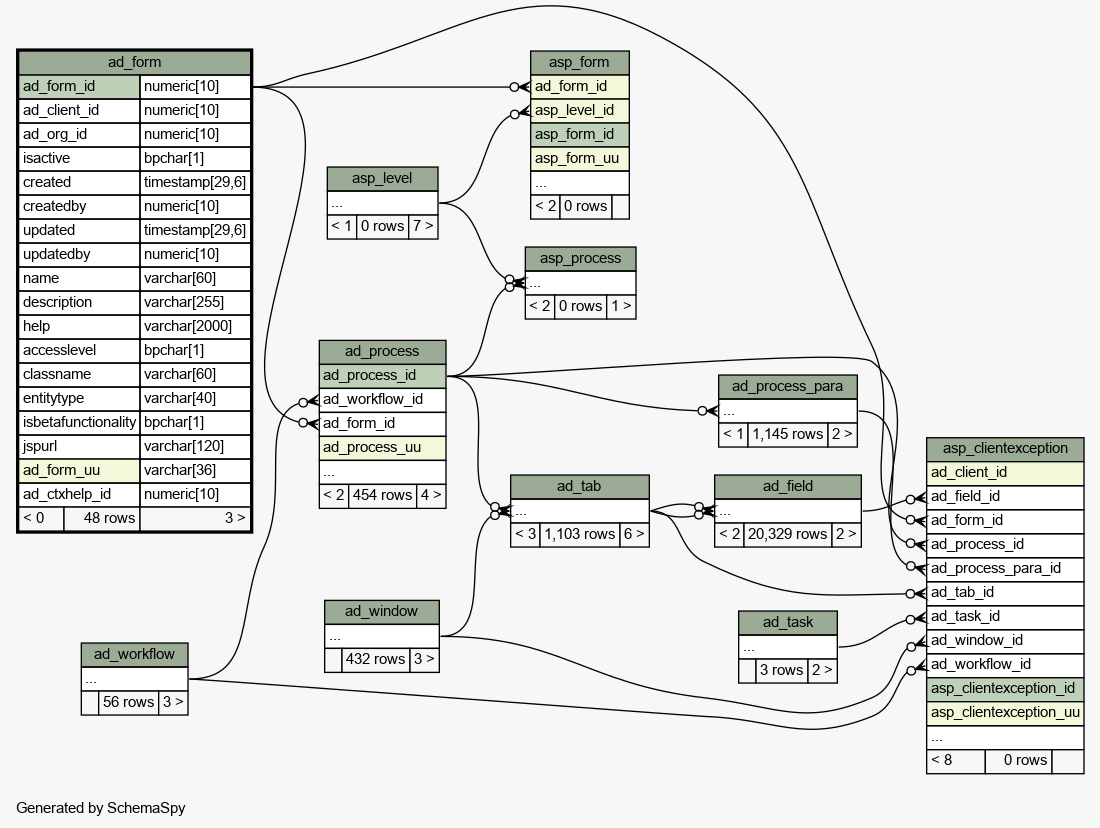

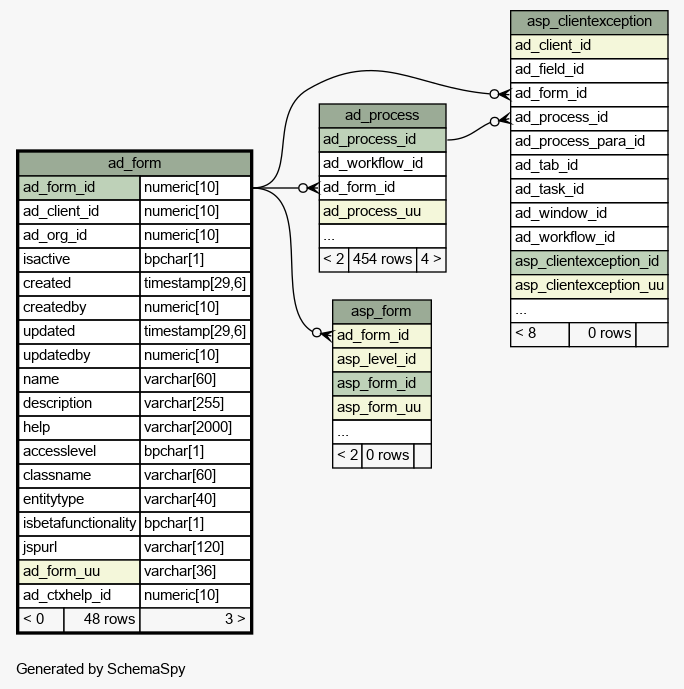

Close relationships  within of separation:
