Table idempiere9.adempiere.m_attributesetinstance
Product Attribute Set Instance

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_attributesetinstance_id numeric 10
c_rfqline.m_attributesetinstance_id masetinstance_crfqline R
m_product.m_attributesetinstance_id mattrsetinst_mproduct R
Product Attribute Set Instance
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
m_attributeset_id numeric 10  √  null Product Attribute Set
serno varchar 40  √  null Product Serial Number
lot varchar 40  √  null Lot number (alphanumeric)
guaranteedate timestamp 29,6  √  null Date when guarantee expires
description varchar 255  √  null Optional short description of the record
m_lot_id numeric 10  √  null Product Lot Definition
m_attributesetinstance_uu varchar 36  √  NULL::character varying M_AttributeSetInstance_UU

Table contained 4 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_attributesetinstance_id Primary key Asc m_attributesetinstance_pkey
m_attributesetinstance_uu Must be unique Asc m_attributesetinstance_uu_idx

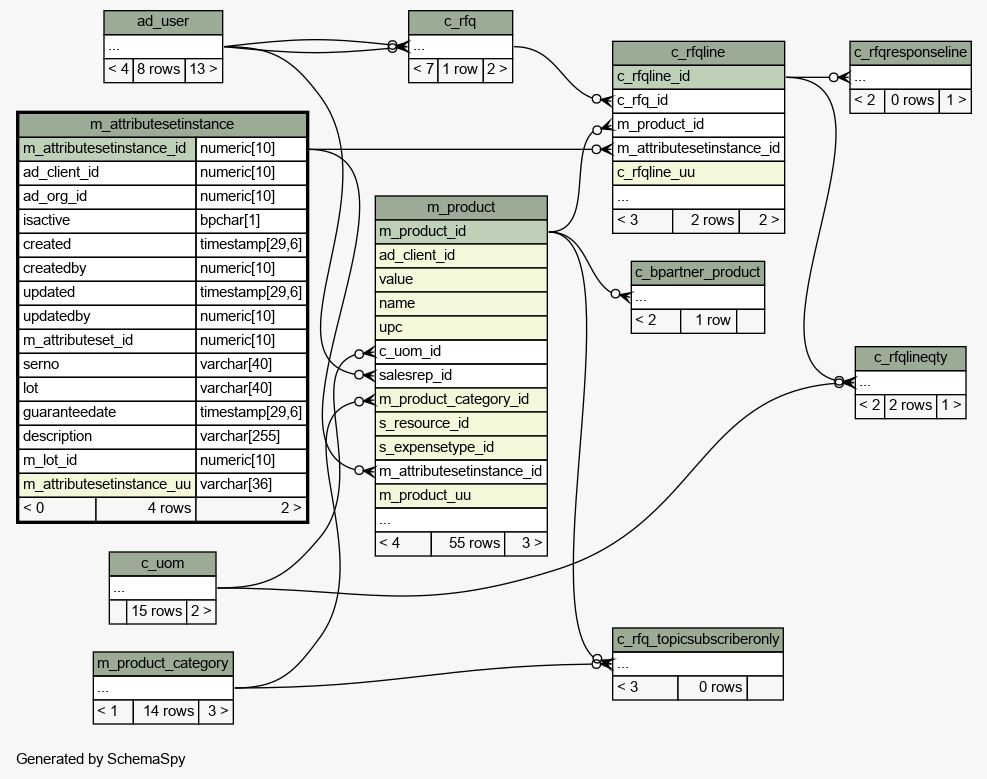

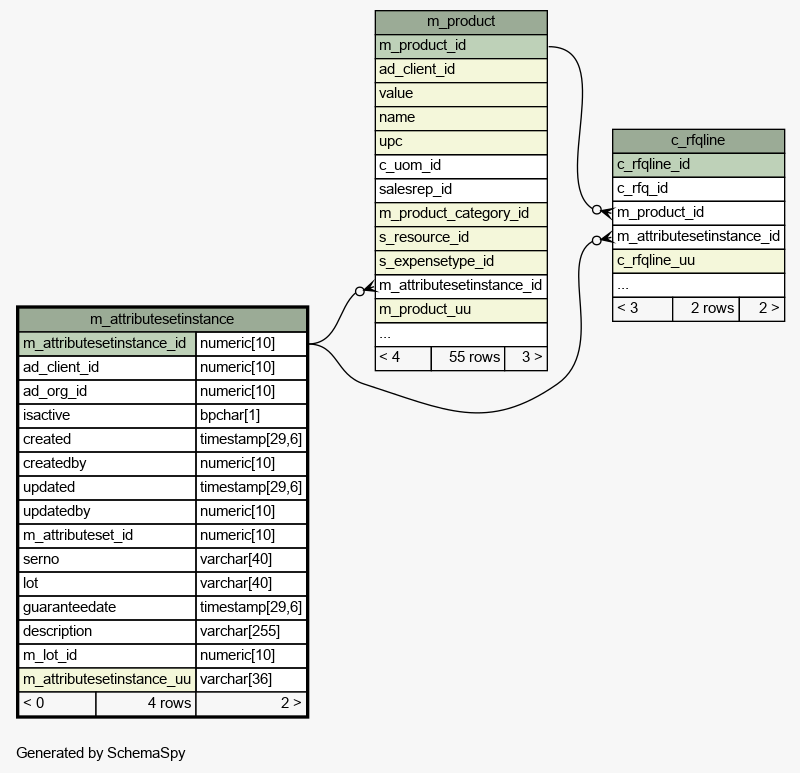

Close relationships  within of separation:
