Table idempiere9.adempiere.m_requisitionline
Material Requisition Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_requisitionline_id numeric 10
m_demanddetail.m_requisitionline_id mreqline_mdemanddetail C
Material Requisition Line
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
line numeric 10 Unique line for this document
m_requisition_id numeric 10
m_requisition.m_requisition_id mrequisition_mrequisitionline C
Material Requisition
qty numeric 0 0 Quantity
m_product_id numeric 10  √  null
m_product.m_product_id mproduct_mrequisitionline R
Product, Service, Item
description varchar 255  √  null Optional short description of the record
priceactual numeric 0 0 Actual Price
linenetamt numeric 0 0 Line Extended Amount (Quantity * Actual Price) without Freight and Charges
c_orderline_id numeric 10  √  null
c_orderline.c_orderline_id corderline_mrequisitionline R
Sales Order Line
m_attributesetinstance_id numeric 0  √  null Product Attribute Set Instance
c_charge_id numeric 10  √  null
c_charge.c_charge_id ccharge_mrequisitionline R
Additional document charges
c_bpartner_id numeric 10  √  NULL::numeric
c_bpartner.c_bpartner_id cbpartner_mrequisitionline R
Identifies a Business Partner
c_uom_id numeric 10  √  NULL::numeric Unit of Measure
m_requisitionline_uu varchar 36  √  NULL::character varying M_RequisitionLine_UU

Table contained 1 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_requisitionline_id Primary key Asc m_requisitionline_pkey
m_requisitionline_uu Must be unique Asc m_requisitionline_uu_idx

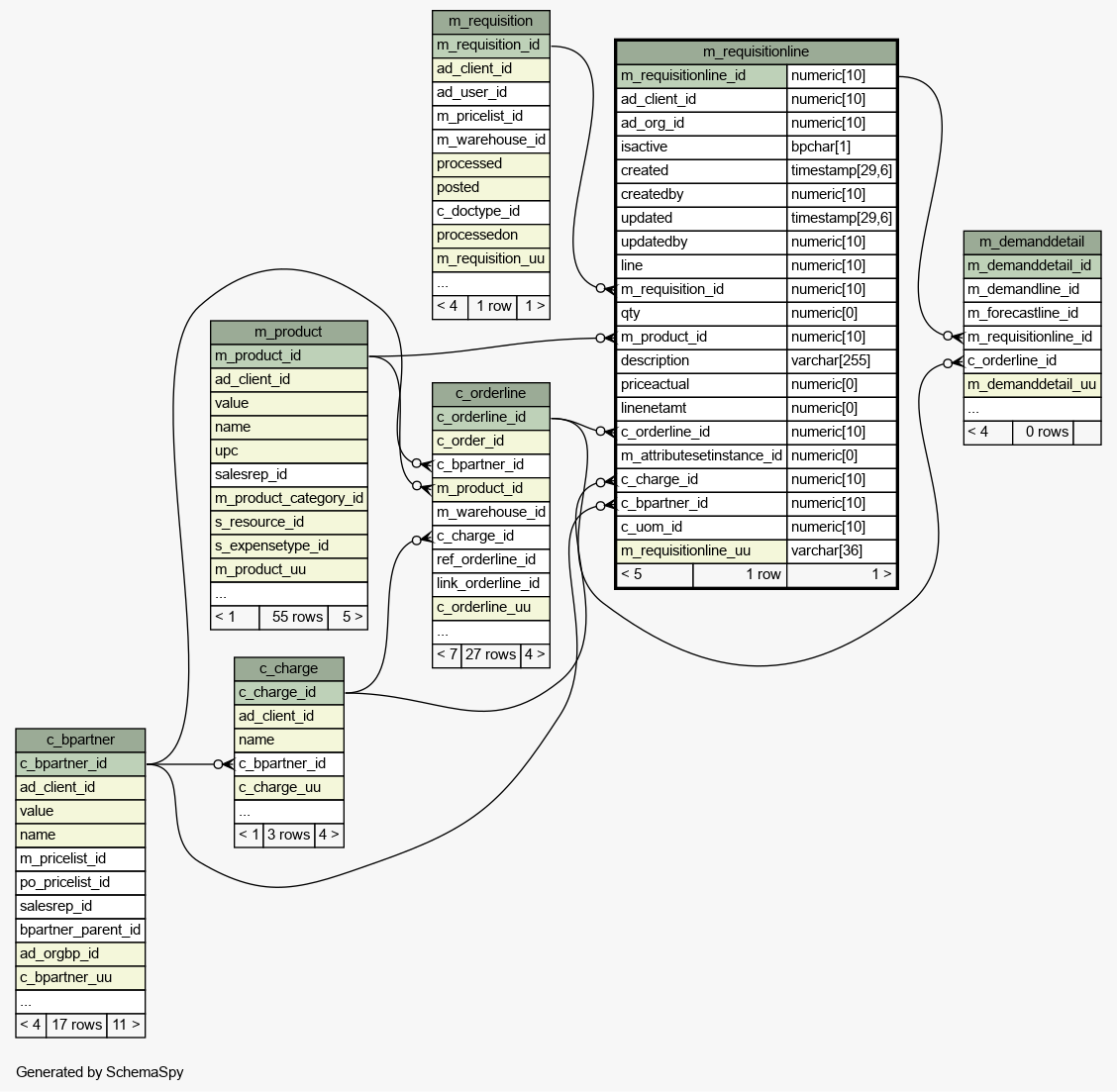

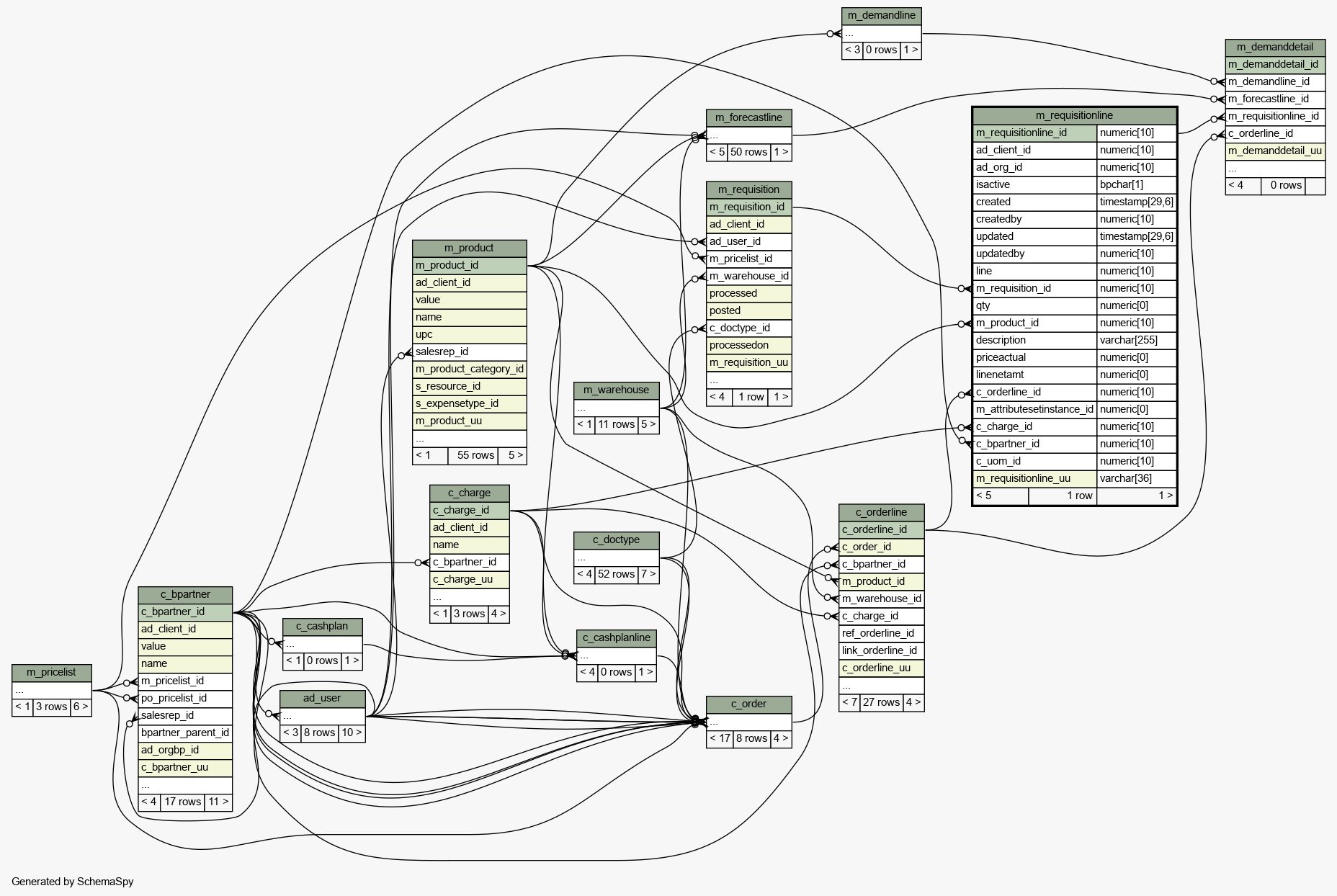

Close relationships  within of separation:
