Table idempiere9.adempiere.m_changenotice
Change Notice

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_changenotice_id numeric 10
m_changerequest.m_changenotice_id mcn_mcr R
m_changerequest.m_fixchangenotice_id mfixchangenotice_mchangereques R
r_group.m_changenotice_id mchangenotice_rgroup R
r_request.m_fixchangenotice_id mfixchangenotice_rrequest R
Bill of Materials (Engineering) Change Notice (Version)
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
detailinfo text 2147483647  √  null Additional Detail Information
processing bpchar 1  √  null Process Now
processed bpchar 1 'N'::bpchar The document has been processed
isapproved bpchar 1 'N'::bpchar Indicates if this document requires approval
m_changenotice_uu varchar 36  √  NULL::character varying M_ChangeNotice_UU

Table contained 1 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_changenotice_id Primary key Asc m_changenotice_pkey
m_changenotice_uu Must be unique Asc m_changenotice_uu_idx

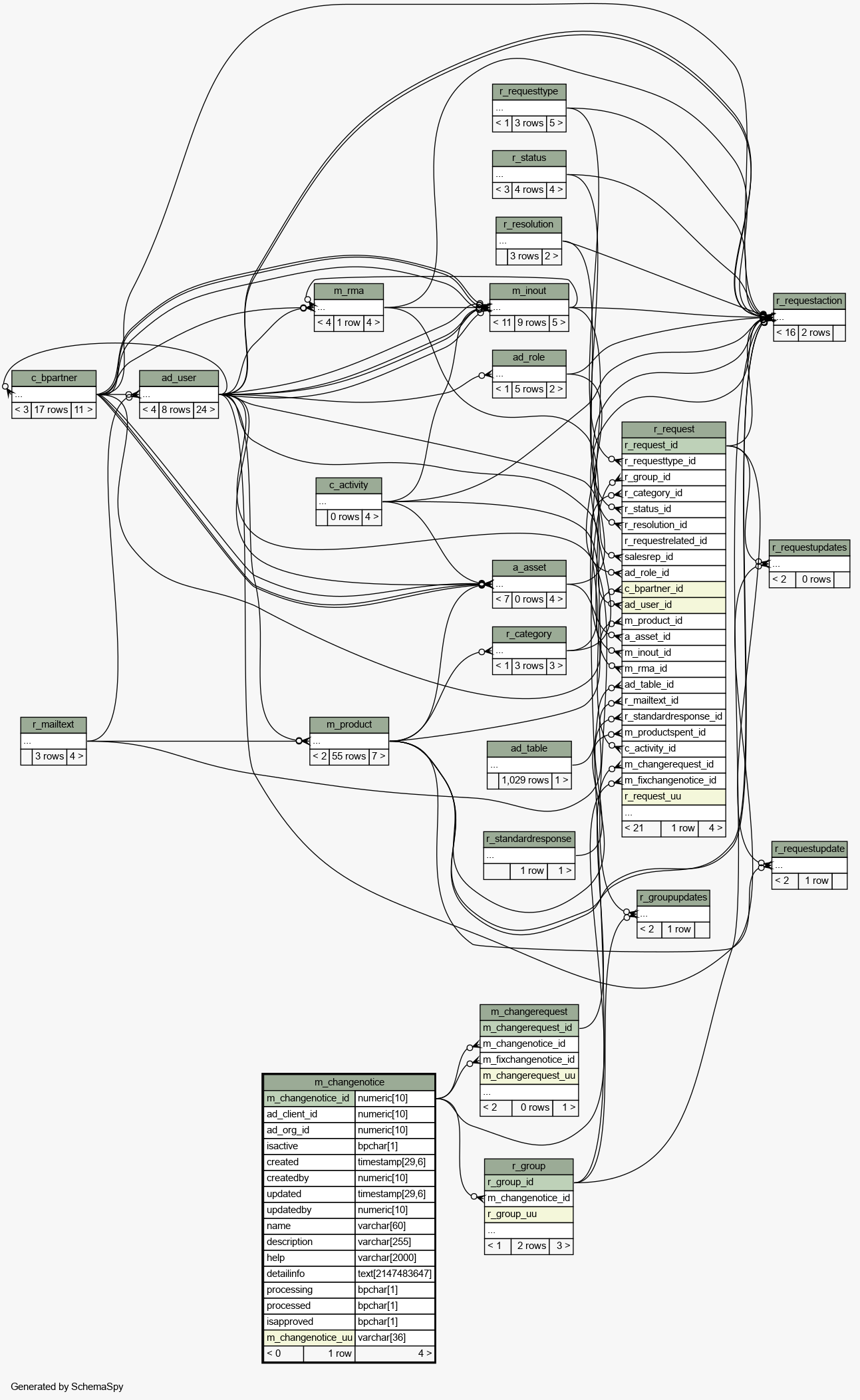

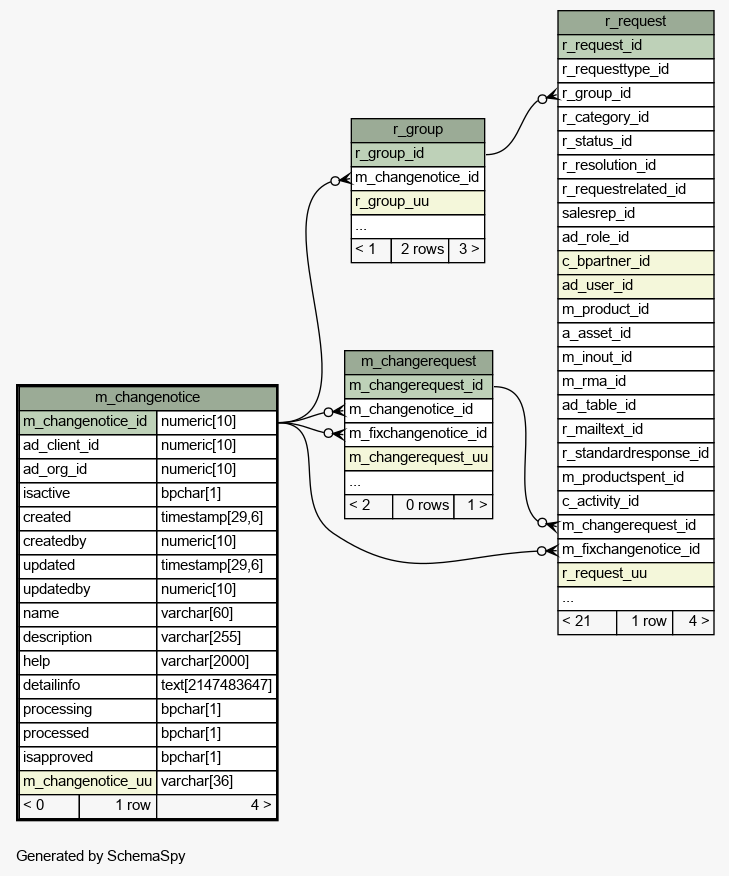

Close relationships  within of separation:
