Table idempiere9.adempiere.ad_viewcomponent
Database View Component

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_table_id numeric 10
ad_table.ad_table_id adtable_adviewcomponent R
Database Table information
ad_viewcomponent_id numeric 10
ad_viewcolumn.ad_viewcomponent_id adviewcomponent_adviewcolumn R
Database View Component
ad_viewcomponent_uu varchar 36  √  NULL::character varying AD_ViewComponent_UU
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
fromclause varchar 2000 NULL::character varying SQL FROM clause
help varchar 2000  √  NULL::character varying Comment or Hint
isactive bpchar 1 The record is active in the system
name varchar 50 Alphanumeric identifier of the entity
otherclause varchar 2000  √  NULL::character varying Other SQL Clause
referenced_table_id numeric 10  √  NULL::numeric
ad_table.ad_table_id referencedtable_adviewcomponen R
Referenced Table
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
whereclause varchar 2000  √  NULL::character varying Fully qualified SQL WHERE clause
isunionall bpchar 1 'N'::bpchar The component view is UNION ALL

Table contained 215 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_viewcomponent_id Primary key Asc ad_viewcomponent_key
ad_viewcomponent_uu Must be unique Asc ad_viewcomponent_uu_idx

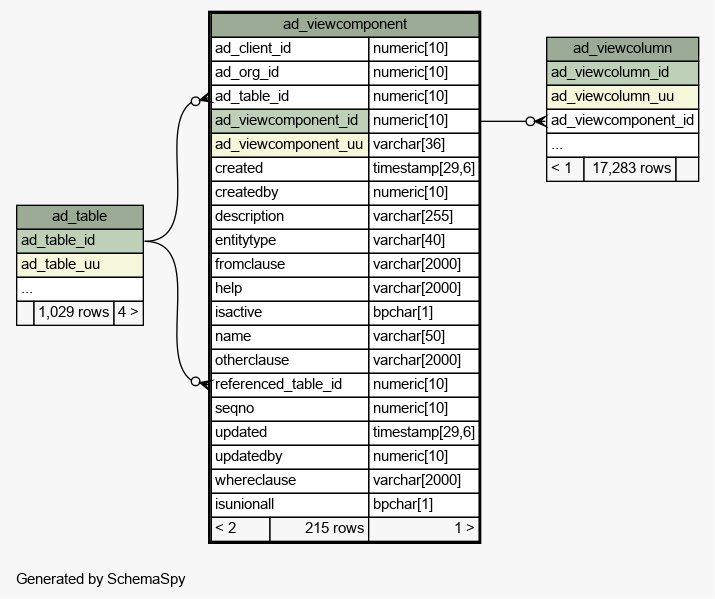

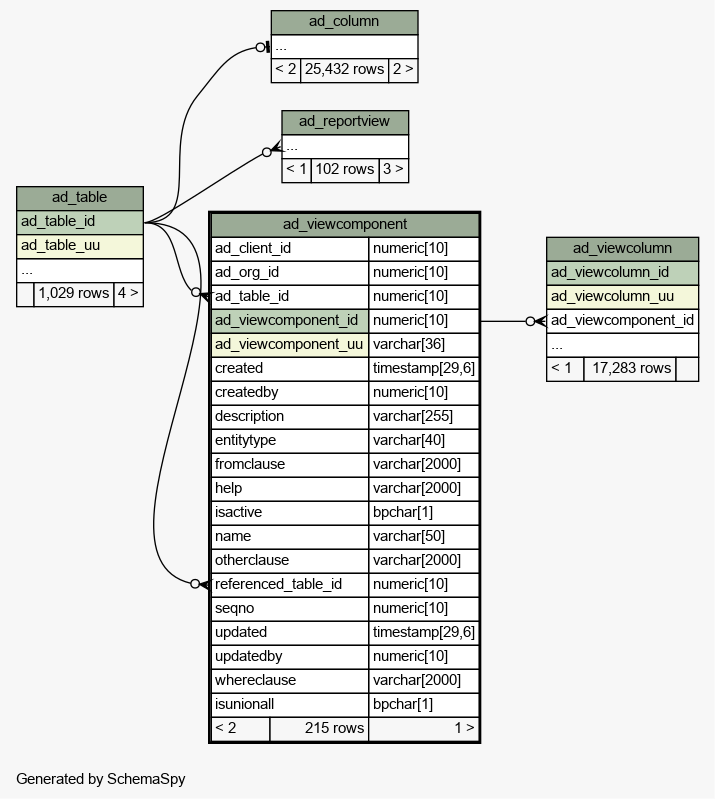

Close relationships  within of separation:
