Table idempiere9.adempiere.ad_entitytype
System Entity Type

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
entitytype varchar 40 'D'::character varying
ad_modification.entitytype adenritytype_admodification R
ad_process_para.entitytype entityt_adprocesspara R
ad_reference.entitytype entityt_adreference R
Dictionary Entity Type; Determines ownership and synchronization
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_entitytype_id numeric 10 System Entity Type
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
version varchar 20  √  null Version of the table definition
modelpackage varchar 255  √  null Java Package of the model classes
classpath varchar 255  √  null Extension Classpath
processing bpchar 1  √  null Process Now
ad_entitytype_uu varchar 36  √  NULL::character varying AD_EntityType_UU

Table contained 12 rows at 2021-12-25 14:55 +0100

Indexes:
Column(s) Type Sort Constraint Name
entitytype Primary key Asc ad_entitytype_pkey
ad_entitytype_id Must be unique Asc ad_entitytype_id_unq
ad_entitytype_uu Must be unique Asc ad_entitytype_uu_idx

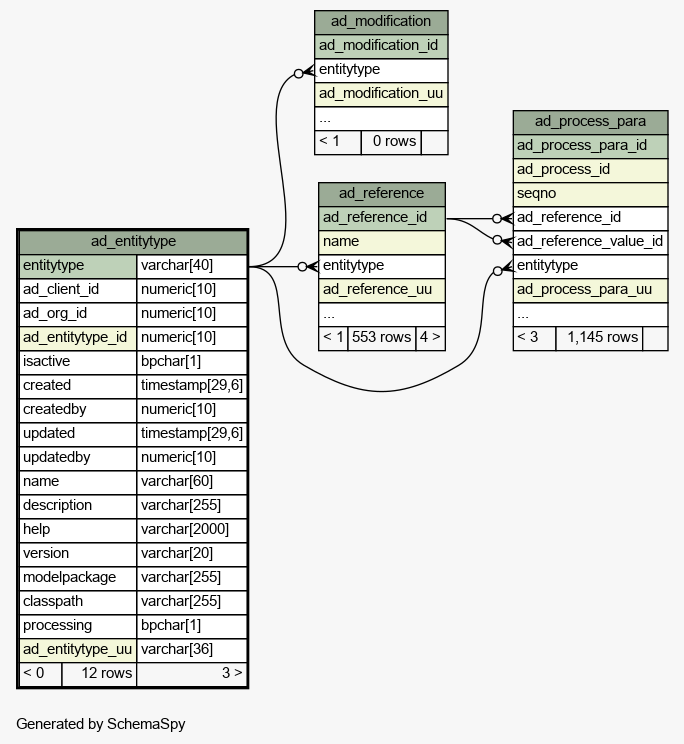

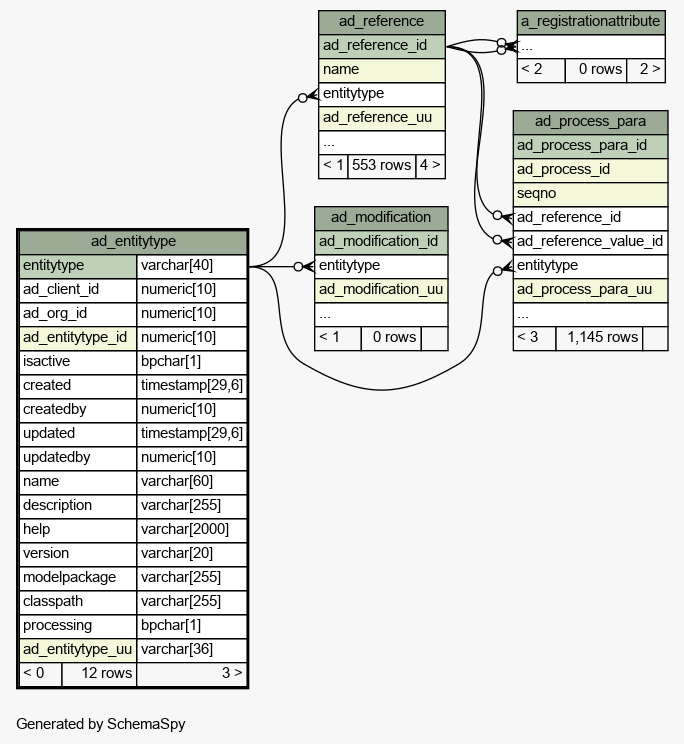

Close relationships  within of separation:
