Table idempiere9.adempiere.c_projecttask
Actual Project Task in a Phase

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_projecttask_id numeric 10
c_invoiceline.c_projecttask_id cprojecttask_cinvoiceline N
c_orderline.c_projecttask_id cprojecttask_corderline N
c_projectline.c_projecttask_id cprojecttask_cprojectline N
m_inoutline.c_projecttask_id cprojecttask_minoutline R
s_timeexpenseline.c_projecttask_id cprojecttask_stimeexpenseline R
Actual Project Task in a Phase
c_task_id numeric 10  √  null
c_task.c_task_id ctask_cprojecttask R
Standard Project Type Task
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10 Method of ordering records; lowest number comes first
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
m_product_id numeric 10  √  null
m_product.m_product_id mproduct_cprojecttask R
Product, Service, Item
c_projectphase_id numeric 10
c_projectphase.c_projectphase_id cprojectphase_cprojecttask C
Phase of a Project
qty numeric 0  √  0 Quantity
projinvoicerule bpchar 1  √  null Invoice Rule for the project
plannedamt numeric 0 0 Planned amount for this project
committedamt numeric 0 0 The (legal) commitment amount
c_projecttask_uu varchar 36  √  NULL::character varying C_ProjectTask_UU

Table contained 0 rows at 2021-12-25 14:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_projecttask_id Primary key Asc c_projecttask_pkey
c_projecttask_uu Must be unique Asc c_projecttask_uu_idx

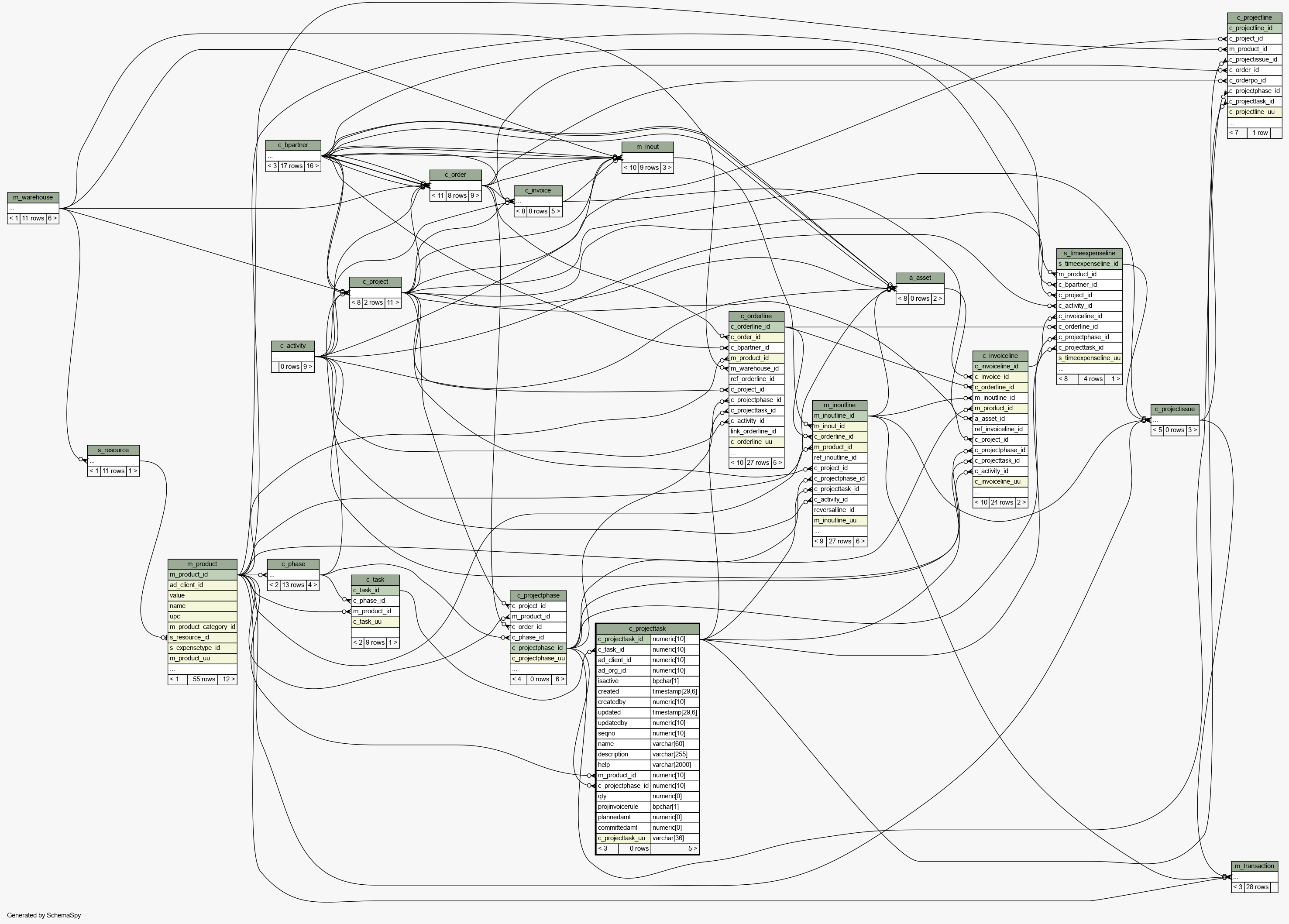

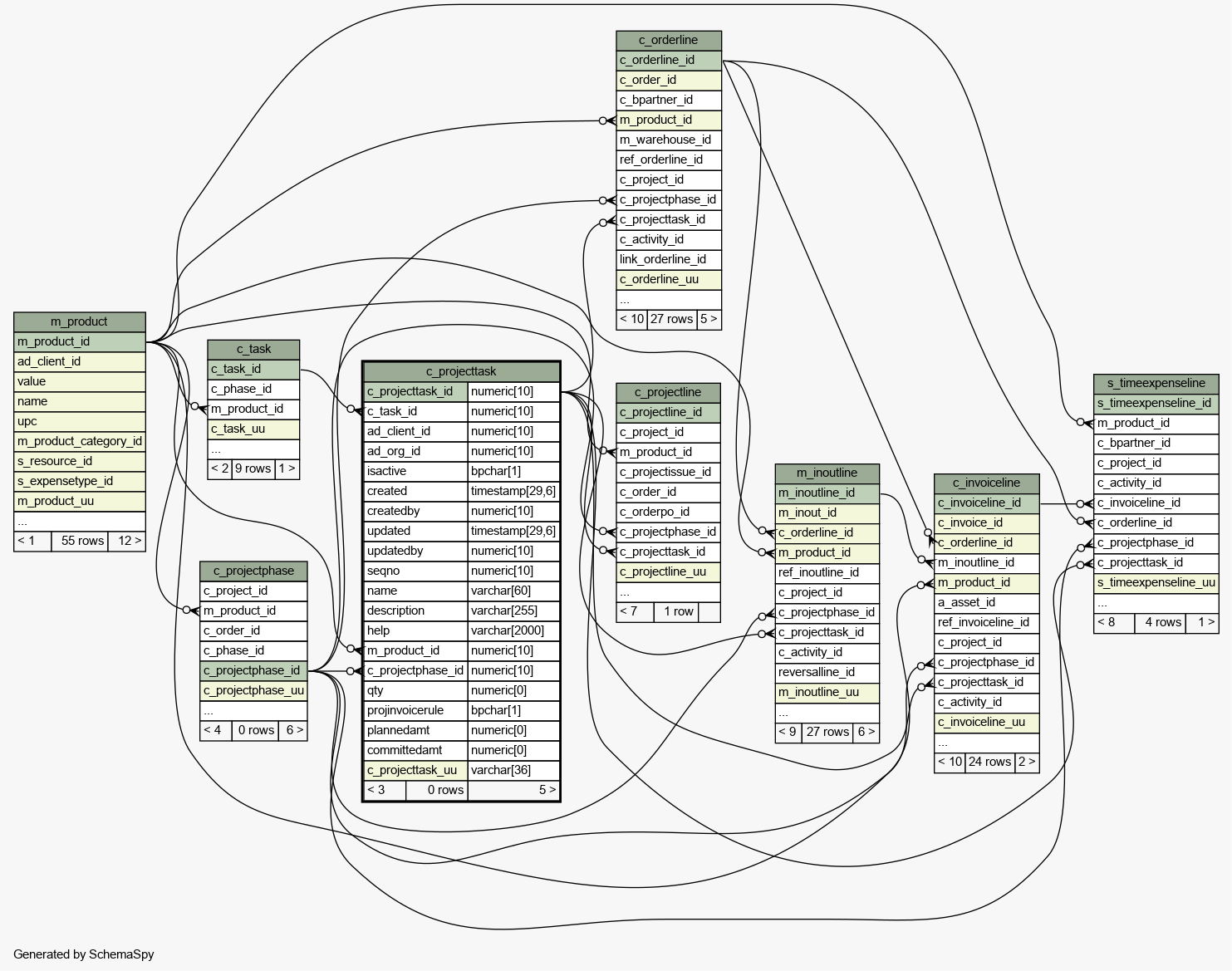

Close relationships  within of separation:
