Table idempiere9.adempiere.m_sernoctl
Product Serial Number Control

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_sernoctl_id numeric 10
m_attributeset.m_sernoctl_id msernoctl_attributeset R
m_sernoctlexclude.m_sernoctl_id msernoctl_msernoctlexclude R
Product Serial Number Control
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
startno numeric 10 Starting number/position
incrementno numeric 10 The number to increment the last document number by
currentnext numeric 10 The next number to be used
prefix varchar 10  √  null Prefix before the sequence number
suffix varchar 10  √  null Suffix after the number
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
m_sernoctl_uu varchar 36  √  NULL::character varying M_SerNoCtl_UU

Table contained 1 rows at 2021-12-25 14:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_sernoctl_id Primary key Asc m_sernoctl_pkey
m_sernoctl_uu Must be unique Asc m_sernoctl_uu_idx

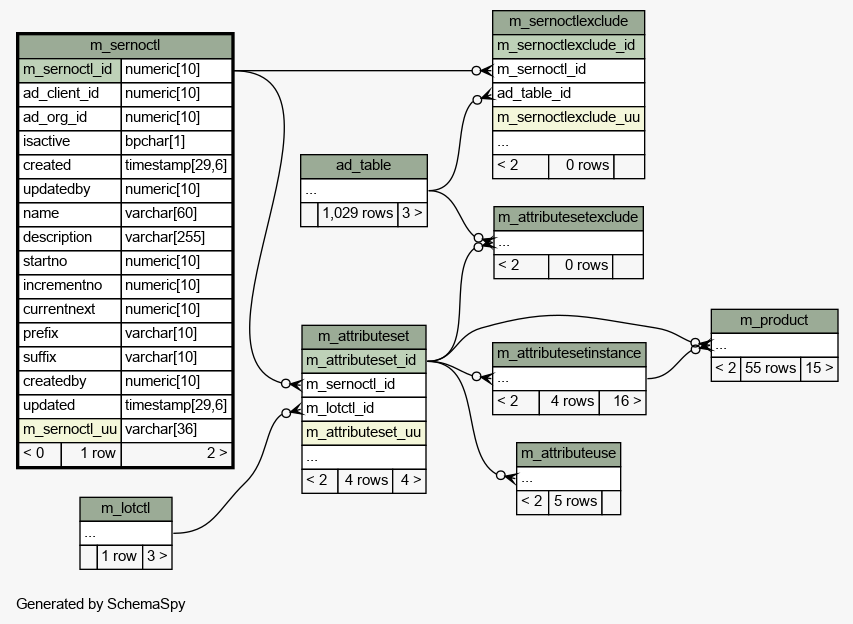

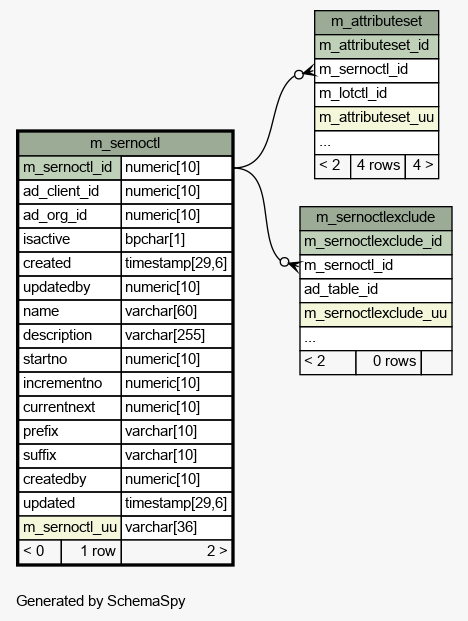

Close relationships  within of separation:
