Table idempiere9.adempiere.m_attributeinstance
M_AttributeInstance

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_attributesetinstance_id numeric 10 0
m_attributesetinstance.m_attributesetinstance_id mattrsetinst__mattrinst C
Product Attribute Set Instance
m_attribute_id numeric 10
m_attribute.m_attribute_id mattribute_mattributeinst R
Product Attribute
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
m_attributevalue_id numeric 10  √  null
m_attributevalue.m_attributevalue_id mattributevalue_mattrinst R
Product Attribute Value
value varchar 40  √  null Search key for the record in the format required - must be unique
valuenumber numeric 0  √  null Numeric Value
m_attributeinstance_uu varchar 36  √  NULL::character varying M_AttributeInstance_UU
valuedate timestamp 29,6  √  null Value Date

Table contained 5 rows at 2021-12-25 14:54 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_attributesetinstance_id + m_attribute_id Primary key Asc/Asc m_attributeinstance_pkey
m_attributeinstance_uu Must be unique Asc m_attributeinstance_uu_idx

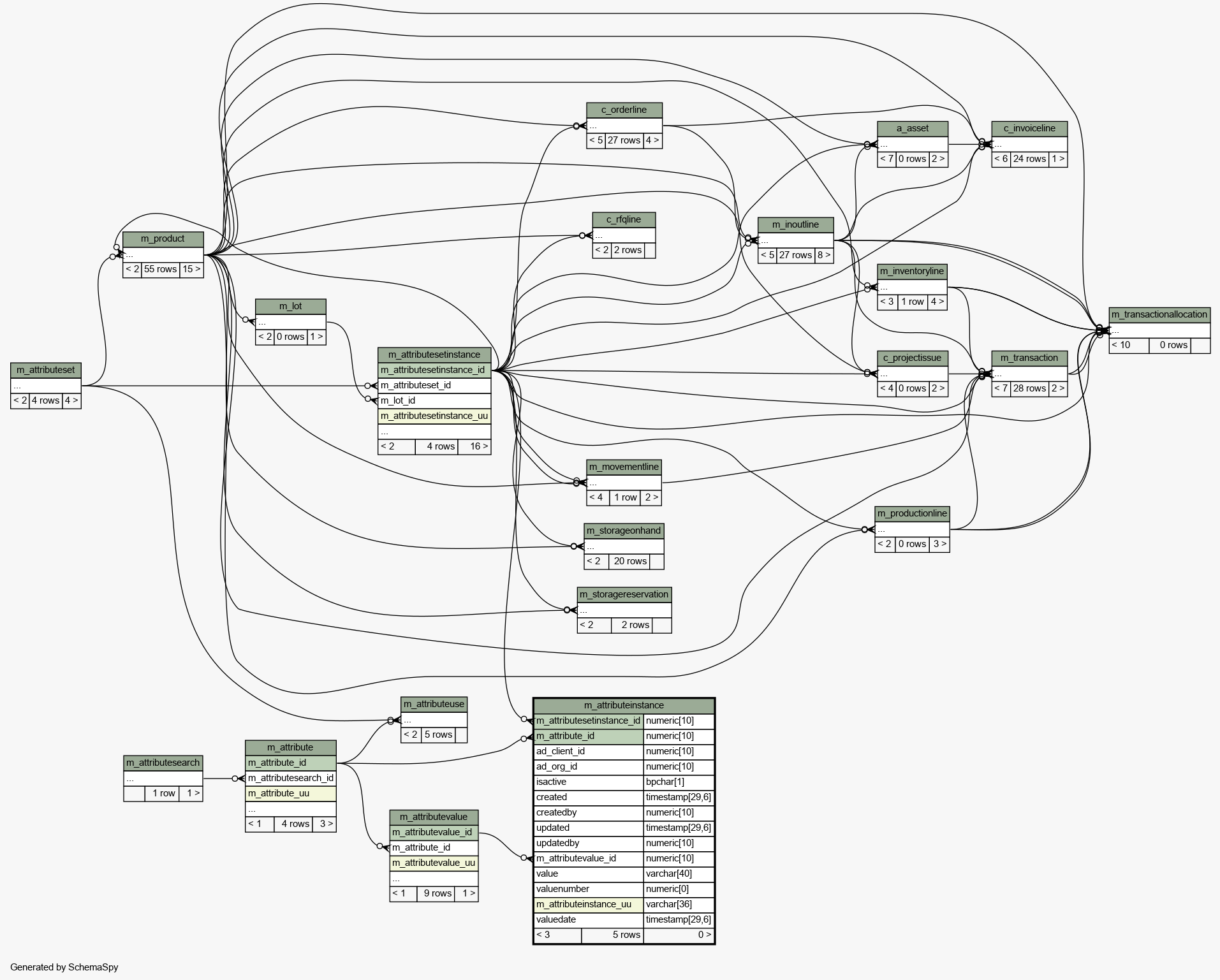

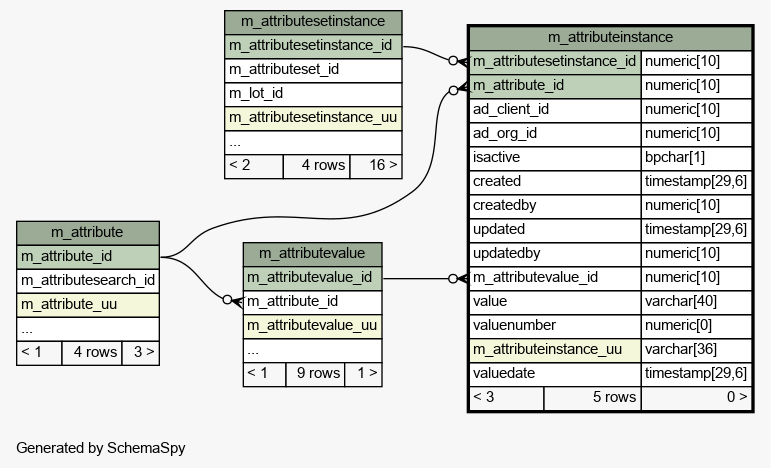

Close relationships  within of separation:
