Table idempiere9.adempiere.ad_printpaper
Printer paper definition

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_printpaper_id numeric 10
ad_language.ad_printpaper_id adprintpaper_adlanguage R
ad_printformat.ad_printpaper_id adprintpaper_adprintformat R
Printer paper definition
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
isdefault bpchar 1 'N'::bpchar Default value
islandscape bpchar 1 'Y'::bpchar Landscape orientation
code varchar 2000 Validation Code
margintop numeric 10 36 Top Space in 1/72 inch
marginleft numeric 10 36 Left Space in 1/72 inch
marginright numeric 10 36 Right Space in 1/72 inch
marginbottom numeric 10 36 Bottom Space in 1/72 inch
processing bpchar 1  √  null Process Now
sizex numeric 0  √  null X (horizontal) dimension size
sizey numeric 0  √  null Y (vertical) dimension size
dimensionunits bpchar 1  √  null Units of Dimension
ad_printpaper_uu varchar 36  √  NULL::character varying AD_PrintPaper_UU

Table contained 4 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_printpaper_id Primary key Asc ad_printpaper_pkey
ad_client_id + name Must be unique Asc/Asc ad_printpaper_name
ad_printpaper_uu Must be unique Asc ad_printpaper_uu_idx

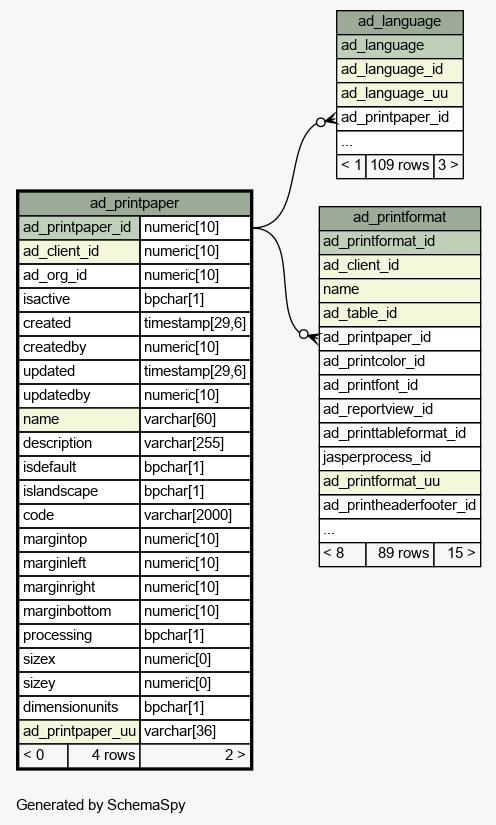

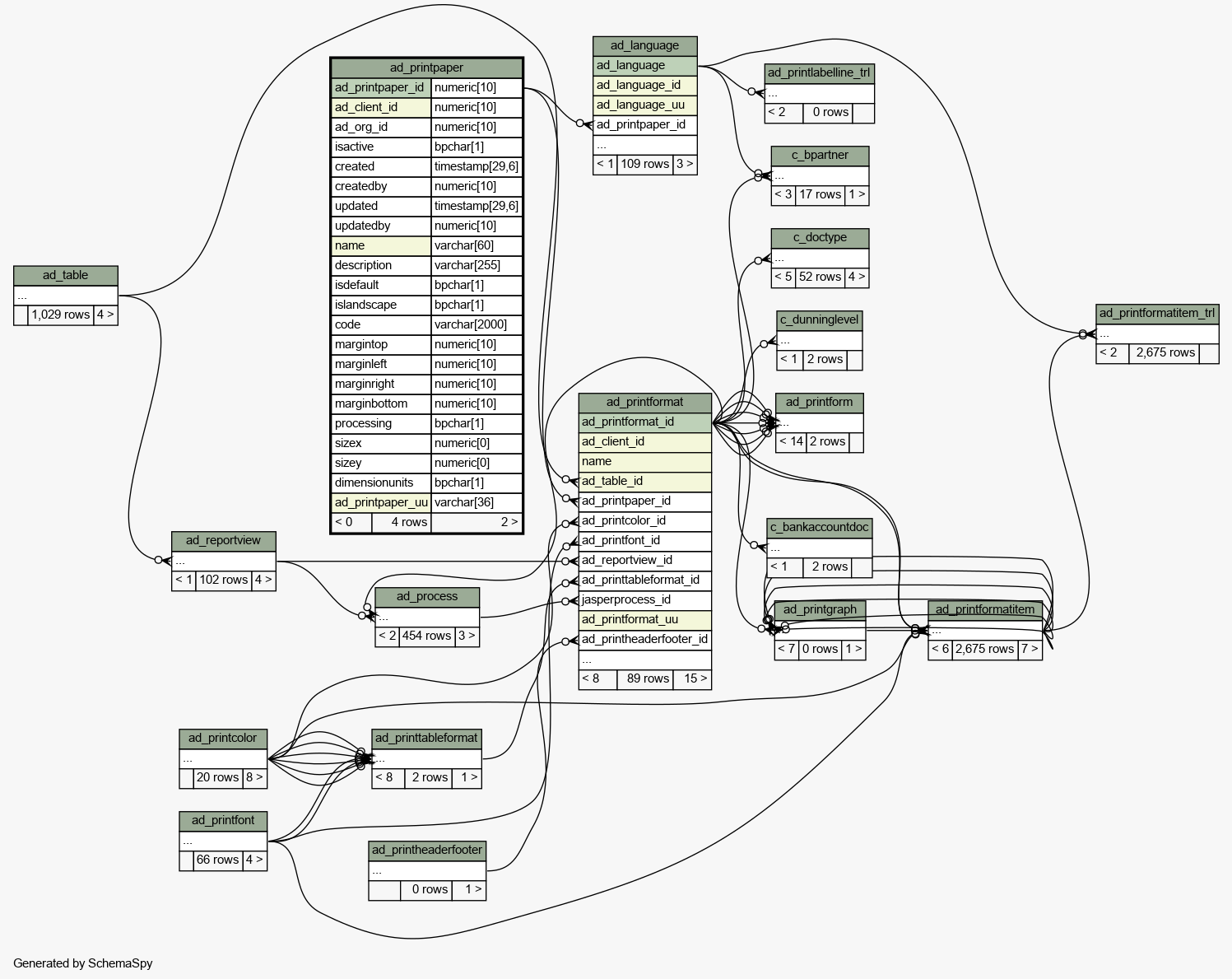

Close relationships  within of separation:
