Table idempiere9.adempiere.ad_printlabelline
Print Label Line Format

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_printlabelline_id numeric 10
ad_printlabelline_trl.ad_printlabelline_id adprintlabelline_trl R
Print Label Line Format
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_printlabel_id numeric 10
ad_printlabel.ad_printlabel_id adprintlabel_adprintlabelline R
Label Format to print
name varchar 60 Alphanumeric identifier of the entity
seqno numeric 10 Method of ordering records; lowest number comes first
labelformattype bpchar 1 Label Format Type
printname varchar 60  √  null The label text to be printed on a document or correspondence.
ad_column_id numeric 10  √  null
ad_column.ad_column_id adcolumn_adprintlabelline R
Column in the table
ad_labelprinterfunction_id numeric 10
ad_labelprinterfunction.ad_labelprinterfunction_id adlabelprintfunc_labelline R
Function of Label Printer
xposition numeric 10 Absolute X (horizontal) position in 1/72 of an inch
yposition numeric 10 Absolute Y (vertical) position in 1/72 of an inch
ad_printlabelline_uu varchar 36  √  NULL::character varying AD_PrintLabelLine_UU

Table contained 0 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_printlabelline_id Primary key Asc ad_printlabelline_pkey
ad_printlabelline_uu Must be unique Asc ad_printlabelline_uu_idx

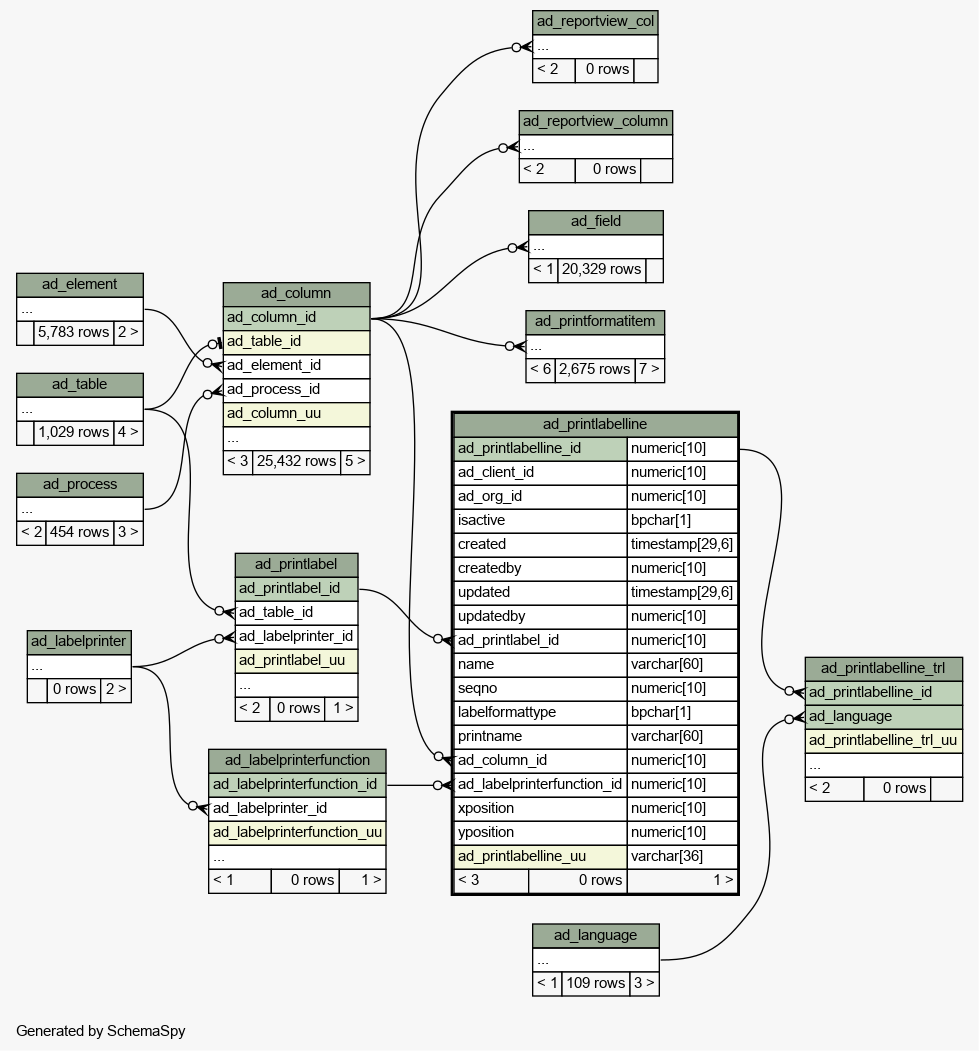

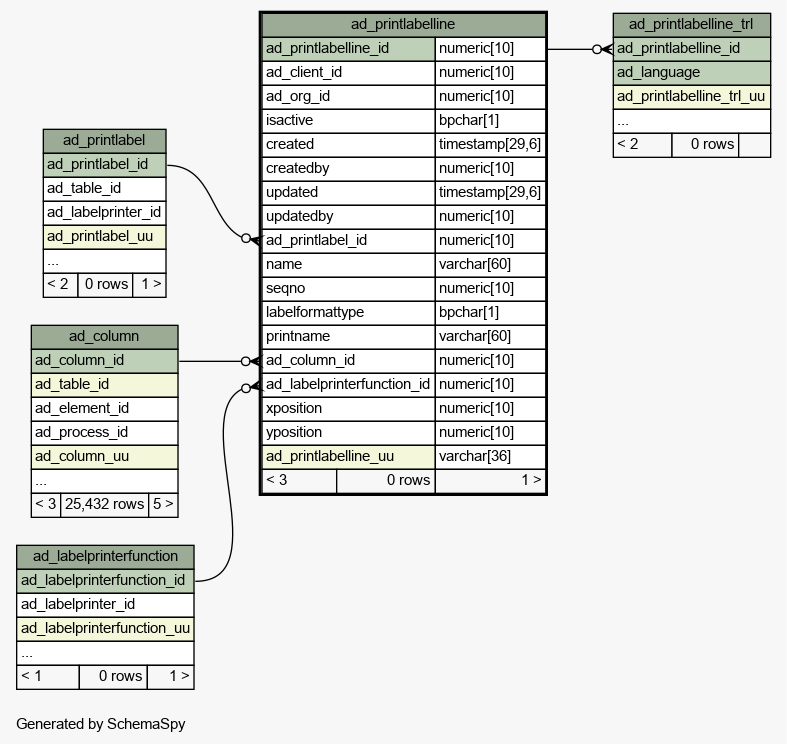

Close relationships  within of separation:
