Table idempiere9.adempiere.ad_printgraph
Graph included in Reports

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_printgraph_id numeric 10
ad_printformatitem.ad_printgraph_id adprintgraph_printformatitem R
Graph included in Reports
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
graphtype bpchar 1 Type of graph to be painted
description_printformatitem_id numeric 10
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdescr R
Description Column for Pie/Line/Bar Charts
data_printformatitem_id numeric 10
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdata R
Data Column for Pie and Line Charts
data1_printformatitem_id numeric 10  √  null
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdata1 R
Data Column for Line Charts
data2_printformatitem_id numeric 10  √  null
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdata2 R
Data Column for Line Charts
data3_printformatitem_id numeric 10  √  null
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdata3 R
Data Column for Line Charts
data4_printformatitem_id numeric 10  √  null
ad_printformatitem.ad_printformatitem_id adprintformatitem_graphdata4 R
Data Column for Line Charts
ad_printformat_id numeric 10
ad_printformat.ad_printformat_id adprintformat_adprintgraph R
Data Print Format
ad_printgraph_uu varchar 36  √  NULL::character varying AD_PrintGraph_UU

Table contained 0 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_printgraph_id Primary key Asc ad_printgraph_pkey
ad_printgraph_uu Must be unique Asc ad_printgraph_uu_idx

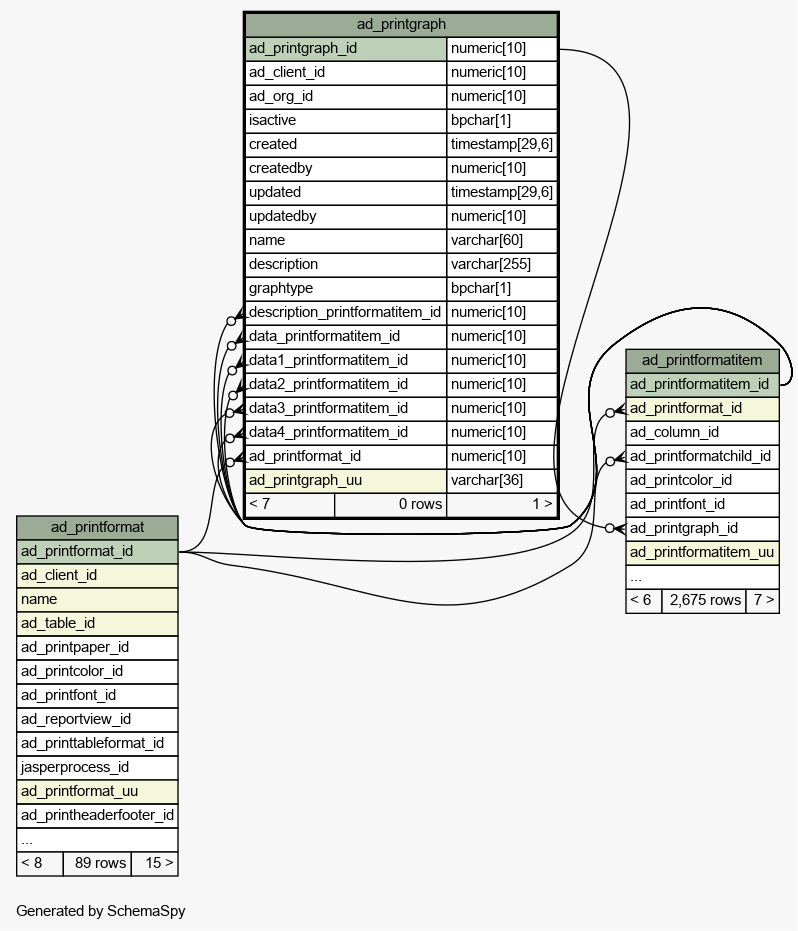

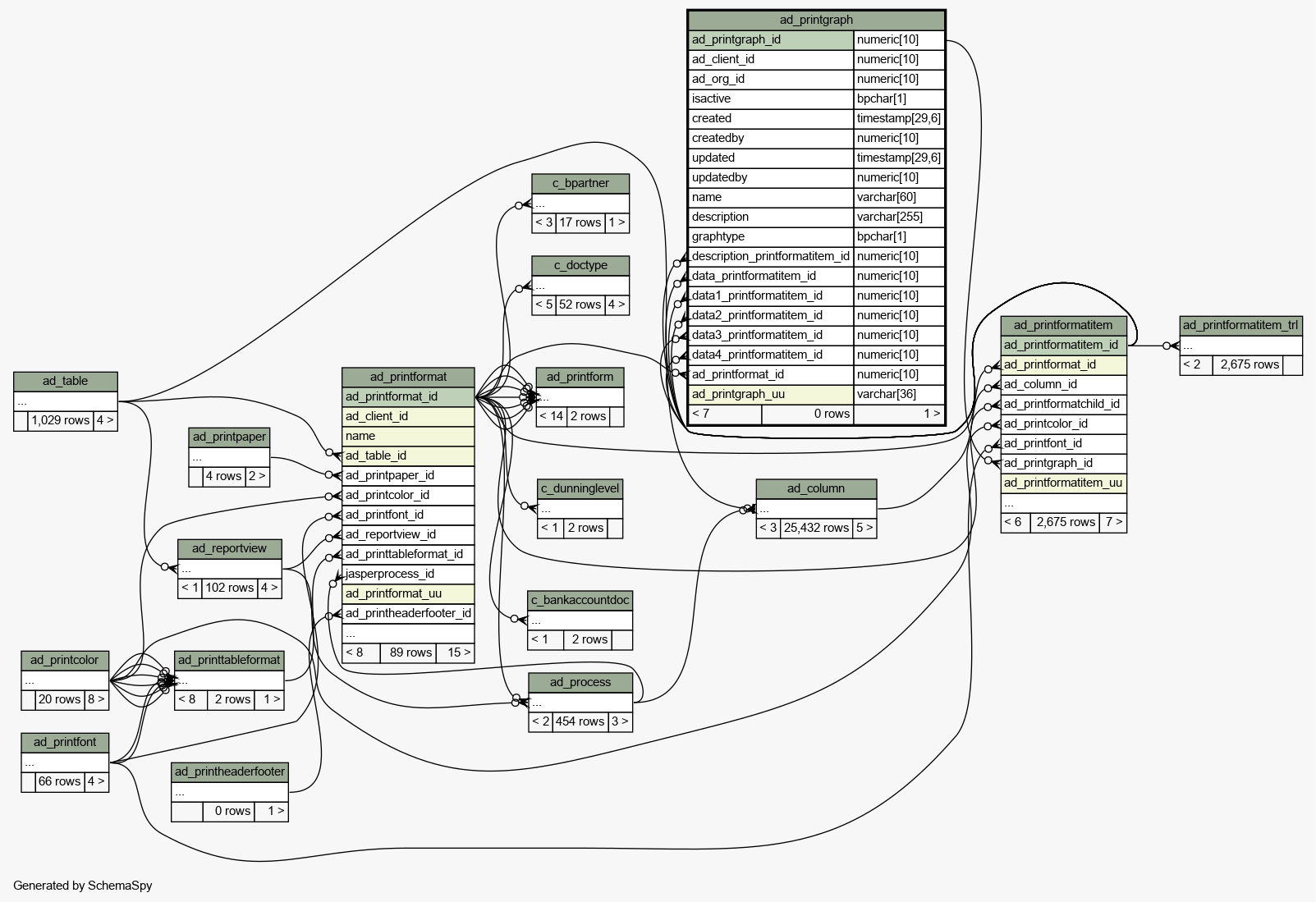

Close relationships  within of separation:
