Table idempiere9.adempiere.pa_documentstatus
Document Status

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pa_documentstatus_id numeric 10
pa_documentstatusaccess.pa_documentstatus_id padocumentstatus_padocstataccs R
Document Status
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_role_id numeric 10  √  null
ad_role.ad_role_id adrole_padocumentstatus C
Responsibility Role
ad_user_id numeric 10  √  null
ad_user.ad_user_id aduser_padocumentstatus R
User within the system - Internal or Business Partner Contact
c_project_id numeric 10  √  null Financial Project
created timestamp 29,6 Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
isactive bpchar 1 'Y'::bpchar The record is active in the system
seqno numeric 10 Method of ordering records; lowest number comes first
name_printcolor_id numeric 10  √  null
ad_printcolor.ad_printcolor_id nameprintcolor_padocumentstatu R
Print Color for Name
name_printfont_id numeric 10  √  null Print Font for Name
number_printcolor_id numeric 10  √  null
ad_printcolor.ad_printcolor_id numberprintcolor_padocumentsta R
Print Color for Number
number_printfont_id numeric 10  √  null Print Font for Number
ad_table_id numeric 10
ad_table.ad_table_id adtable_padocumentstatus R
Database Table information
whereclause varchar 2000  √  null Fully qualified SQL WHERE clause
ad_window_id numeric 10  √  null Data entry or display window
ad_form_id numeric 10  √  null Special Form
pa_documentstatus_uu varchar 36  √  NULL::character varying PA_DocumentStatus_UU
entitytype varchar 40 'U'::character varying Dictionary Entity Type; Determines ownership and synchronization

Table contained 6 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
pa_documentstatus_id Primary key Asc pa_documentstatus_key
pa_documentstatus_uu Must be unique Asc pa_documentstatus_uu_idx

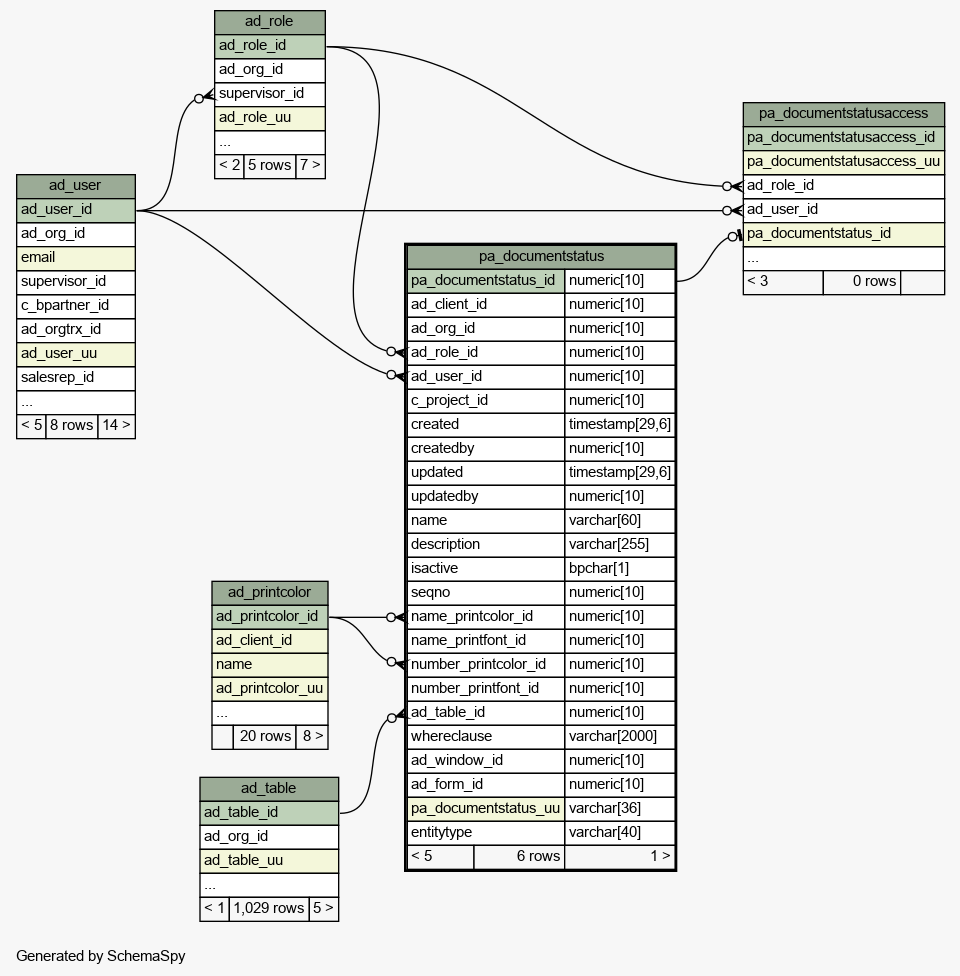

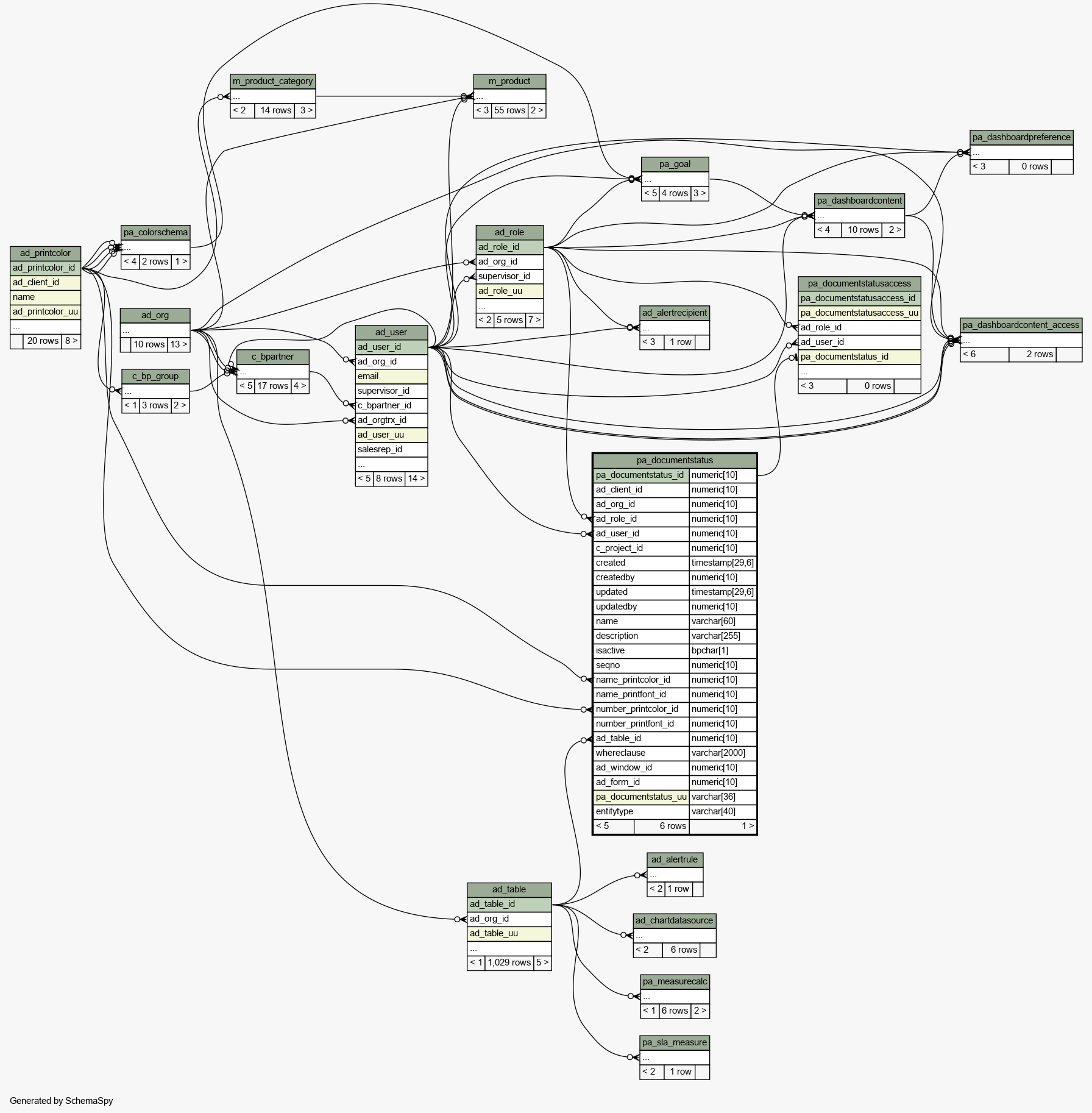

Close relationships  within of separation:
