Table idempiere9.adempiere.ad_alertrule
Definition of the alert element

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_alertrule_id numeric 10 Definition of the alert element
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
ad_alert_id numeric 10
ad_alert.ad_alert_id adaltert_aralertrule R
iDempiere Alert
selectclause varchar 2000 SQL SELECT clause
fromclause varchar 2000 SQL FROM clause
whereclause varchar 2000  √  null Fully qualified SQL WHERE clause
ad_table_id numeric 10  √  null
ad_table.ad_table_id adtable_adaltertrule R
Database Table information
preprocessing varchar 2000  √  null Process SQL before executing the query
postprocessing varchar 2000  √  null Process SQL after executing the query
isvalid bpchar 1 'Y'::bpchar Element is valid
errormsg varchar 2000  √  null Error Msg
otherclause varchar 2000  √  null Other SQL Clause
ad_alertrule_uu varchar 36  √  NULL::character varying AD_AlertRule_UU

Table contained 1 rows at 2021-12-25 14:53 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_alertrule_id Primary key Asc ad_alertrule_pkey
ad_alertrule_uu Must be unique Asc ad_alertrule_uu_idx

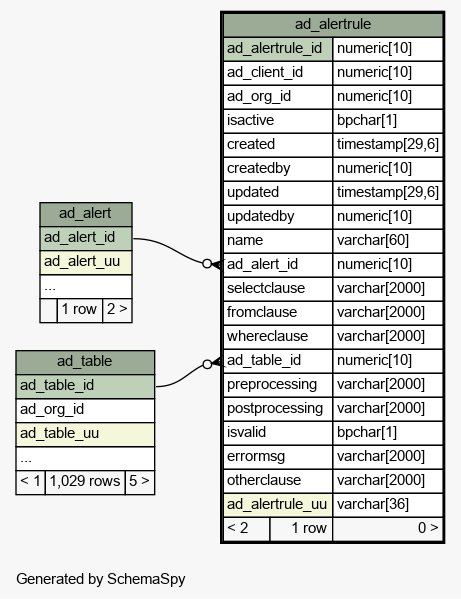

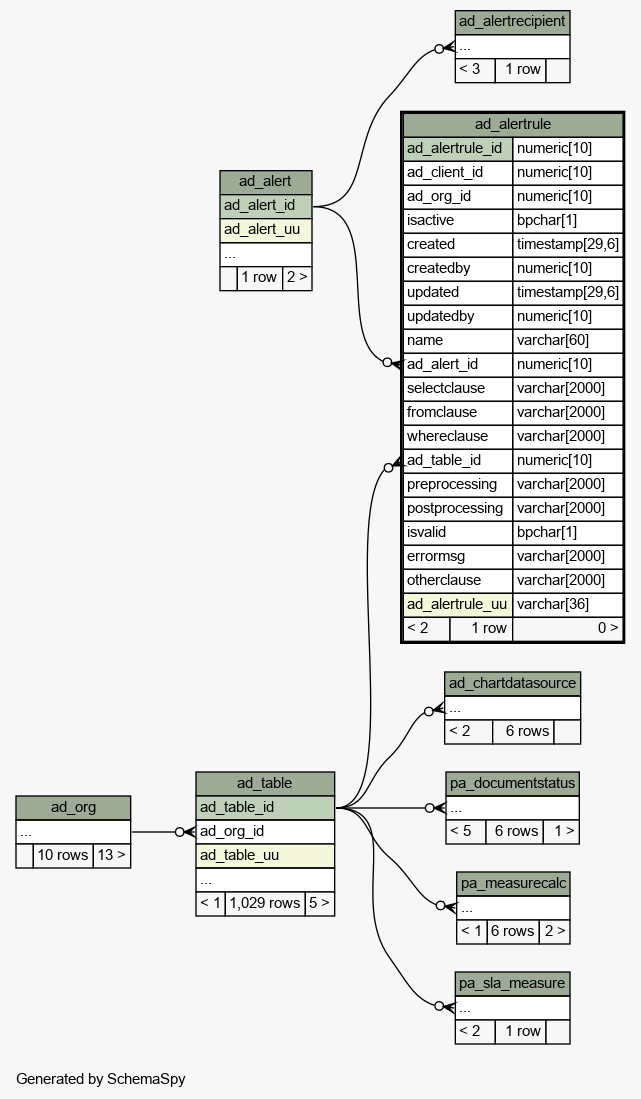

Close relationships  within of separation:
