Table idempiere9.adempiere.t_transaction
T_Transaction

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_pinstance_id numeric 10 Instance of the process
m_transaction_id numeric 10
m_transaction.m_transaction_id mtransaction_ttransaction C
Inventory Transaction
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
movementtype bpchar 2 Method of moving the inventory
m_locator_id numeric 10
m_locator.m_locator_id mlocator_ttransaction C
Warehouse Locator
m_product_id numeric 10
m_product.m_product_id mproduct_ttransaction C
Product, Service, Item
m_attributesetinstance_id numeric 10
m_attributesetinstance.m_attributesetinstance_id masi_ttransaction C
Product Attribute Set Instance
movementdate timestamp 29,6 Date a product was moved in or out of inventory
movementqty numeric 0 0 Quantity of a product moved.
m_inoutline_id numeric 10  √  null
m_inoutline.m_inoutline_id minoutline_ttransaction C
Line on Shipment or Receipt document
m_inout_id numeric 10  √  null Material Shipment Document
m_movementline_id numeric 10  √  null
m_movementline.m_movementline_id mmovementline_ttransaction C
Inventory Move document Line
m_movement_id numeric 10  √  null Movement of Inventory
m_inventoryline_id numeric 10  √  null
m_inventoryline.m_inventoryline_id minventoryline_ttransaction C
Unique line in an Inventory document
m_inventory_id numeric 10  √  null Parameters for a Physical Inventory
m_productionline_id numeric 10  √  null
m_productionline.m_productionline_id mproductionline_ttransaction C
Document Line representing a production
m_production_id numeric 10  √  null Plan for producing a product
c_projectissue_id numeric 10  √  null
c_projectissue.c_projectissue_id cprojectissue_ttransaction C
Project Issues (Material, Labor)
c_project_id numeric 10  √  null Financial Project
search_order_id numeric 10  √  null Order Identifier
search_invoice_id numeric 10  √  null Search Invoice Identifier
search_inout_id numeric 10  √  null Material Shipment Document
t_transaction_uu varchar 36  √  NULL::character varying T_Transaction_UU

Table contained 0 rows at 2021-12-25 14:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_pinstance_id + m_transaction_id Primary key Asc/Asc t_transaction_pkey
t_transaction_uu Must be unique Asc t_transaction_uu_idx

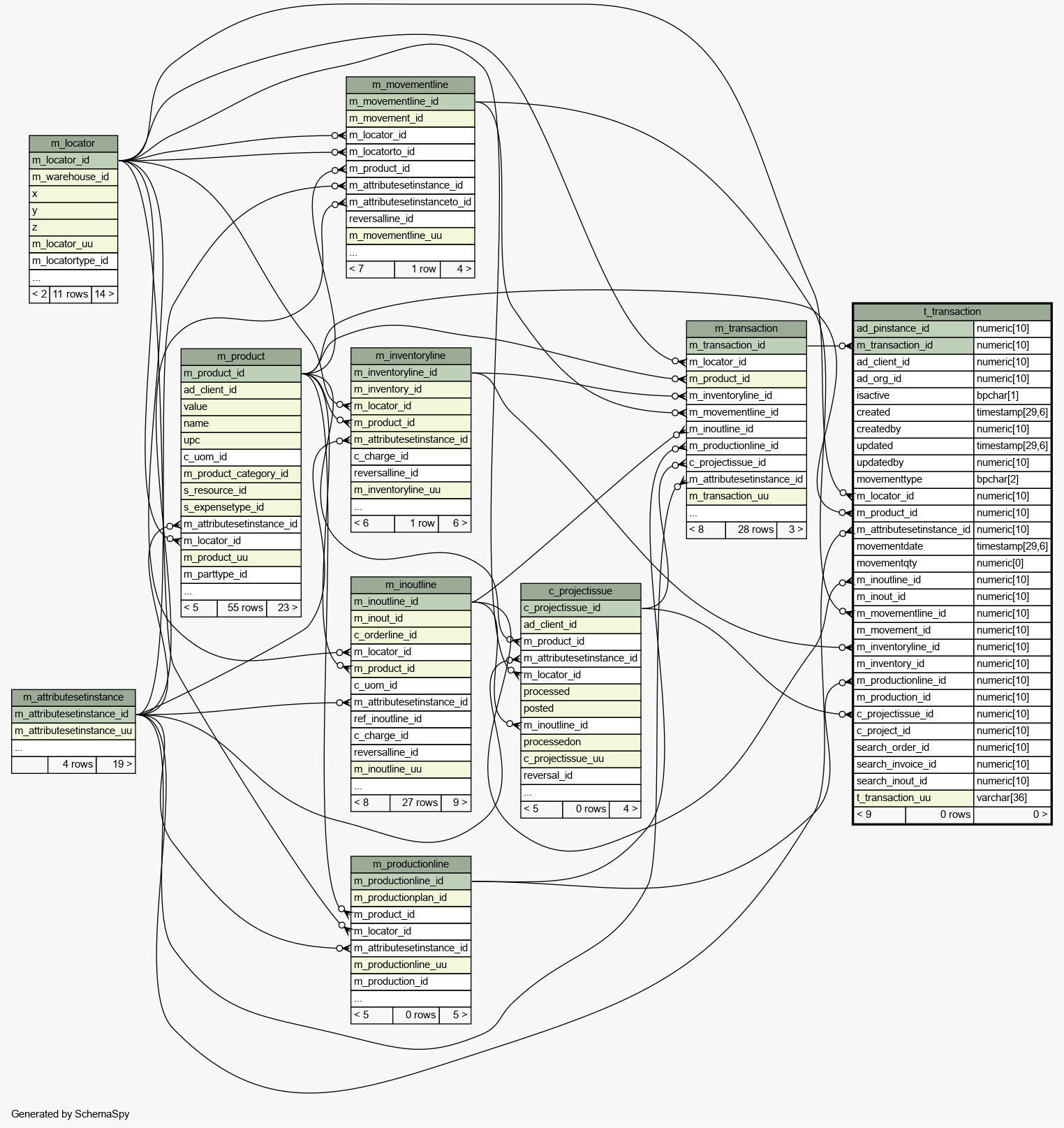

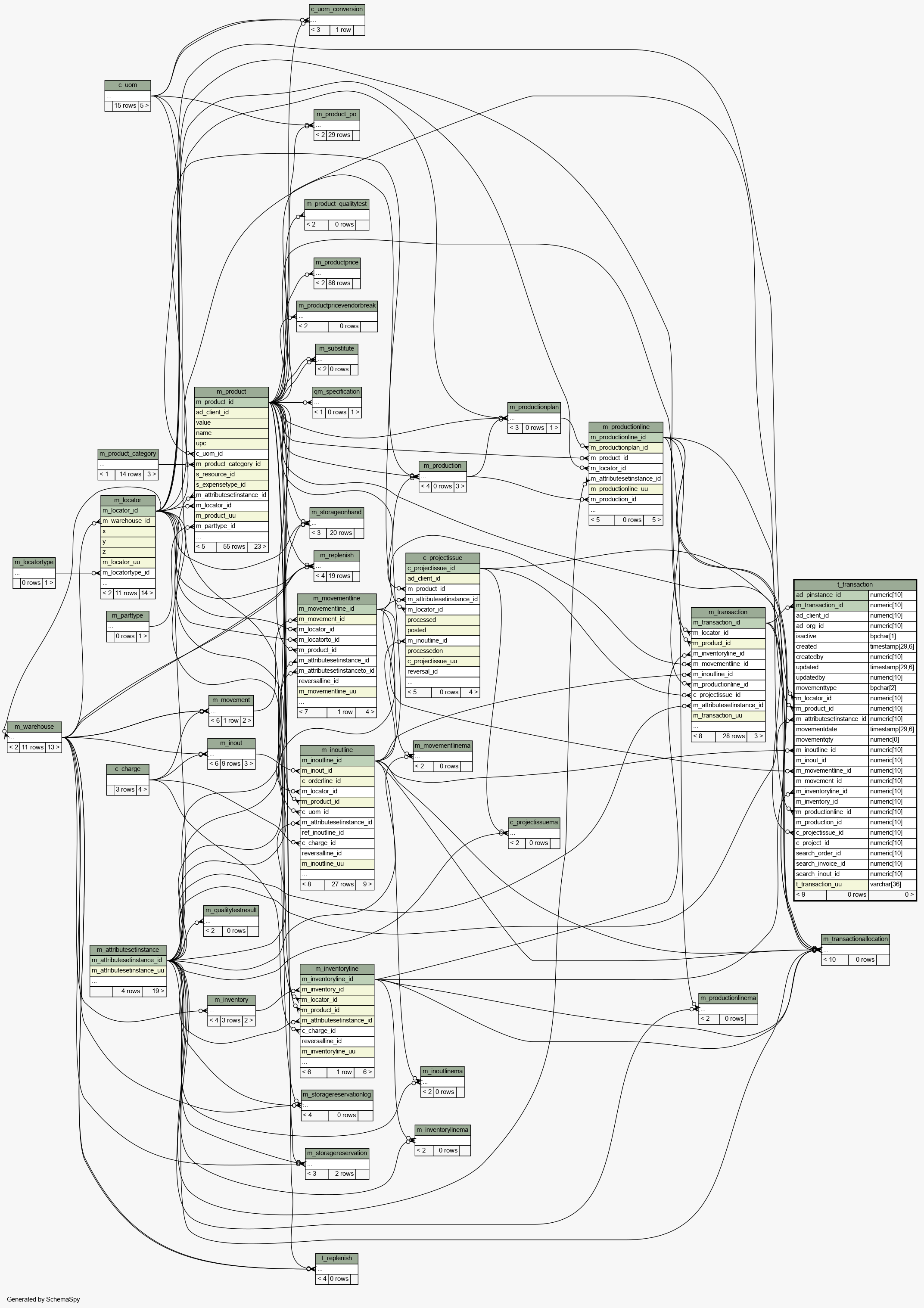

Close relationships  within of separation:
