Table idempiere9.adempiere.qm_specificationline
QM Specification Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
qm_specificationline_id numeric 10 QM Specification Line
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 The record is active in the system
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10  √  null Method of ordering records; lowest number comes first
m_attribute_id numeric 10 Product Attribute
validfrom varchar 22  √  null Valid from including this date (first day)
validto timestamp 29,6  √  null Valid to including this date (last day)
andor bpchar 1 Logical operation: AND or OR
value varchar 40  √  null Search key for the record in the format required - must be unique
operation bpchar 2 Compare Operation
qm_specification_id numeric 10  √  null
qm_specification.qm_specification_id qmspecification_qmspecificatio R
Quality Specification
ad_client_id numeric 10 Client/Tenant for this installation.
qm_specificationline_uu varchar 36  √  NULL::character varying QM_SpecificationLine_UU

Table contained 0 rows at 2021-12-25 14:52 +0100

Indexes:
Column(s) Type Sort Constraint Name
qm_specificationline_id Primary key Asc qm_specificationline_key
qm_specificationline_uu Must be unique Asc qm_specificationline_uu_idx

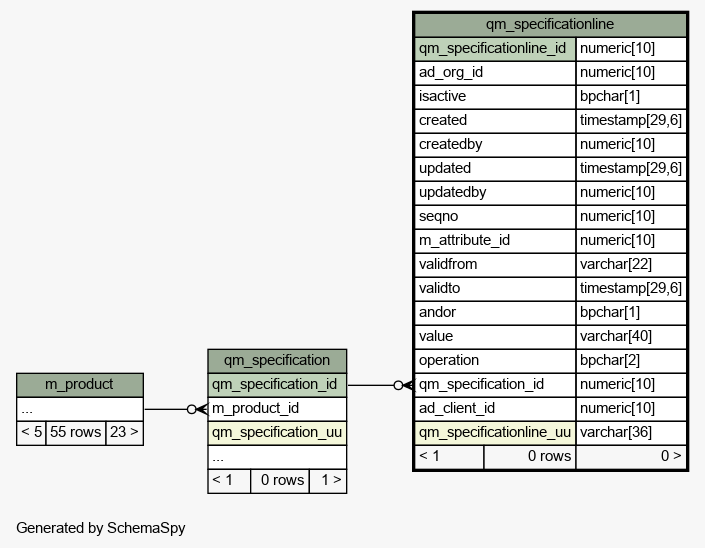

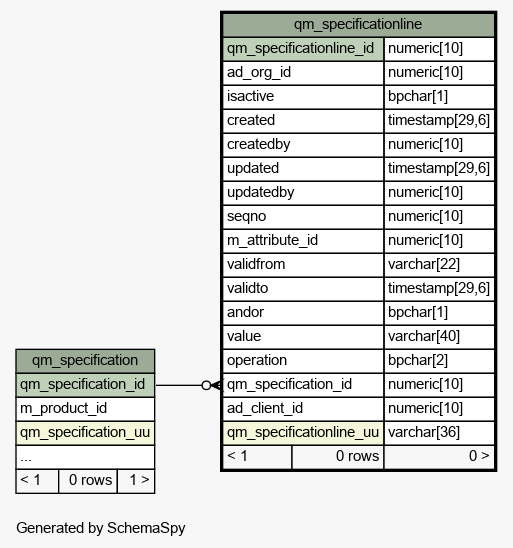

Close relationships  within of separation:
