Table idempiere9.adempiere.c_invoicebatchline
Expense Invoice Batch Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
c_invoicebatchline_id numeric 10 Expense Invoice Batch Line
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10
ad_org.ad_org_id adorg_cinvoicebatchline R
Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
c_invoicebatch_id numeric 10
c_invoicebatch.c_invoicebatch_id cinvoicebatch_cinvoicebline C
Expense Invoice Batch Header
line numeric 10 0 Unique line for this document
c_doctype_id numeric 10 Document type or rules
documentno varchar 30 Document sequence number of the document
dateinvoiced timestamp 29,6 Date printed on Invoice
dateacct timestamp 29,6 Accounting Date
c_bpartner_id numeric 10
c_bpartner.c_bpartner_id cbpartner_cinvoicebatchline R
Identifies a Business Partner
c_bpartner_location_id numeric 10
c_bpartner_location.c_bpartner_location_id cbplocation_cinvoicebline R
Identifies the (ship to) address for this Business Partner
ad_user_id numeric 10  √  null User within the system - Internal or Business Partner Contact
c_charge_id numeric 10
c_charge.c_charge_id ccharge_cinvoicebatchline R
Additional document charges
qtyentered numeric 0 0 The Quantity Entered is based on the selected UoM
priceentered numeric 0 0 Price Entered - the price based on the selected/base UoM
istaxincluded bpchar 1 'N'::bpchar Tax is included in the price
linenetamt numeric 0 0 Line Extended Amount (Quantity * Actual Price) without Freight and Charges
c_tax_id numeric 10
c_tax.c_tax_id ctax_cinvoicebatchline R
Tax identifier
taxamt numeric 0 0 Tax Amount for a document
linetotalamt numeric 0 0 Total line amount incl. Tax
c_project_id numeric 10  √  null
c_project.c_project_id cproject_cinvoicebatchline R
Financial Project
c_activity_id numeric 10  √  null
c_activity.c_activity_id cactivity_cinvoicebatchline R
Business Activity
ad_orgtrx_id numeric 10  √  null
ad_org.ad_org_id adorgtrx_cinvoicebatchline R
Performing or initiating organization
user1_id numeric 10  √  null User defined list element #1
user2_id numeric 10  √  null User defined list element #2
processed bpchar 1 'N'::bpchar The document has been processed
c_invoice_id numeric 10  √  null
c_invoice.c_invoice_id cinvoice_cinvoicebatchline R
Invoice Identifier
c_invoiceline_id numeric 10  √  null
c_invoiceline.c_invoiceline_id cinvoiceline_cinvoicebline R
Invoice Detail Line
description varchar 255  √  null Optional short description of the record
c_invoicebatchline_uu varchar 36  √  NULL::character varying C_InvoiceBatchLine_UU

Table contained 0 rows at 2021-12-25 14:51 +0100

Indexes:
Column(s) Type Sort Constraint Name
c_invoicebatchline_id Primary key Asc c_invoicebatchline_pkey
c_invoicebatchline_uu Must be unique Asc c_invoicebatchline_uu_idx

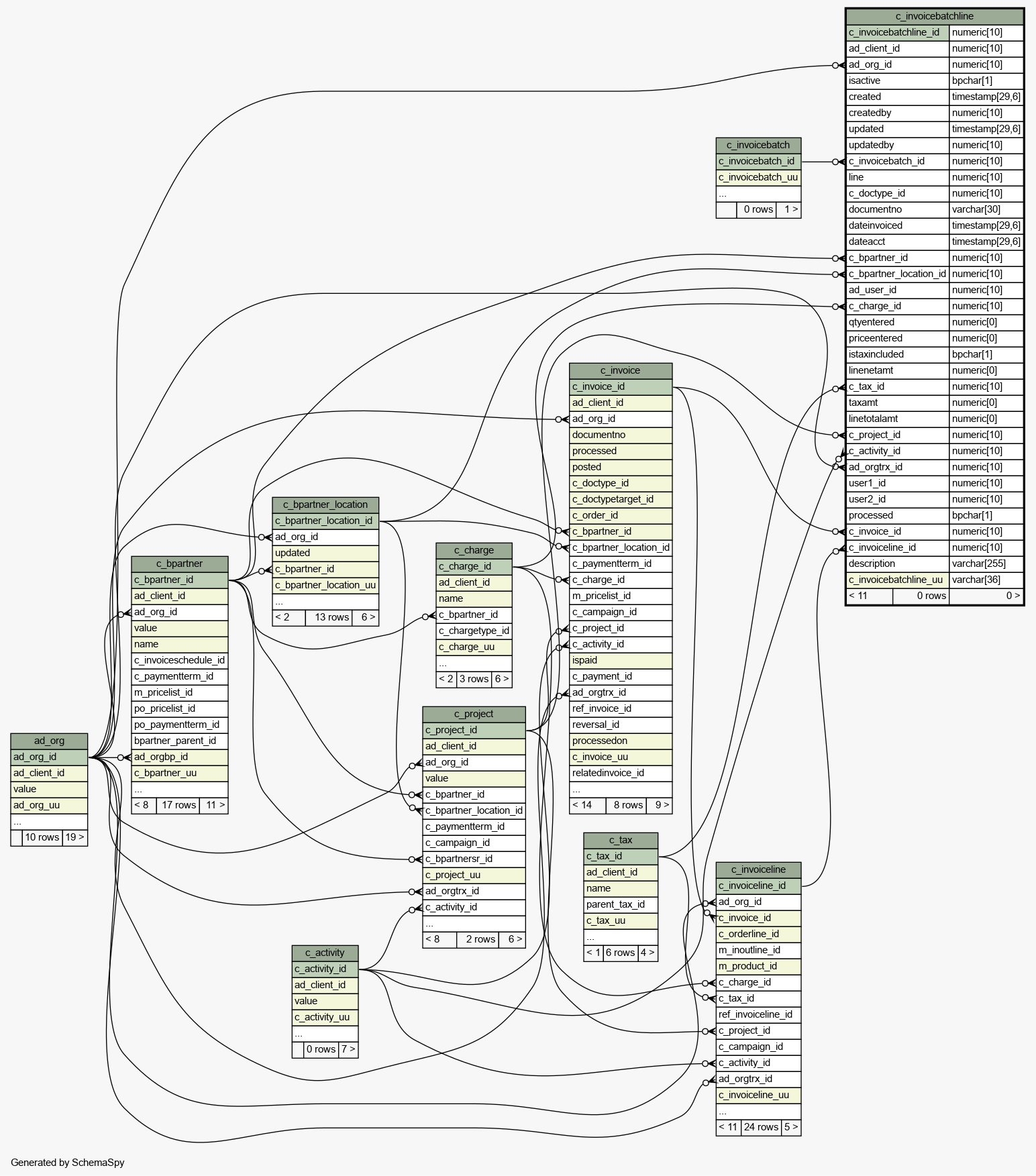

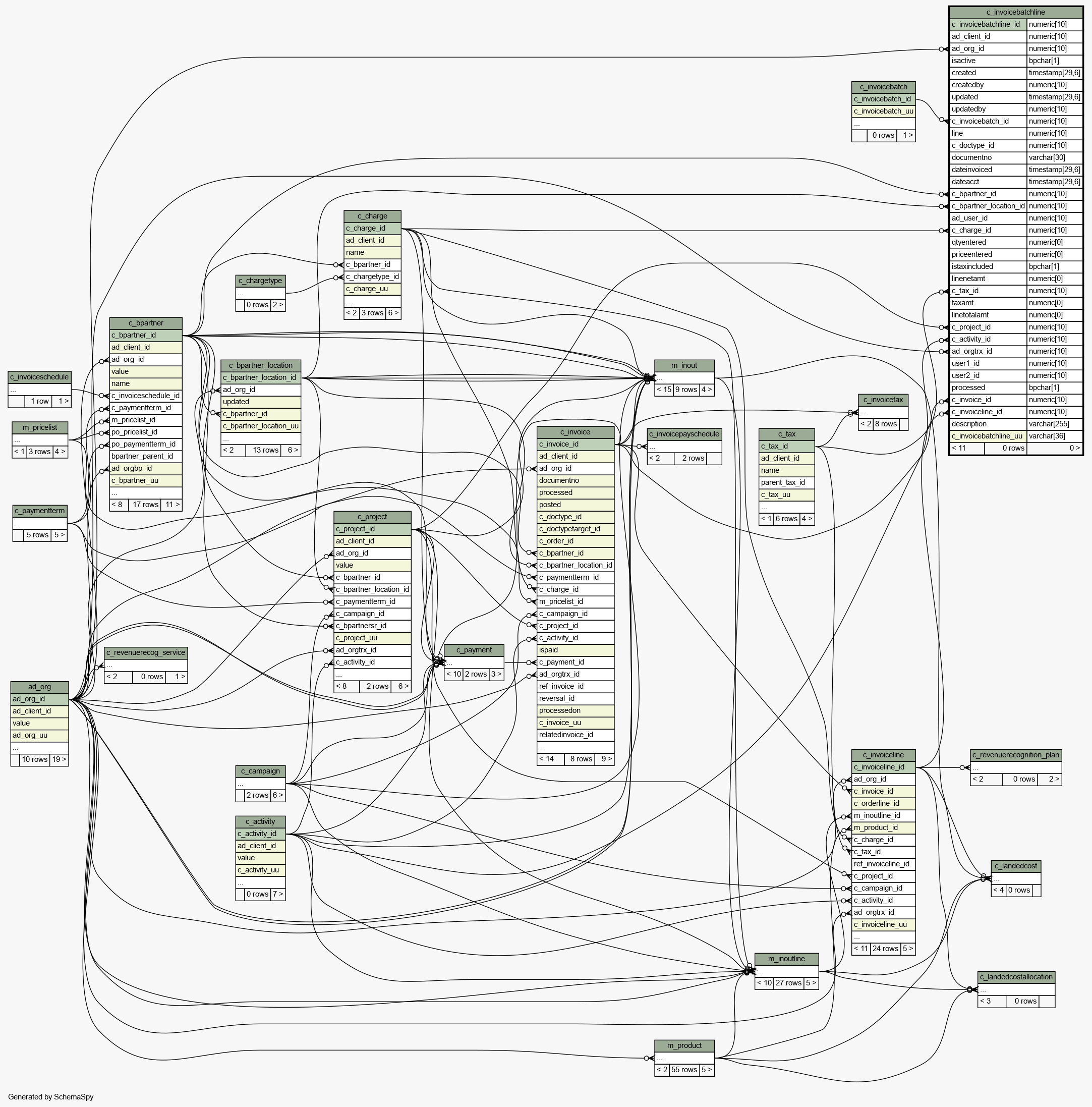

Close relationships  within of separation:
