Table idempiere9.adempiere.r_issuesystem
Issue System

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
r_issuesystem_id numeric 10
ad_issue.r_issuesystem_id rissuesystem_ad_issue R
System creating the issue
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
dbaddress varchar 255 JDBC URL of the database server
statisticsinfo varchar 60  √  null Information to help profiling the system for solving support issues
profileinfo varchar 60  √  null Information to help profiling the system for solving support issues
systemstatus bpchar 1 Status of the system - Support priority depends on system status
a_asset_id numeric 10  √  null
a_asset.a_asset_id aasset_rissuesystem R
Asset used internally or by customers
r_issuesystem_uu varchar 36  √  NULL::character varying R_IssueSystem_UU

Table contained 0 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
r_issuesystem_id Primary key Asc r_issuesystem_pkey
dbaddress Must be unique Asc r_issuesystem_address
r_issuesystem_uu Must be unique Asc r_issuesystem_uu_idx

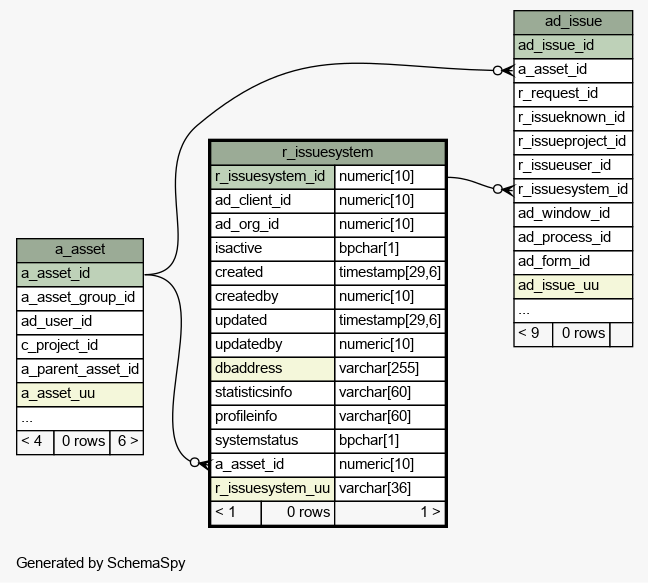

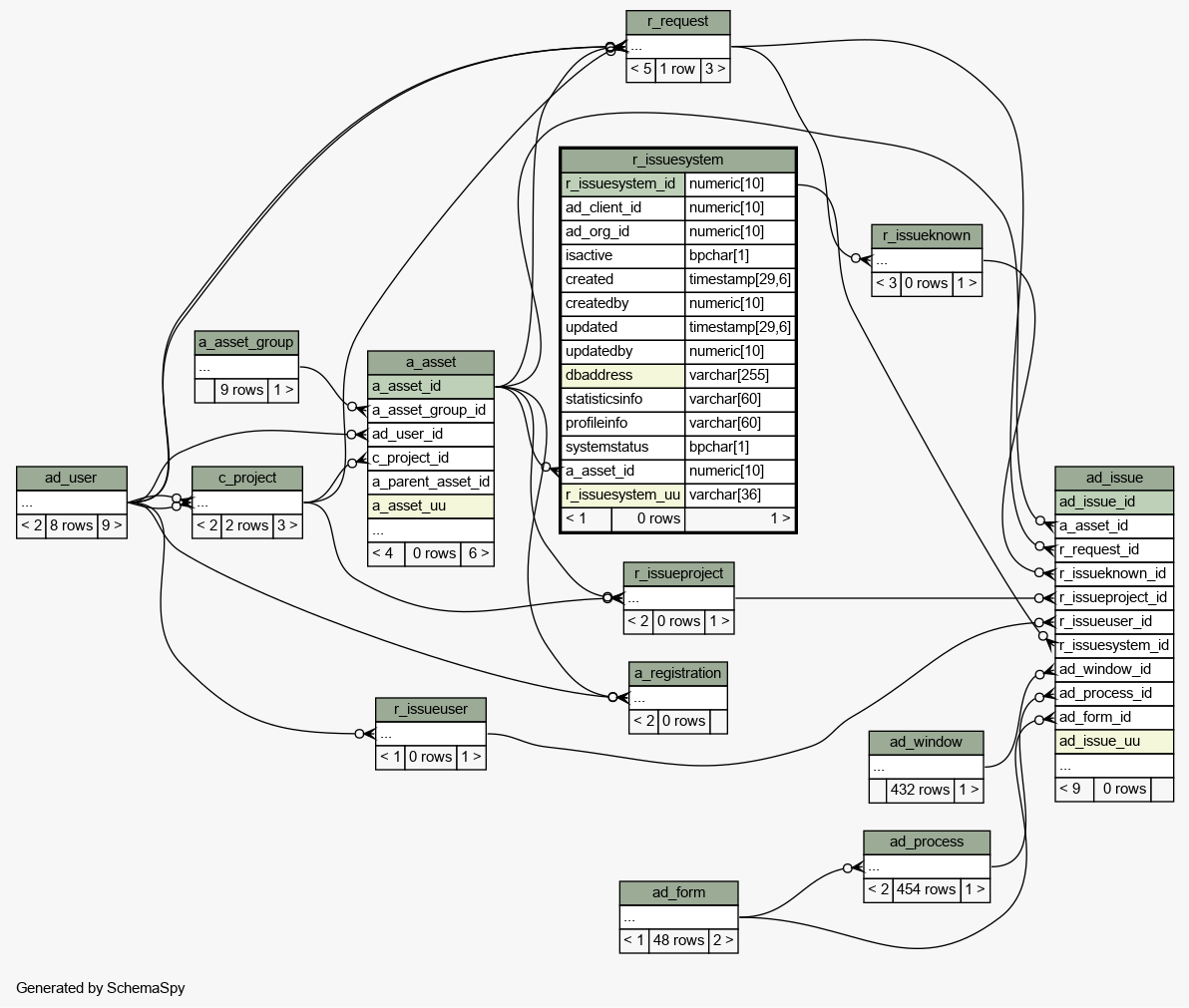

Close relationships  within of separation:
