Table idempiere9.adempiere.r_issueproject
Issue Project

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
r_issueproject_id numeric 10
ad_issue.r_issueproject_id rissueproject_adissue R
Implementation Projects
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
a_asset_id numeric 10  √  null
a_asset.a_asset_id aasset_rissueproject R
Asset used internally or by customers
c_project_id numeric 10  √  null
c_project.c_project_id cproject_rissueproject R
Financial Project
statisticsinfo varchar 60  √  null Information to help profiling the system for solving support issues
profileinfo varchar 60  √  null Information to help profiling the system for solving support issues
systemstatus bpchar 1 Status of the system - Support priority depends on system status
r_issueproject_uu varchar 36  √  NULL::character varying R_IssueProject_UU

Table contained 0 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
r_issueproject_id Primary key Asc r_issueproject_pkey
name Performance Asc r_issueproject_name
r_issueproject_uu Must be unique Asc r_issueproject_uu_idx

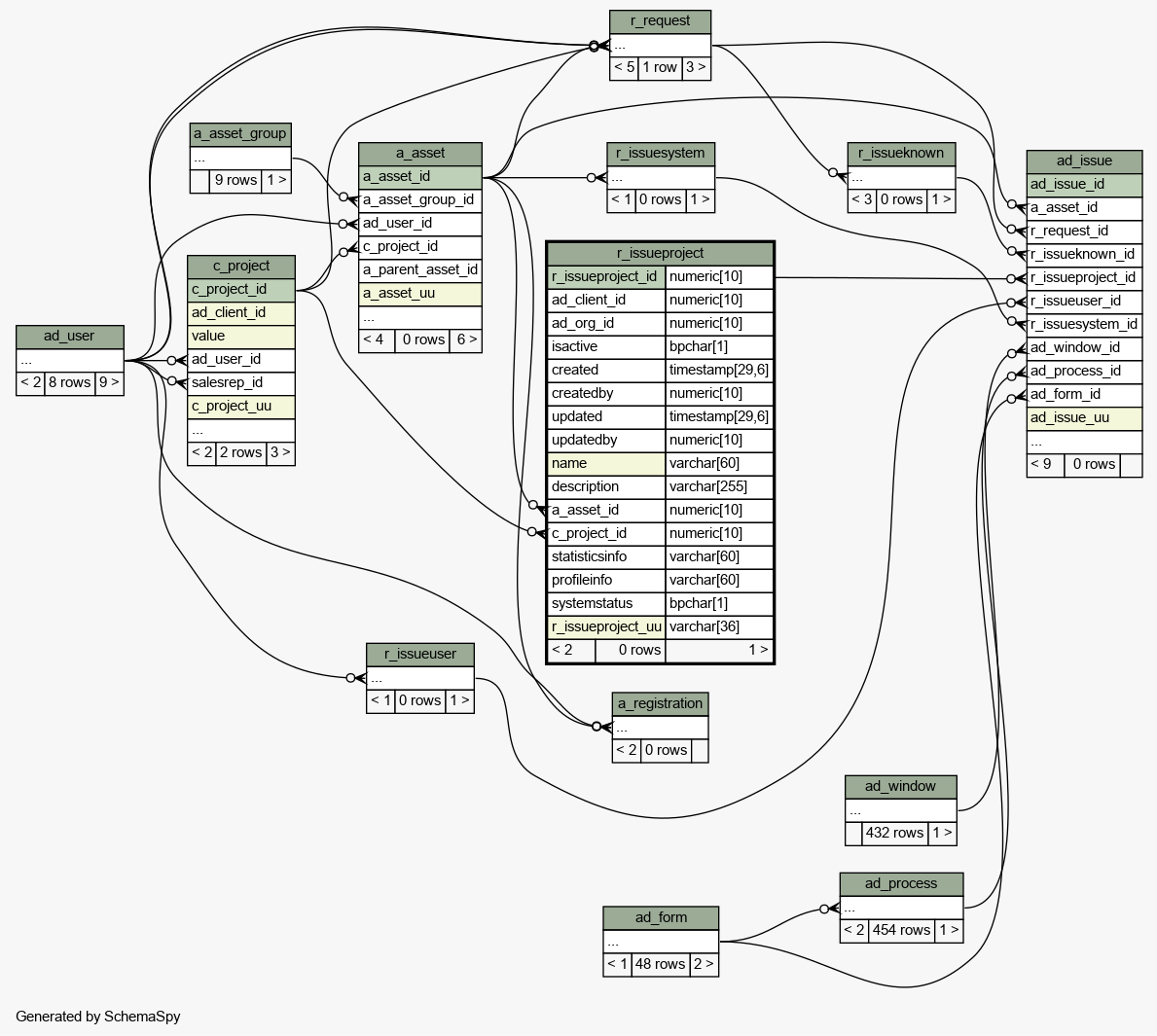

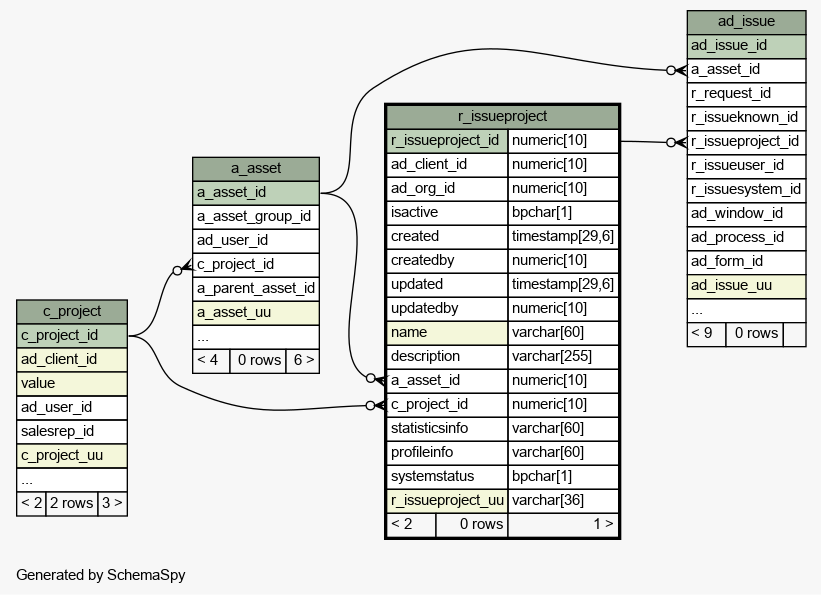

Close relationships  within of separation:
