Table idempiere9.adempiere.gl_journalgeneratorline
Generator Line

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
gl_journalgeneratorline_id numeric 10
gl_journalgeneratorsource.gl_journalgeneratorline_id qssjournalgeneratorline_qssjou R
Generator Line
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  NULL::character varying Optional short description of the record
help varchar 2000  √  NULL::character varying Comment or Hint
isactive bpchar 1 'Y'::bpchar The record is active in the system
gl_journalgenerator_id numeric 10
gl_journalgenerator.gl_journalgenerator_id qssjournalgenerator_qssjournal R
GL Journal Generator
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
seqno numeric 10 Method of ordering records; lowest number comes first
c_elementvaluedr_id numeric 10  √  NULL::numeric Account DR
c_elementvaluecr_id numeric 10  √  NULL::numeric Account CR
bpdimensiontype bpchar 1  √  NULL::bpchar Type of BP Dimension
c_bpartner_id numeric 10  √  NULL::numeric Identifies a Business Partner
bpcolumn varchar 100  √  NULL::character varying BP Column
iscopyalldimensions bpchar 1 'N'::bpchar Copy All Dimensions
issameproduct bpchar 1 'N'::bpchar Same Product
amtmultiplier numeric 0  √  (1)::numeric Multiplier Amount for generating commissions
roundfactor numeric 10  √  (0)::numeric Round Factor
gl_journalgeneratorline_uu varchar 36  √  NULL::character varying GL_JournalGeneratorLine_UU

Table contained 6 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
gl_journalgeneratorline_id Primary key Asc gl_journalgeneratorline_key
gl_journalgeneratorline_uu Must be unique Asc gl_journalgeneratorline_uu_idx

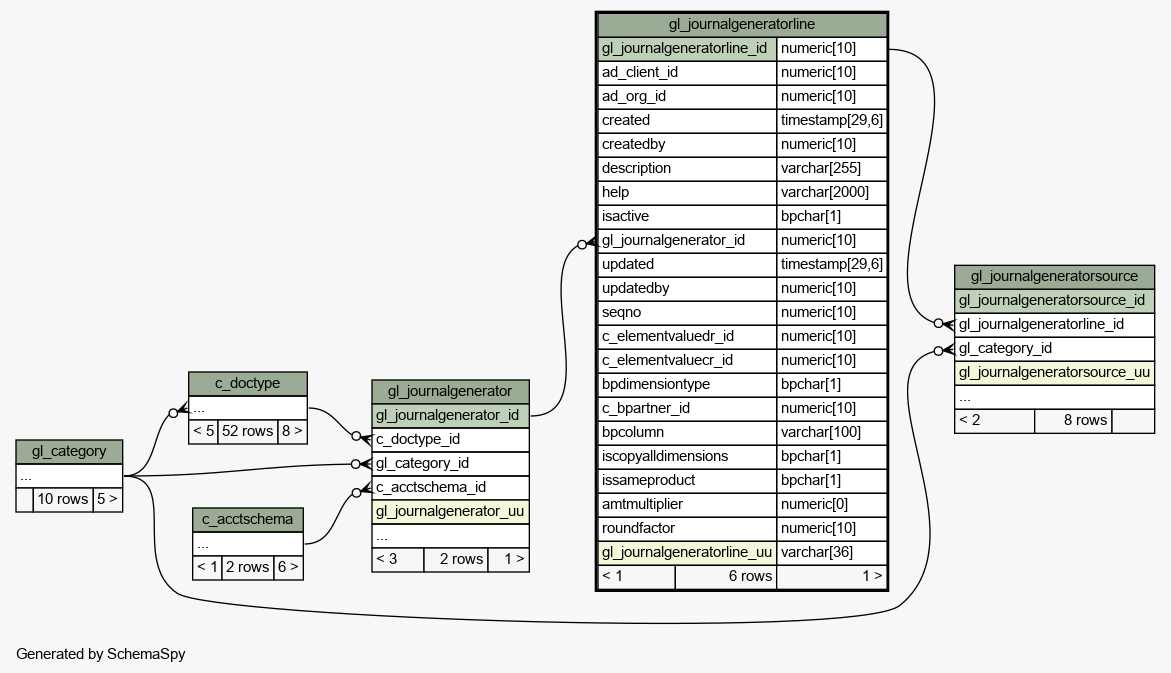

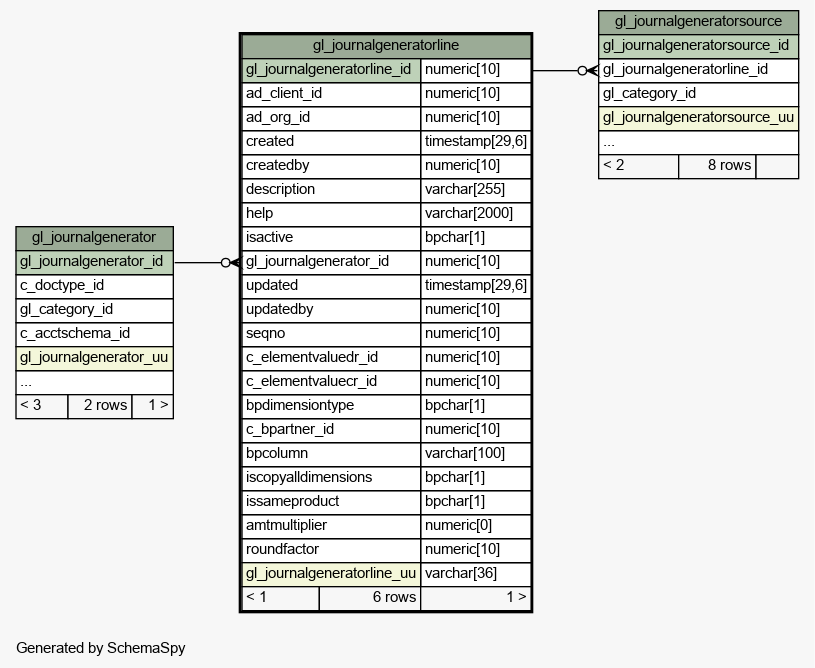

Close relationships  within of separation:
