Table idempiere9.adempiere.gl_budget
General Ledger Budget

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
gl_budget_id numeric 10
gl_budgetcontrol.gl_budget_id glbudget_glbudgetcontrol R
gl_journal.gl_budget_id glbudget_gljournal R
General Ledger Budget
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
isprimary bpchar 1 'Y'::bpchar Indicates if this is the primary budget
budgetstatus bpchar 1  √  null Indicates the current status of this budget
gl_budget_uu varchar 36  √  NULL::character varying GL_Budget_UU

Table contained 1 rows at 2021-12-25 14:48 +0100

Indexes:
Column(s) Type Sort Constraint Name
gl_budget_id Primary key Asc gl_budget_pkey
ad_client_id + name Must be unique Asc/Asc gl_budget_name
gl_budget_uu Must be unique Asc gl_budget_uu_idx

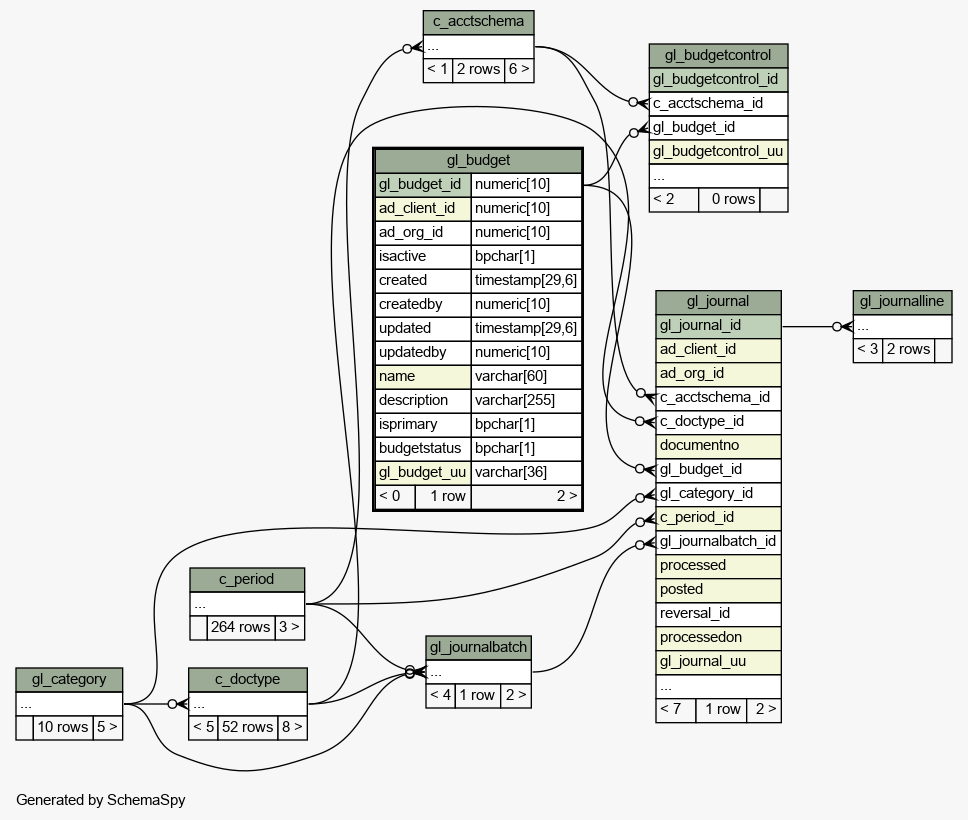

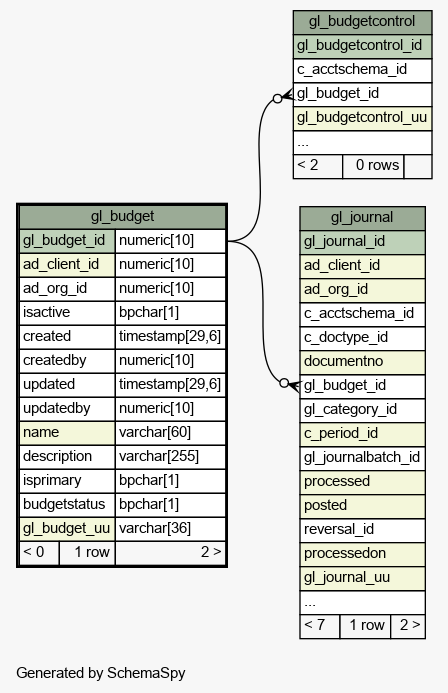

Close relationships  within of separation:
