Table idempiere9.adempiere.ad_replicationdocument
Replication Document

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_replicationdocument_id numeric 10 Replication Document
ad_replicationstrategy_id numeric 10 Data Replication Strategy
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
description varchar 255  √  null Optional short description of the record
c_doctype_id numeric 10
c_doctype.c_doctype_id cdoctype_adreplicationdocument R
Document type or rules
replicationtype bpchar 1 Type of Data Replication
ad_table_id numeric 10
ad_table.ad_table_id adtable_adreplicationdocument R
Database Table information
ad_replicationdocument_uu varchar 36  √  NULL::character varying AD_ReplicationDocument_UU

Table contained 1 rows at 2021-12-25 14:47 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_replicationdocument_id Primary key Asc ad_replicationdocument_key
ad_replicationdocument_uu Must be unique Asc ad_replicationdocument_uu_idx

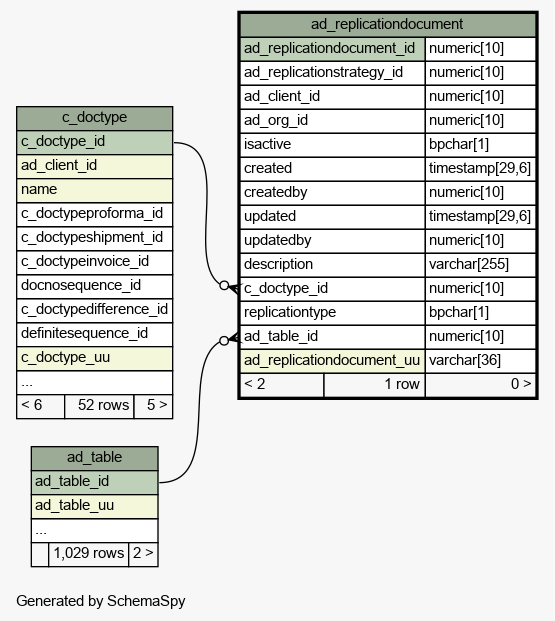

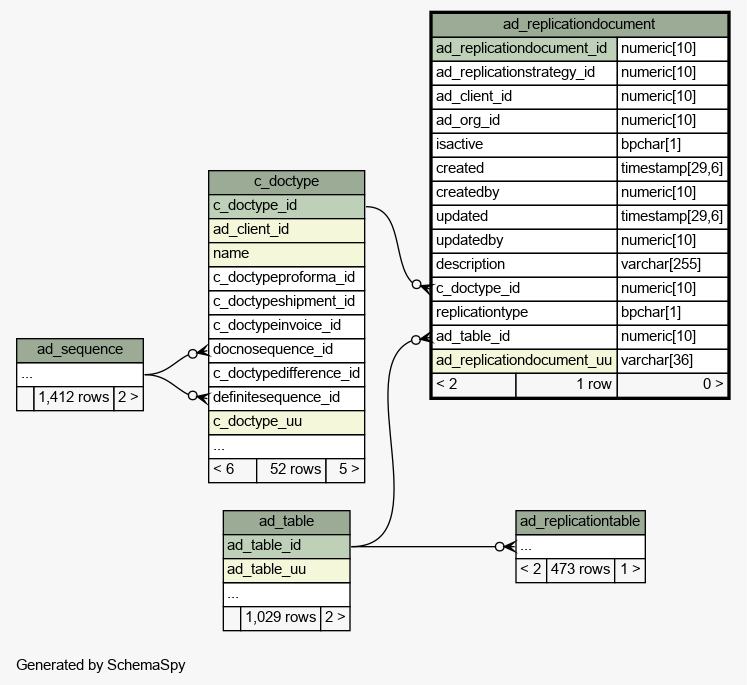

Close relationships  within of separation:
