Table idempiere9.adempiere.ad_replication_log
Data Replication Log Details

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_replication_log_id numeric 10 Data Replication Log Details
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_replication_run_id numeric 10
ad_replication_run.ad_replication_run_id adreplicationrun_adreplog C
Data Replication Run
ad_replicationtable_id numeric 10  √  null
ad_replicationtable.ad_replicationtable_id adreptable_adreplog N
Data Replication Strategy Table Info
p_msg varchar 2000  √  null Process Message
isreplicated bpchar 1 'N'::bpchar The data is successfully replicated
ad_replication_log_uu varchar 36  √  NULL::character varying AD_Replication_Log_UU

Table contained 0 rows at 2021-12-25 14:47 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_replication_log_id Primary key Asc ad_replication_log_pkey
ad_replication_log_uu Must be unique Asc ad_replication_log_uu_idx

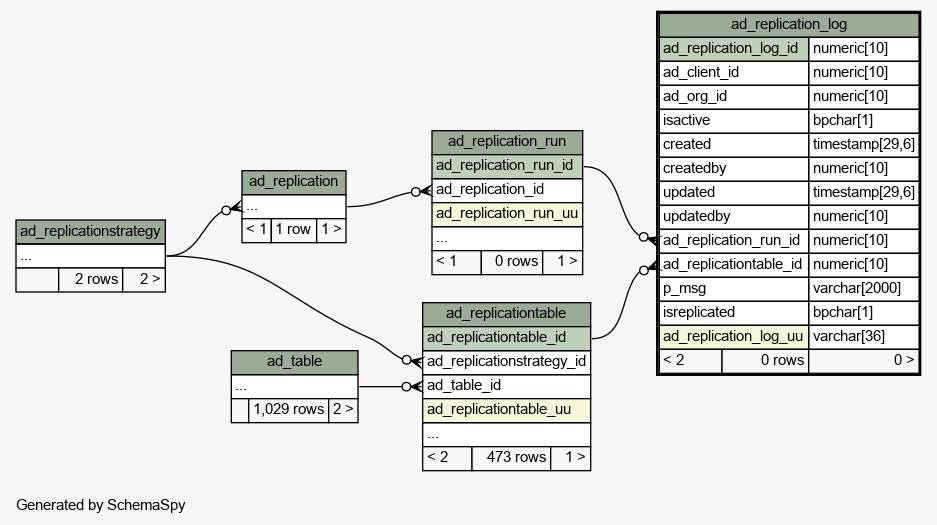

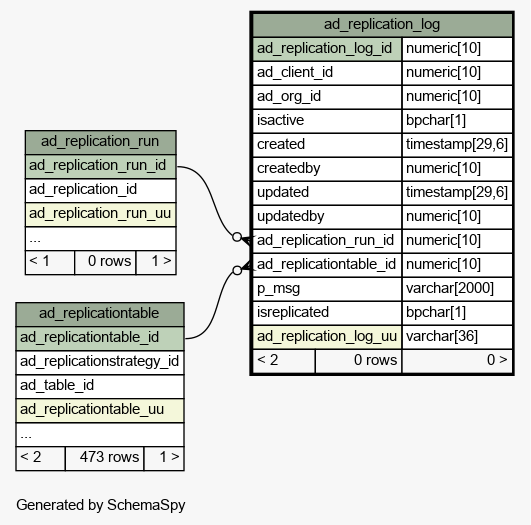

Close relationships  within of separation:
