Table idempiere9.adempiere.m_costtype
Type of Cost

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_costtype_id numeric 10
c_acctschema.m_costtype_id mcosttype_cacctschema R
m_cost.m_costtype_id mcosttype_mcost C
m_costhistory.m_costtype_id mcosttype_mcosthistory R
m_costqueue.m_costtype_id mcosttype_mcostqueue C
Type of Cost (e.g. Current, Plan, Future)
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
name varchar 60 Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
m_costtype_uu varchar 36  √  NULL::character varying M_CostType_UU

Table contained 1 rows at 2021-12-25 14:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
m_costtype_id Primary key Asc m_costtype_pkey
m_costtype_uu Must be unique Asc m_costtype_uu_idx

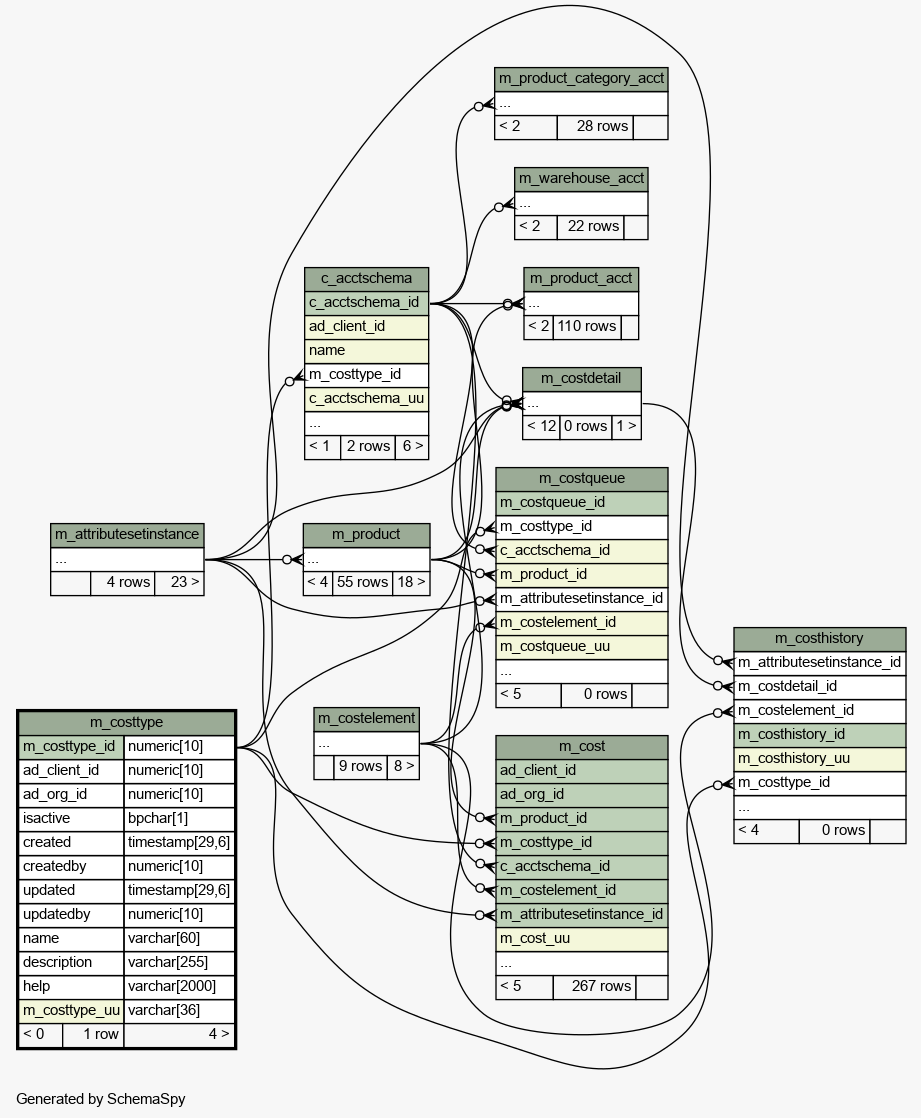

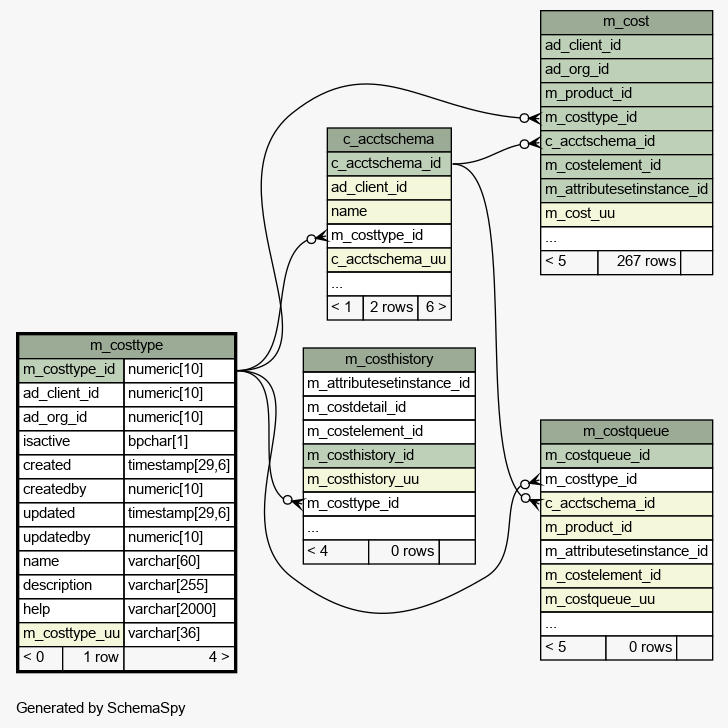

Close relationships  within of separation:
