Table idempiere9.adempiere.cm_chat
Chat

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
cm_chat_id numeric 10
cm_chatentry.cm_chat_id cmchat_chchatentry C
cm_chatupdate.cm_chat_id cmchat_cmchatupdate C
Chat or discussion thread
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
description varchar 255 Optional short description of the record
ad_table_id numeric 10
ad_table.ad_table_id adtable_cmchat C
Database Table information
record_id numeric 10 Direct internal record ID
confidentialtype bpchar 1 Type of Confidentiality
cm_chattype_id numeric 10  √  null
cm_chattype.cm_chattype_id cmchattype_cmchat N
Type of discussion / chat
moderationtype bpchar 1  √  null Type of moderation
cm_chat_uu varchar 36  √  NULL::character varying CM_Chat_UU

Table contained 0 rows at 2021-12-25 14:46 +0100

Indexes:
Column(s) Type Sort Constraint Name
cm_chat_id Primary key Asc cm_chat_pkey
ad_table_id + record_id Must be unique Asc/Asc cm_chat_record
cm_chat_uu Must be unique Asc cm_chat_uu_idx

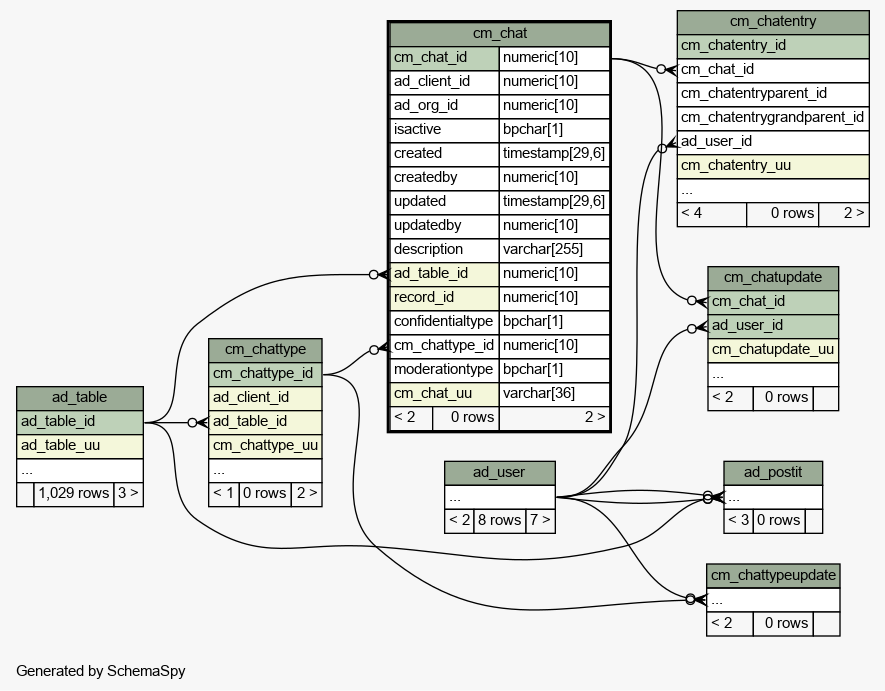

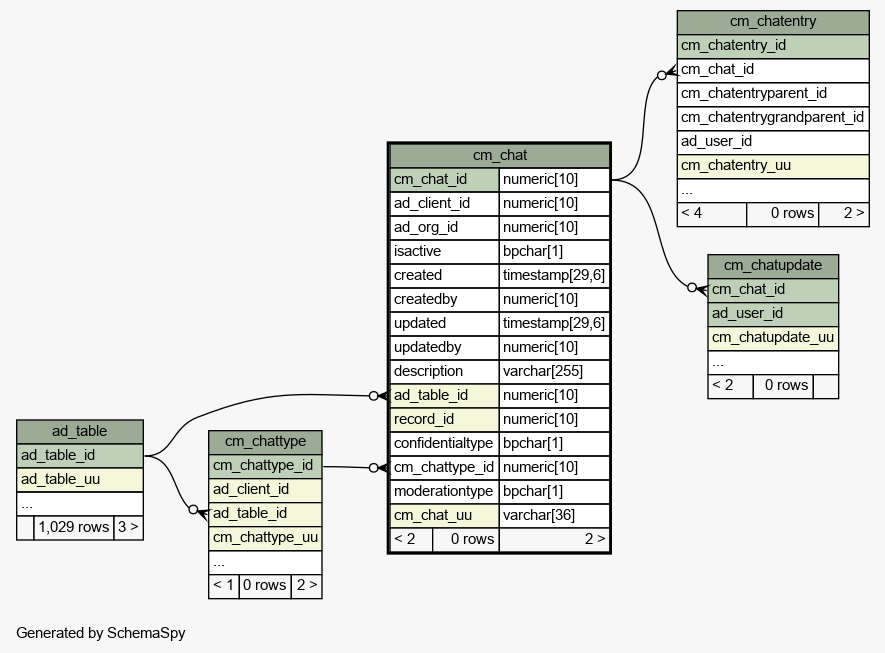

Close relationships  within of separation:
