Table idempiere9.adempiere.ad_userdef_tab
User defined Tab

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_userdef_tab_id numeric 10
ad_userdef_field.ad_userdef_tab_id aduserdeftab_aduserdeffield R
User defined Tab
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
isactive bpchar 1 'Y'::bpchar The record is active in the system
created timestamp 29,6 now() Date this record was created
createdby numeric 10 User who created this records
updated timestamp 29,6 now() Date this record was updated
updatedby numeric 10 User who updated this records
ad_userdef_win_id numeric 10
ad_userdef_win.ad_userdef_win_id aduserdefwin_aduserdeftab R
User defined Window
ad_tab_id numeric 10
ad_tab.ad_tab_id adtab_aduserdeftab R
Tab within a Window
ismultirowonly bpchar 1 'N'::bpchar This applies to Multi-Row view only
name varchar 60  √  null Alphanumeric identifier of the entity
description varchar 255  √  null Optional short description of the record
help varchar 2000  √  null Comment or Hint
isreadonly bpchar 1  √  null Field is read only
issinglerow bpchar 1  √  null Default for toggle between Single- and Multi-Row (Grid) Layout
ad_userdef_tab_uu varchar 36  √  NULL::character varying AD_UserDef_Tab_UU
readonlylogic varchar 2000  √  NULL::character varying Logic to determine if field is read only (applies only when field is read-write)
whereclause varchar 2000  √  NULL::character varying Fully qualified SQL WHERE clause
orderbyclause varchar 2000  √  NULL::character varying Fully qualified ORDER BY clause
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
ad_process_id numeric 10  √  NULL::numeric
ad_process.ad_process_id adprocess_aduserdeftab R
Process or Report
displaylogic varchar 2000  √  NULL::character varying If the Field is displayed, the result determines if the field is actually displayed
islookuponlyselection bpchar 1  √  NULL::bpchar When defined to true Lookup panel will display only selection columns. Default to false.
isallowadvancedlookup bpchar 1  √  NULL::bpchar Allow Advanced Lookup

Table contained 0 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_userdef_tab_id Primary key Asc ad_userdef_tab_pkey
ad_userdef_win_id + ad_tab_id Must be unique Asc/Asc ad_userdef_tab_unique
ad_userdef_tab_uu Must be unique Asc ad_userdef_tab_uu_idx

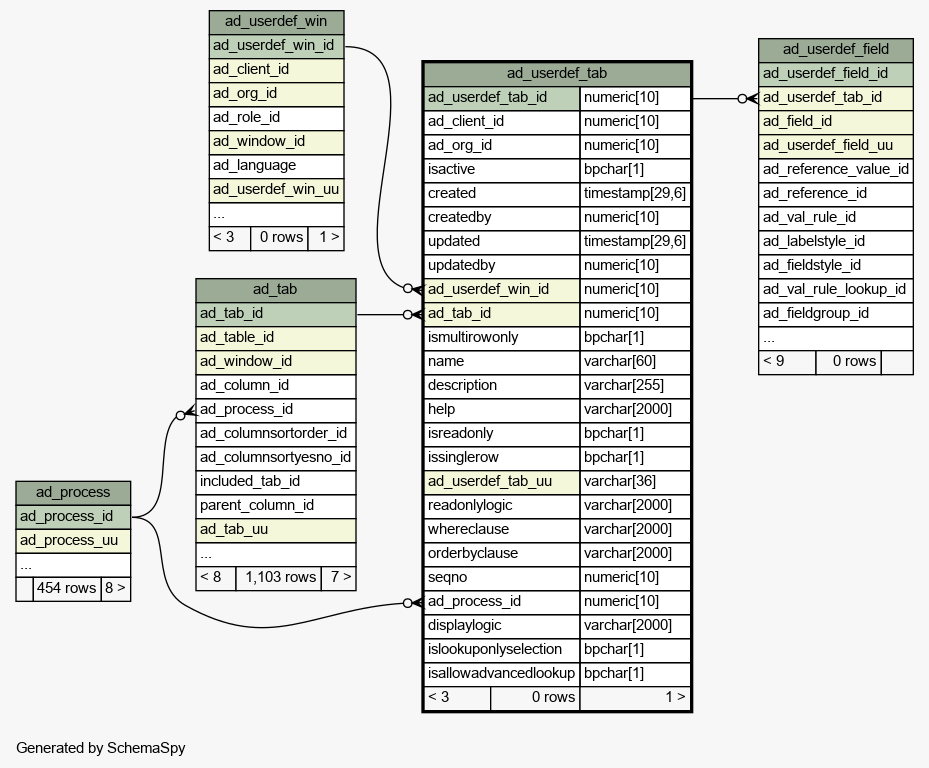

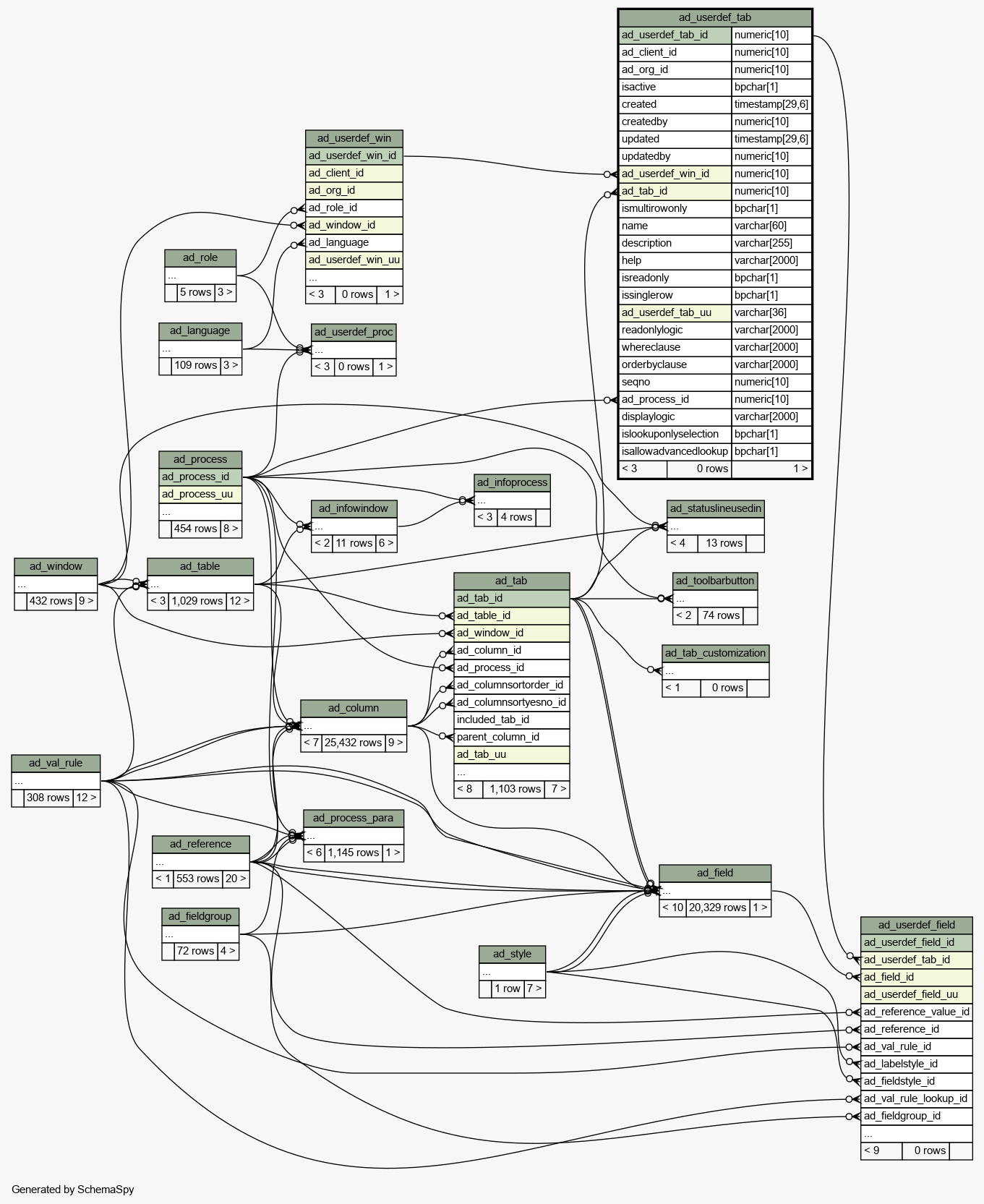

Close relationships  within of separation:
