Table idempiere9.adempiere.ad_statuslineusedin
AD_StatusLineUsedIn

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_statuslineusedin_id numeric 10 AD_StatusLineUsedIn
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_statuslineusedin_uu varchar 36  √  NULL::character varying AD_StatusLineUsedIn_UU
ad_statusline_id numeric 10
ad_statusline.ad_statusline_id adstatusline_adstatuslineusedi R
Status Line
created timestamp 29,6 Date this record was created
createdby numeric 10 User who created this records
isactive bpchar 1 'Y'::bpchar The record is active in the system
updated timestamp 29,6 Date this record was updated
updatedby numeric 10 User who updated this records
ad_window_id numeric 10  √  NULL::numeric
ad_window.ad_window_id adwindow_adstatuslineusedin R
Data entry or display window
ad_tab_id numeric 10  √  NULL::numeric
ad_tab.ad_tab_id adtab_adstatuslineusedin R
Tab within a Window
isstatusline bpchar 1 'Y'::bpchar Defines if this record refers to a status line or to a help widget
seqno numeric 10  √  NULL::numeric Method of ordering records; lowest number comes first
ad_table_id numeric 10  √  NULL::numeric
ad_table.ad_table_id adtable_adstatuslineusedin R
Database Table information
entitytype varchar 40  √  'U'::character varying Dictionary Entity Type; Determines ownership and synchronization

Table contained 13 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_statuslineusedin_id Primary key Asc ad_statuslineusedin_key
ad_statuslineusedin_uu Must be unique Asc ad_statuslineusedin_uu_idx

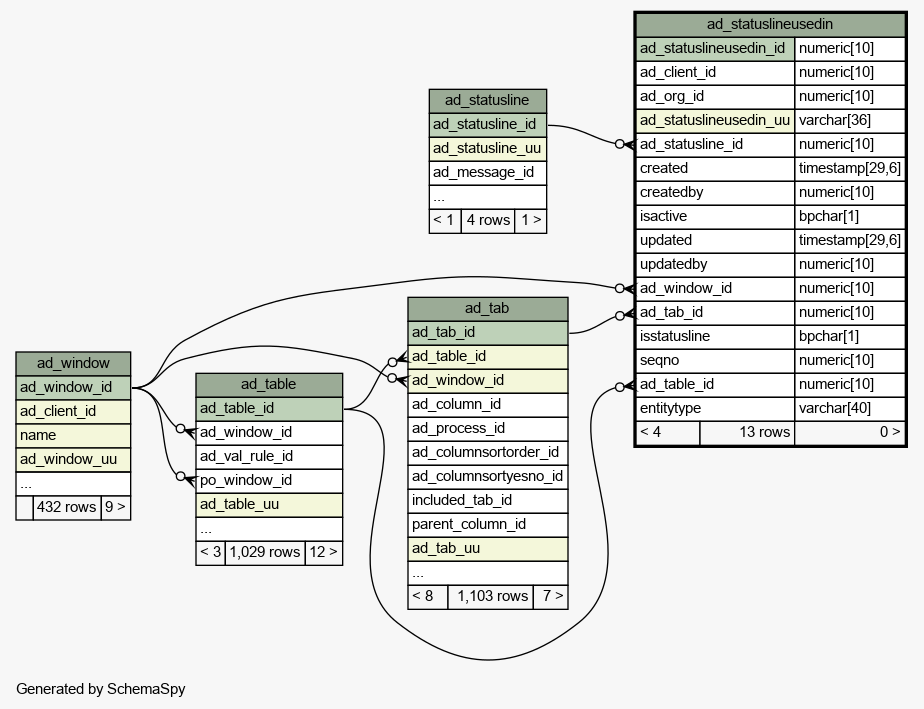

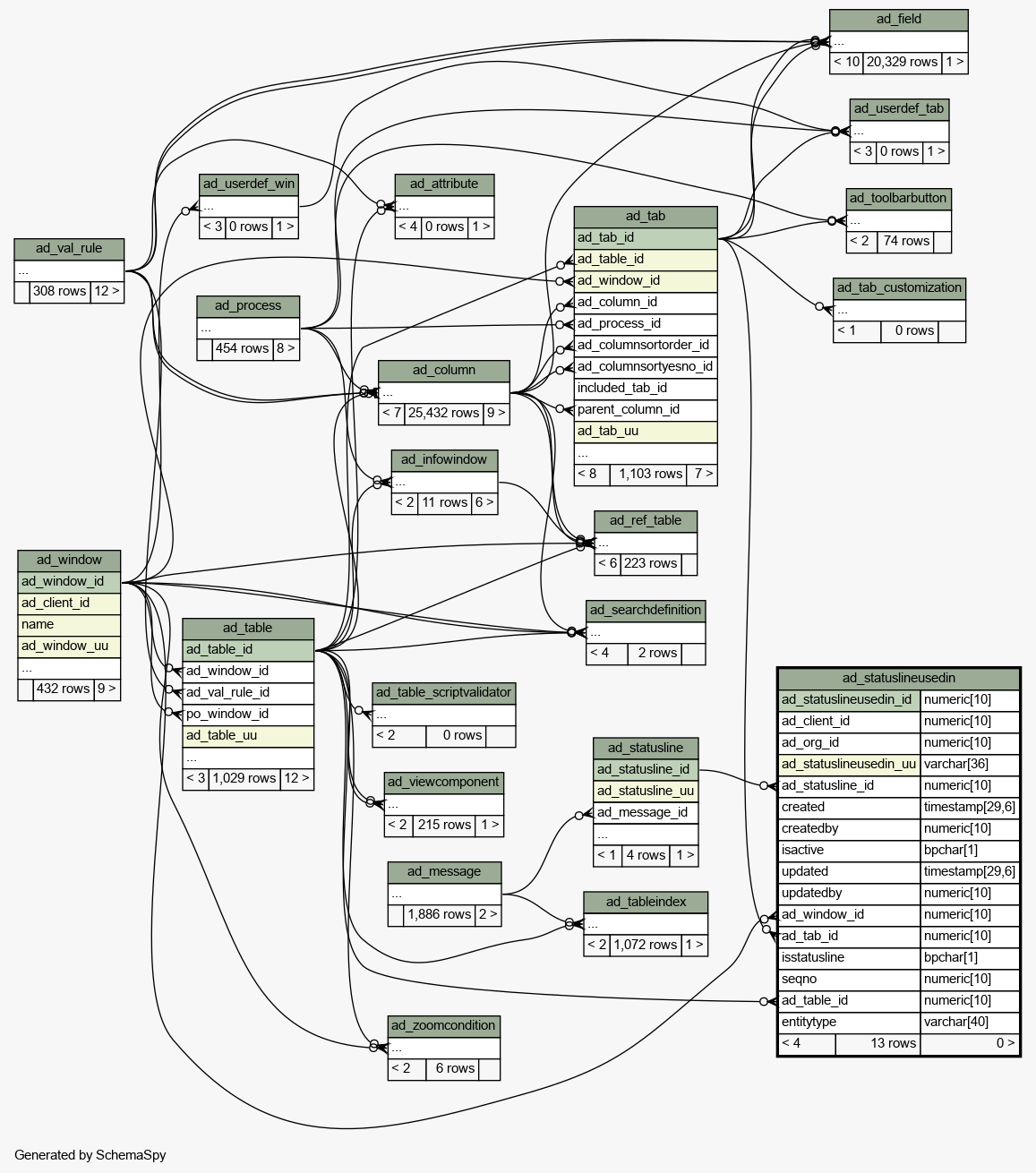

Close relationships  within of separation:
