Table idempiere9.adempiere.ad_rule
Rule

 Generated by
Quality Systems & Solutions
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ad_client_id numeric 10 Client/Tenant for this installation.
ad_org_id numeric 10 Organizational entity within client
ad_rule_id numeric 10
ad_table_scriptvalidator.ad_rule_id adrule_adtablescriptvalidator R
Rule
accesslevel bpchar 1  √  null Access Level required
created timestamp 29,6 statement_timestamp() Date this record was created
createdby numeric 10 User who created this records
description varchar 255  √  null Optional short description of the record
entitytype varchar 40  √  'U'::character varying Dictionary Entity Type; Determines ownership and synchronization
eventtype bpchar 1  √  null Type of Event
help varchar 2000  √  null Comment or Hint
isactive bpchar 1 'Y'::bpchar The record is active in the system
name varchar 60 Alphanumeric identifier of the entity
ruletype bpchar 1  √  null Rule Type
script varchar 4000  √  null Dynamic Java Language Script to calculate result
updated timestamp 29,6 statement_timestamp() Date this record was updated
updatedby numeric 10 User who updated this records
value varchar 40 Search key for the record in the format required - must be unique
ad_rule_uu varchar 36  √  NULL::character varying AD_Rule_UU

Table contained 4 rows at 2021-12-25 14:45 +0100

Indexes:
Column(s) Type Sort Constraint Name
ad_rule_id Primary key Asc ad_rule_key
ad_rule_uu Must be unique Asc ad_rule_uu_idx

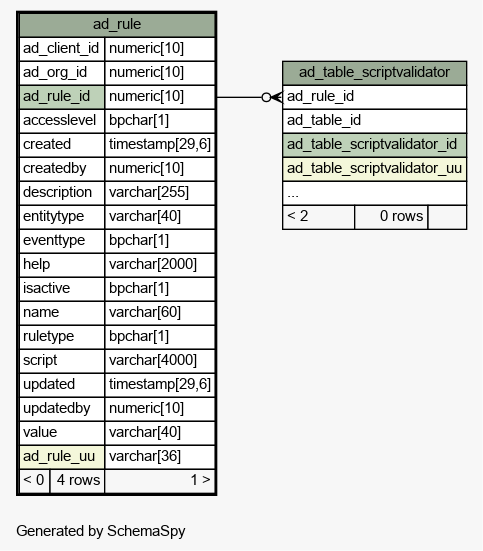

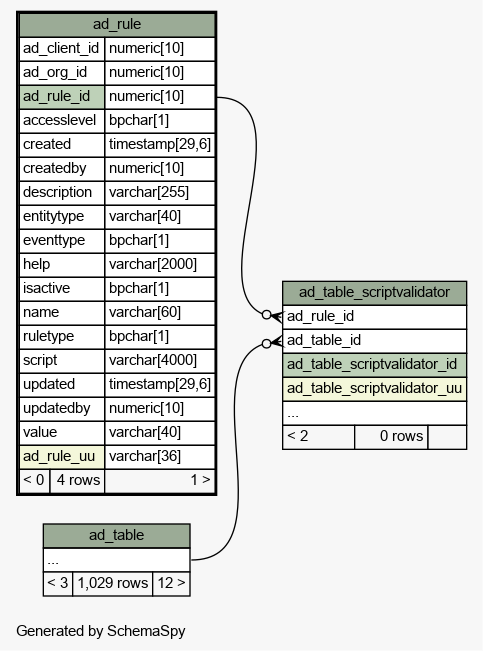

Close relationships  within of separation:
